User Manual for BEGA 24913K3 Ceiling and Wall Luminaire
Quick guide for the BEGA 24913K3 ceiling and wall luminaire. Includes installation instructions, maintenance tips, technical specifications, and safety guidelines.
Quick answers from the manual
Quick answer
- The BEGA 24913K3 is an IP65-rated ceiling and wall luminaire. Installation must be performed by a qualified electrician, and it is critical to insert the provided desiccant pouch inside the luminaire before closing it to ensure longevity. p. 1, 2
Key actions
- Installation p. 2
- Maintenance p. 2
First start
- Installation steps p. 2
Show 3 more answers Show less
Maintenance and reset
- Cleaning p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 220-240 V | Operating voltage | p. 1 |
| Power | 6.8 W | Luminaire connected wattage | p. 1 |
| Protection | IP 65 | Dust-tight and protection against water jets | p. 1 |
Where to find it in the PDF
- Product Overview and Specs p. 1
- Installation and Maintenance p. 2
- Replacement and Spares p. 3
Table of contents
Quick Guide
The BEGA 24913K3 is a high-protection ceiling and wall luminaire designed for both interior and exterior use. Important: Installation and commissioning must be performed by a qualified electrician in accordance with national safety regulations. Ensure the desiccant pouch is inserted during installation to guarantee maximum service life.
Product Description
This luminaire is constructed from die-cast aluminum and stainless steel with BEGA Unidure coating. It features a BEGA NeoGlass impact-resistant synthetic diffuser. The unit is dust-tight and protected against water jets (IP 65).
Installation
Follow these steps for proper installation:
- Undo the screws and remove the luminaire top and polycarbonate diffuser with the gasket.
- Lead the mains supply cable through the cable entry of the luminaire base.
- For wall installation, ensure the luminaire is positioned with the "arrow down" mark.
- Fix the luminaire base to the mounting surface using the provided or suitable fixing material. Ensure the gasket rings are used.
- Make the earth conductor connection and the electrical connection.
- Crucial: Remove the desiccant pouch from its foil packaging and place it in the position marked by the red information label immediately before closing the luminaire.
- Ensure the gasket is positioned correctly, then reattach the polycarbonate diffuser and luminaire top. Tighten the screws evenly.
Maintenance
Clean the luminaire regularly with a clean, soft, lint-free cloth that is kept damp. Use water with a little commercial dishwashing detergent if necessary. For lacquered surfaces, the BEGA Lacquer Care Set 71 179 is recommended. Do not use cleaning agents containing solvents or high-pressure cleaners.
Replacing the LED Module
The LED module can be replaced by qualified persons using standard tools. Disconnect the system from the power supply before opening the luminaire. Follow the installation instructions provided with the LED module. Inspect and replace gaskets if necessary. A defective glass cover must be replaced.
Technical Specifications
- Voltage: 220-240 V, 0/50-60 Hz
- Luminaire Connected Wattage: 6.8 W
- Module Connected Wattage: 5.8 W
- Color Temperature: 3000 K
- Color Rendering Index (CRI): > 80
- Luminaire Luminous Flux: 680 lm
- Protection Class: I
- Protection Rating: IP 65
Manufacturer information
BEGA
Practical help
Common problems
Moisture accumulation inside the luminaire
Ensure the gasket is positioned correctly and the desiccant pouch was inserted during installation.
Luminaire not functioning
Verify the electrical connection and earth conductor. Ensure installation was performed by a qualified electrician.
Before use
- Ensure installation is performed by a qualified electrician.
- Verify the mounting surface is suitable.
- Check that the gasket rings are included and used.
- Locate the desiccant pouch for insertion.
- For wall mounting, identify the 'arrow down' position.
Show more Show less
Specs in practice
- BEGA Thermal Control
- Temporary thermal regulation to protect components without switching off the luminaire.
Images and diagrams

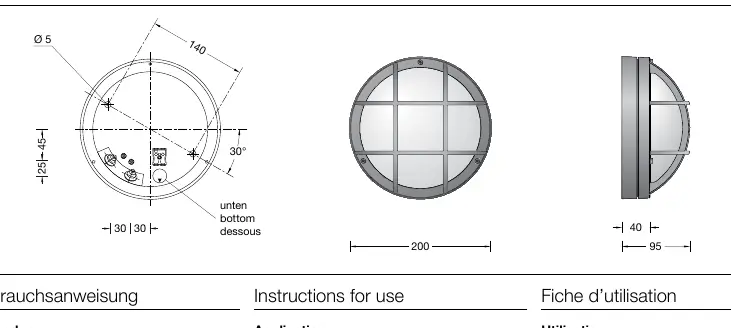

- The dimension diagram on page 1 shows a width of 200mm, a depth of 95mm, and a mounting hole distance of 140mm.
Model compatibility
- Suitable for both interior and exterior lighting applications.
- Compatible with BEGA Lacquer Care Set 71 179 for maintenance.
