User Manual for BEGA 24537 Wall Luminaire
Comprehensive user guide for the BEGA 24537 wall luminaire. Includes installation instructions, wiring diagrams, technical specifications, maintenance tips, and LED module replacement procedures.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The BEGA 24537 is a wall luminaire with two-sided light output. It requires professional installation by a qualified electrician, supports DALI control, and is rated IP65 for outdoor use. p. 1
Key actions
- Install the mounting plate and connect wiring. p. 2, 3
- Replace the LED module. p. 3
Problems and fixes
Moisture accumulation
Do not remove the desiccant bag inside the housing.
p. 3Show 3 more answers Show less
Maintenance and reset
- Clean regularly with solvent-free cleansers; do not use high-pressure cleaners. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Protection Class | I | Safety class I | p. 1 |
| Ingress Protection | IP 65 | Dust-tight and protected against water jets | p. 1 |
| Impact Strength | IK03 | Protection against mechanical impacts < 0.35 joule | p. 1 |
| Luminaire Connected Wattage | 39 W | Total power consumption | p. 2 |
Where to find it in the PDF
- Product Overview and Dimensions p. 1
- Technical Data and Installation p. 2
- Wiring Diagram and Maintenance p. 3
Table of contents
Manual images
Click an image to enlargeQuick Guide
The BEGA 24537 is a wall luminaire with two-sided light output designed for architectural lighting. It is rated IP65 (dust-tight and protected against water jets) and IK03 (impact strength). Installation must be performed by a qualified electrician. The luminaire is DALI-controllable.
Installation
Preparation:
- Undo the hexagon socket head screws (wrench size 3mm) to disassemble the mounting plate.
- Pass the power connecting cable through the cable entry in the mounting plate.
- The installed black gasket insert is intended for cables with a diameter of less than 10mm.
- For cables with a diameter of 10-12mm, use the enclosed grey gasket insert.
- If through-wiring, replace the factory-installed dummy plug with the corresponding gasket insert provided.

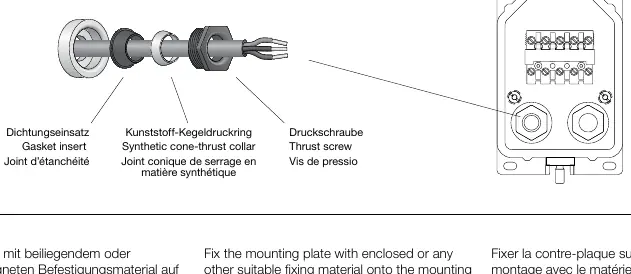

- When using the gasket insert, ensure the enclosed synthetic cone-thrust collar is used between the gasket insert and the thrust screw (wrench size 22mm).
Mounting:
- Fix the mounting plate to the mounting surface using suitable fixing material.
- Tighten the screw cable gland.
- Make the earth conductor connection and electrical connection to the connecting terminal (plug connection).
- For digital control, use the terminal marked DA, DA. If this terminal is not used, the luminaire operates at full light output.
- Ensure the gasket is positioned correctly.
- Push the plug into the coupler until it stops.
- Place the luminaire onto the mounting plate and secure it.
Cleaning and Maintenance
- Clean the luminaire regularly with solvent-free cleansers to remove dirt and deposits.
- Do not use high-pressure cleaners.
- Important: Do not remove the desiccant bag located inside the luminaire housing; it is necessary to absorb residual moisture.
LED Module Replacement
The LED module designation is noted on a label inside the luminaire. Replacement can be performed by qualified persons using standard tools.
- Disconnect the system from the power supply and open the luminaire.
- Follow the specific installation instructions provided with the replacement LED module.
- Inspect and, if necessary, replace the luminaire gaskets.
- If the glass is defective, it must be replaced.
- Close the luminaire after the replacement is complete.
Manufacturer information
BEGA
Practical help
Common problems
Luminaire not working
Check the electrical connection and ensure the plug is fully inserted into the coupler. Verify DALI connections if applicable.
Moisture inside the housing
Ensure the desiccant bag was not removed during installation or maintenance. It is required to absorb residual moisture.
Before use
- Ensure installation is performed by a qualified electrician.
- Check cable diameter: use black gasket for <10mm, grey gasket for 10-12mm.
- Ensure the synthetic cone-thrust collar is used with the gasket.
- Do not remove the desiccant bag from the housing.
- Ensure the gasket is positioned correctly before closing.
Show more Show less
Specs in practice
- Protection Class I
- Requires earth connection.
Model compatibility
- Suitable for wall mounting.
- DALI-controllable (1 address).
- Compatible with cables 7-12mm in diameter.
