User Manual for Belleze 014-HG-40011 65 Inch Embossed Buffet Cabinet
Comprehensive assembly and maintenance guide for the Belleze 014-HG-40011 65 Inch Embossed Buffet Cabinet. Includes step-by-step installation instructions, hardware lists, door hinge adjustments, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides assembly and maintenance instructions for the Belleze 014-HG-40011 65 Inch Embossed Buffet Cabinet. Assembly requires 2 people and takes approximately 90 minutes. Please ensure you have all parts and hardware before beginning. For safety, keep children and pets away from the assembly area and ensure the unit is permanently fixed to a wall stud using the included anti-tipping device.
Package Contents
The package includes various panels (Top, Bottom, Lateral, Medial, Back, Base, and Cabinet Doors) and hardware (cam bolts, wood dowels, screws, hinges, and handles). Please verify all components against the parts list on page 5 before starting assembly.
Assembly Instructions
The assembly process consists of 33 steps:
- Preparation: Assemble on a soft surface like a carpet or rug to prevent scratches.

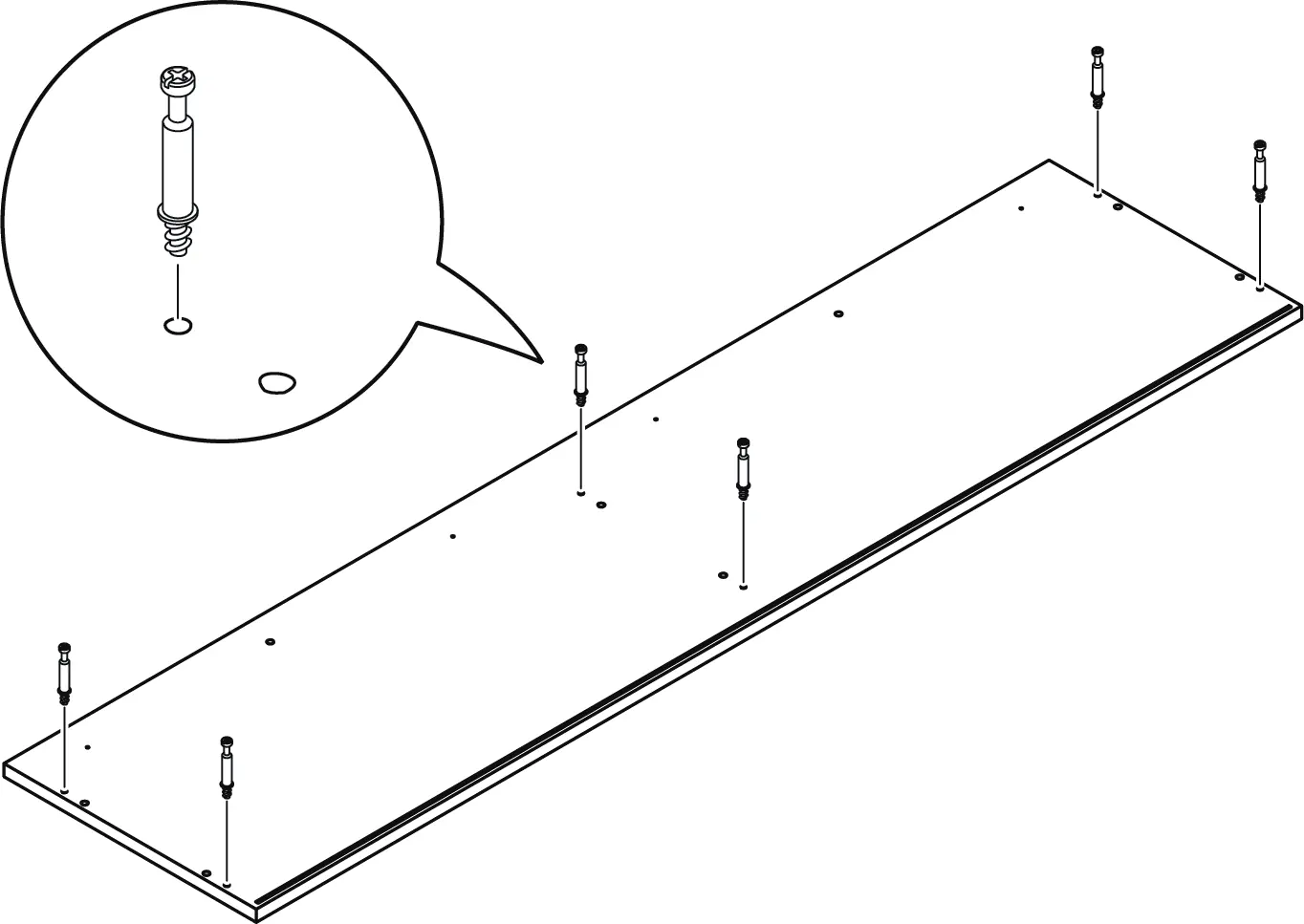

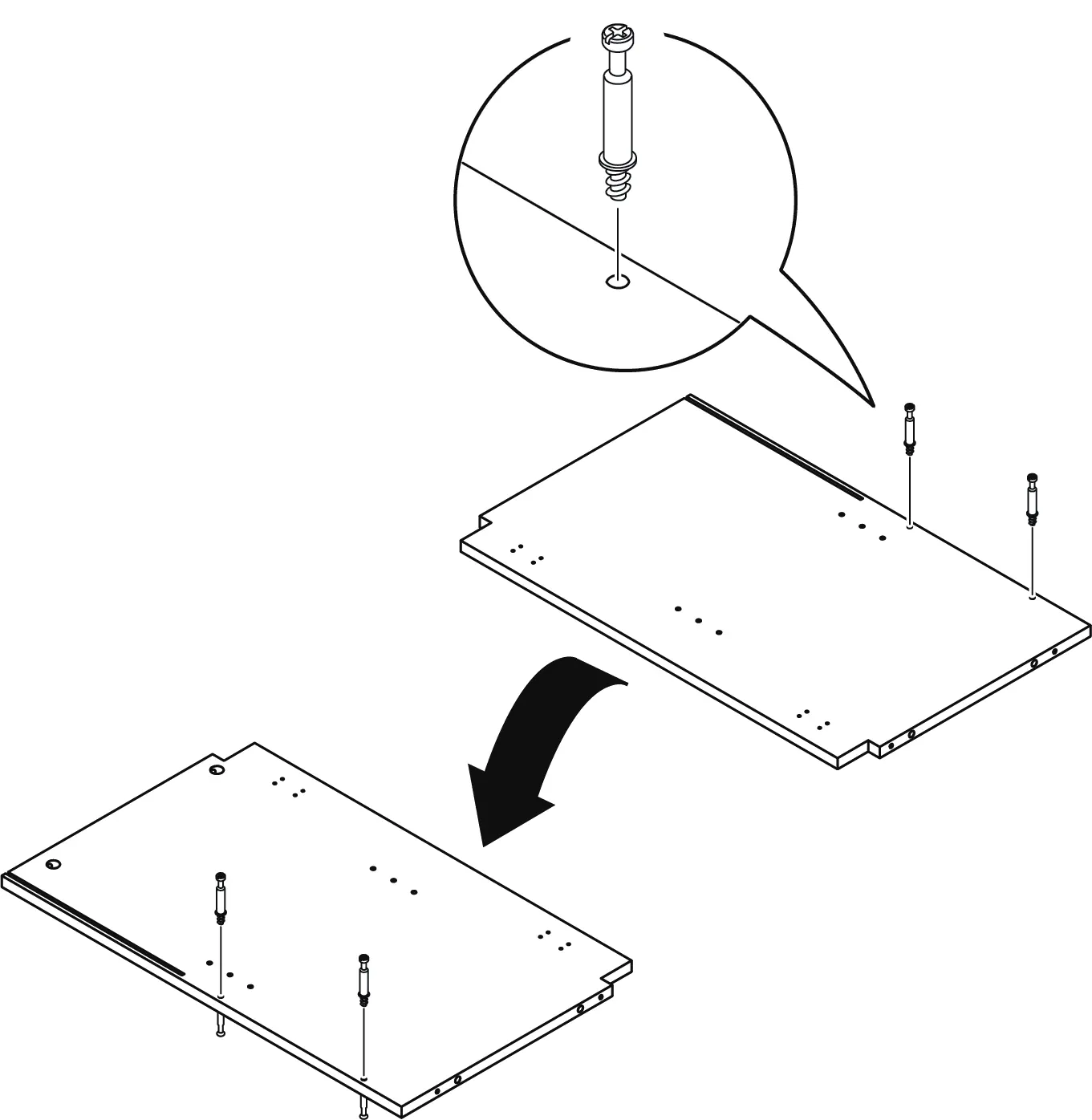

- Frame Assembly: Attach cam bolts and wood dowels to the lateral and medial panels. Connect the panels using the provided hardware.
- Back Panels: Slide the upper back panels into place on the lower back panels.
- Top and Bottom: Attach the top and bottom panels to the main assembly.
- Base: Assemble the base panels and attach them to the bottom of the cabinet.
- Shelves: Insert shelf pegs and place the storage shelf panels.
- Doors: Attach hinges to the cabinet doors, then mount the doors to the cabinet frame.
- Handles: Attach handles to the cabinet doors.
Door Adjustment
If the door clearance is uneven, you can adjust the cabinet doors using the screws on the hinges:
- Up and down adjustment: Loosen the screws on the mounting plate.
- In and out adjustment: Loosen the screws on the hinge arm.
- Side to side adjustment: Use the front adjustment screw on the hinge.
Safety and Maintenance
Warning: Serious or fatal crushing injuries may occur if the furniture tips over. Always use the provided anti-tipping straps to secure the unit to a wall stud.
Care:
- Tighten all bolts and screws within the first 2 weeks of assembly.
- Check the tightness of all bolts every 2 months.
- Clean the surface with a lightly dampened cloth and mild soap if necessary.
- Do not use bleach or alcohol.
- Do not apply wood treatment to MDF parts.
- Dry the surface immediately after cleaning to prevent water damage.
Manufacturer information
Belleze Furniture
Practical help
Common problems
Door clearance is uneven
Adjust the cabinet door using the hinge screws: loosen mounting plate screws for up/down, hinge arm screws for in/out, or the front adjustment screw for side-to-side movement.
Missing parts or hardware
Do not use the product until missing parts are restored. Contact support at 1-800-682-6376 or email [email protected].
Furniture tipping hazard
The furniture must be permanently fixed to a wall stud using the included anti-tipping device.
Before use
- Ensure 2 people are available for assembly.
- Assemble on a soft surface (empty carton, carpet, or rug) to prevent scratches.
- Verify all parts and hardware are present against the package contents list.
- Do not over-tighten hardware to avoid damaging the product.
- Keep small components away from children and pets to avoid choking hazards.
Specs in practice
- Estimated Assembly Time
- 90 minutes.
- Top Panel Load Limit
- 80 lb maximum.
- Shelf Load Limit
- 20 lb maximum per shelf.
Images and diagrams
- Hinge Adjustment: Shows how to adjust door alignment using the three screws on the hinge.
- Anti-tipping: Shows how to secure the strap to the back of the cabinet and the wall.
Model compatibility
- Requires wall stud for anti-tipping installation.
- MDF material: Do not use bleach or alcohol for cleaning; dry immediately if exposed to water.
