Installation Guide for Belleze Dale TV Stand with Fireplace

Quick guide from the manual

The Belleze Dale TV Stand with Fireplace requires approximately 60 minutes for assembly. It is recommended that two people perform the assembly to ensure safety and ease of construction. Assemble the unit on a flat, soft surface such as a carpet or rug to prevent scratches. Ensure all parts are present and undamaged before beginning.

• Estimated assembly time: 60 minutes
• Required personnel: 2 people
• Weight limit (Top): 70 lb
• Weight limit (Shelves): 15 lb
• TV compatibility: Flat panel TVs weighing 70 lbs (31.7 kg) or less

Package contents

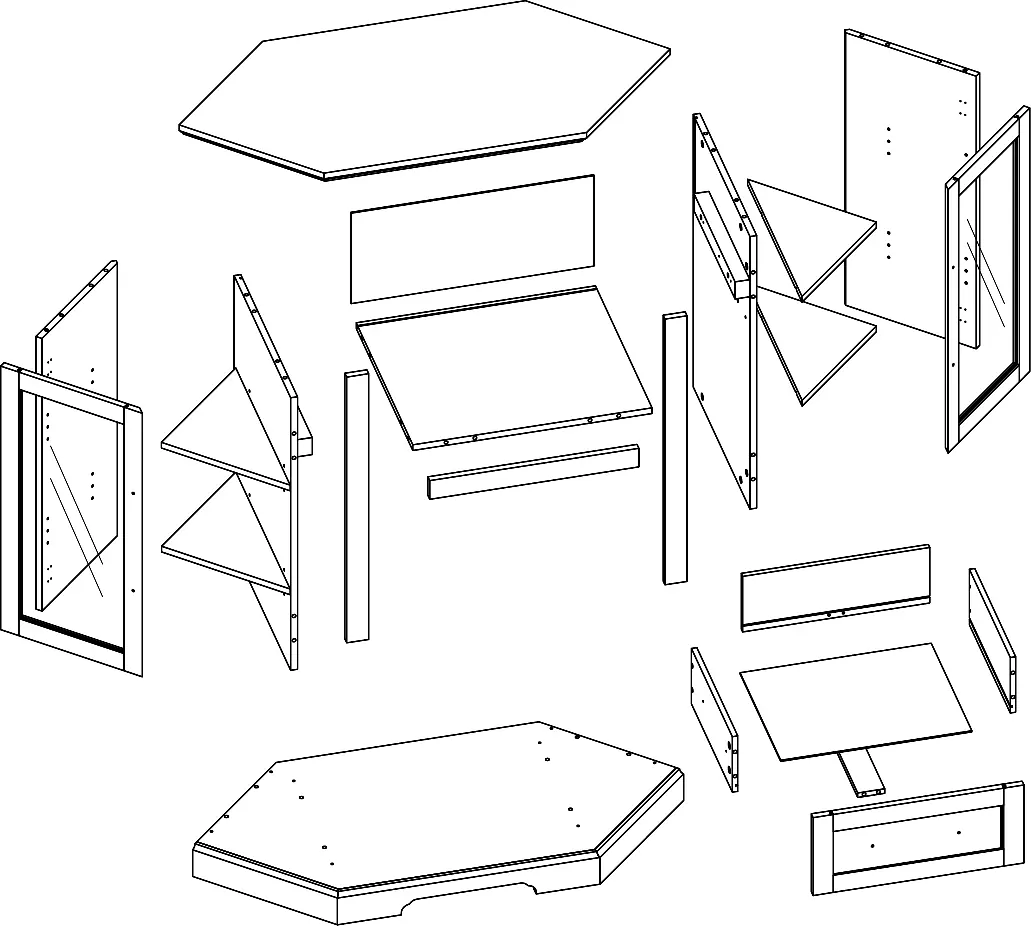

The package includes various wooden panels (coded 1-19) and hardware components (coded A-V). Ensure all items are accounted for before starting. Do not discard packaging until assembly is complete.

Assembly instructions

The assembly process involves building the frame, installing the fireplace, and attaching the drawer and doors.

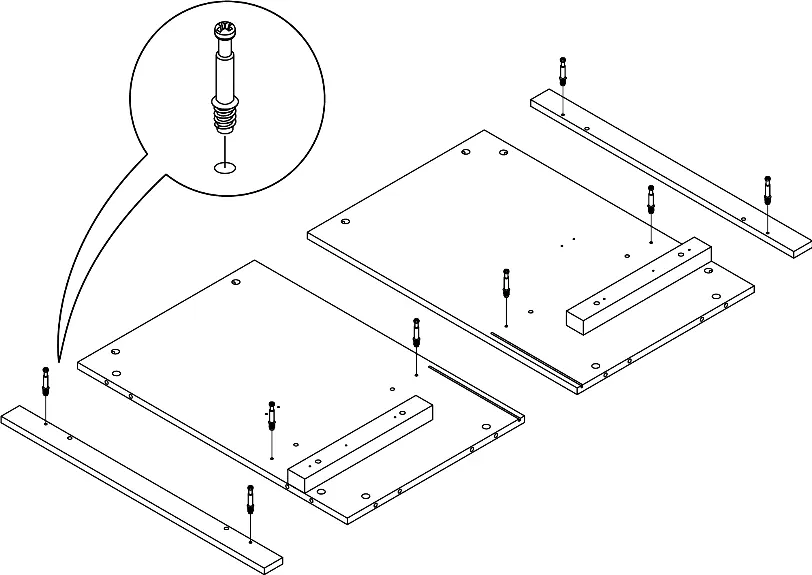

1. Frame assembly: Attach cam bolts and wood dowels to the median panels and base. Assemble the median panels to the base and attach the center storage shelf.
2. Back panel: Slide the back panel into the grooves of the assembly.
3. Top panel: Attach the top panel to the main frame using cam locks.

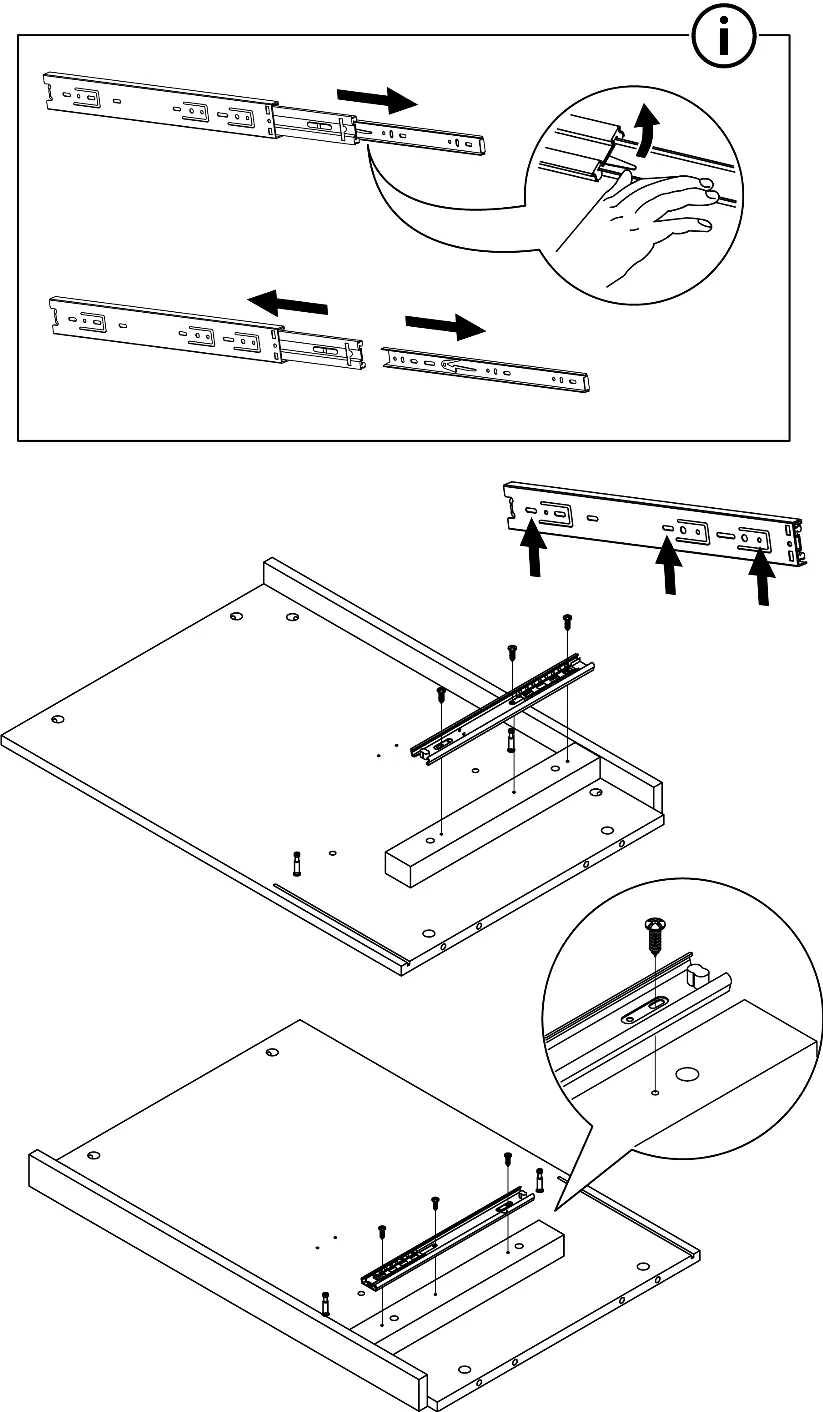

4. Drawer assembly: Assemble the drawer sides, back, and support bar. Attach the drawer slides and front panel.

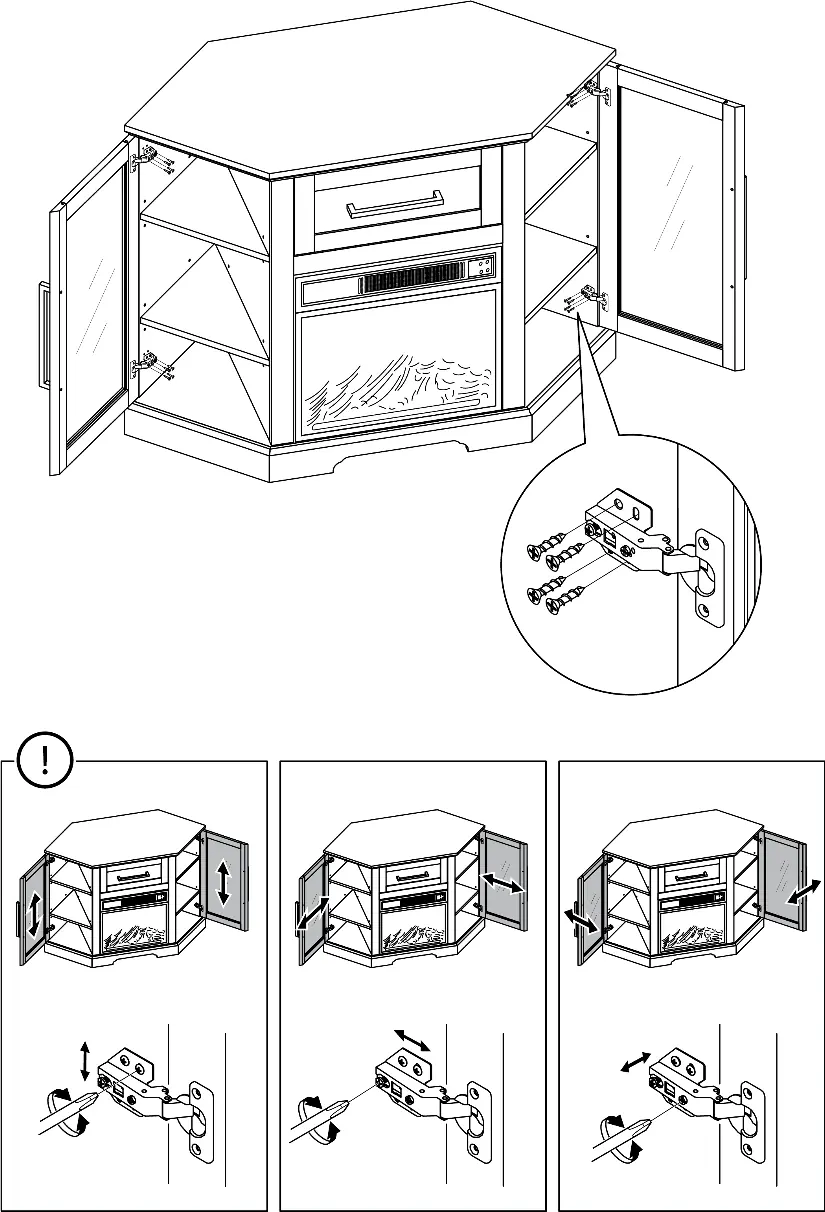

5. Doors: Attach hinges to the cabinet doors and mount them to the TV stand.

Fireplace installation

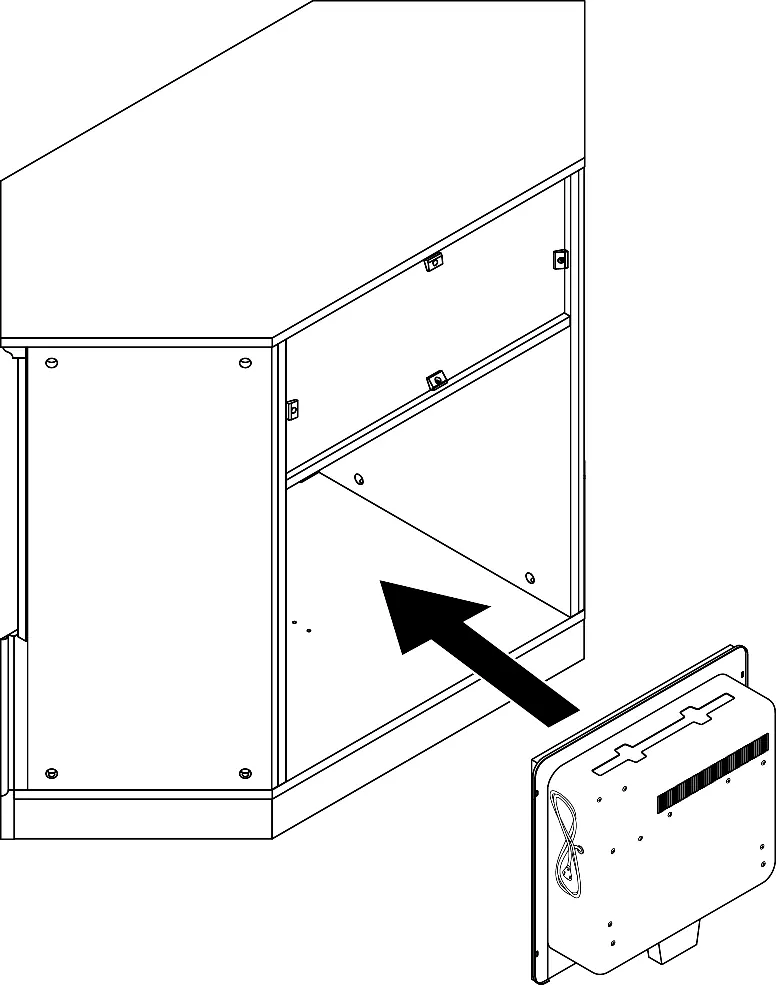

The fireplace unit must be installed from the back of the TV stand. Do not attempt to install it from the front, as it will not fit. Center the fireplace in the opening and secure it in place using the provided metal brackets.

Anti-tipping installation

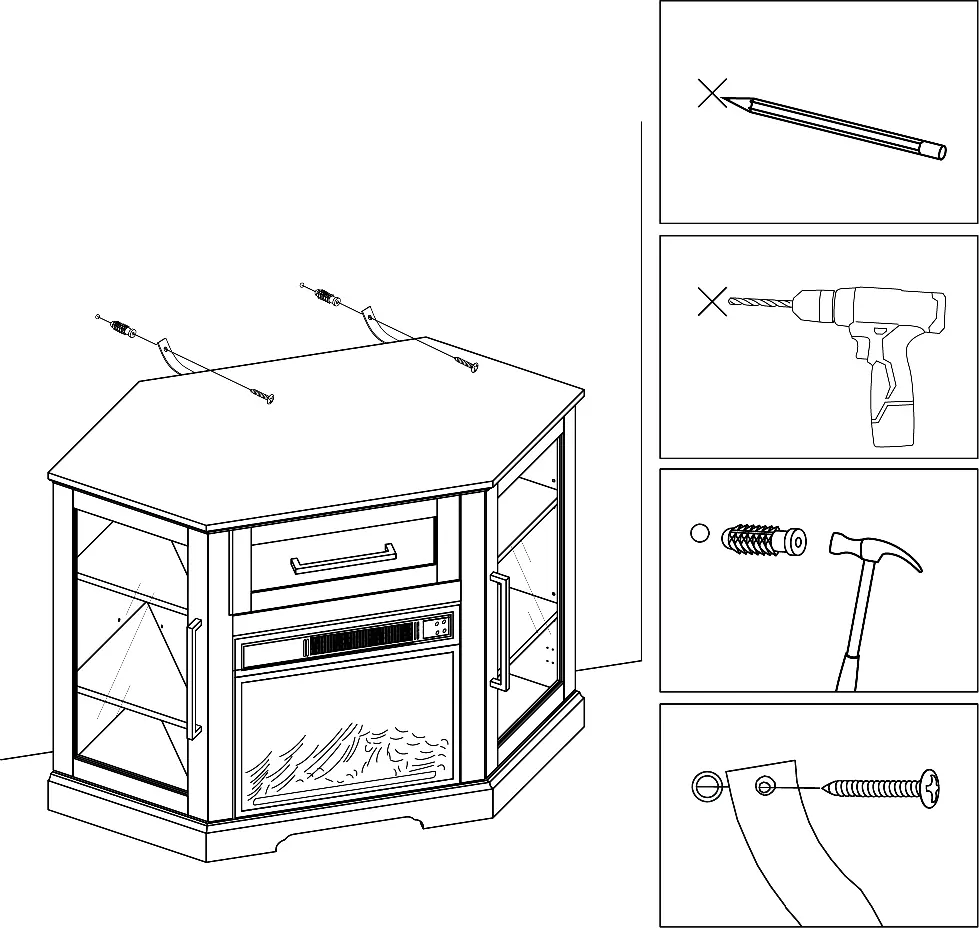

For safety, the furniture must be permanently fixed to a wall stud using the included anti-tipping device to prevent tipping. Mark the drill position, drill a small hole, insert the wall anchor, and fix the strap to the wall with the provided screws.

Care and maintenance

To ensure the longevity of your furniture:

• Tighten all bolts and screws within the first 2 weeks of assembly.
• Check the tightness of all bolts every 2 months.
• Clean the MDF surface with a lightly dampened cloth. A small amount of mild soap may be used if necessary.
• Warning: Do not use bleach or alcohol to clean the surface. Do not apply wood treatment to MDF parts. Dry the surface immediately after cleaning to prevent water damage.
