User Guide for Belleze Crown Chair 014-HG-31956

Quick guide from the manual

This guide provides essential information for the assembly and maintenance of the Belleze Crown Chair. The assembly process is estimated to take 10 minutes and requires 2 people. Please ensure you have all components before starting and follow the safety guidelines provided.

Safety information

• Weight limit: The maximum load capacity for this chair is 300 lb.
• Assembly safety: Keep pets and children away from the assembly area to prevent choking hazards from small parts.
• Surface protection: Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage.
• Usage: Ensure the product is fully assembled before use.

Package contents

Before beginning assembly, lay out all components on a flat surface to ensure nothing is missing or damaged:

• 1x Seat
• 1x Base
• 1x Swivel Plate
• 8x M6 x 25 Bolts
• 8x Spring Washers
• 8x Washers
• Allen key (included)

Assembly instructions

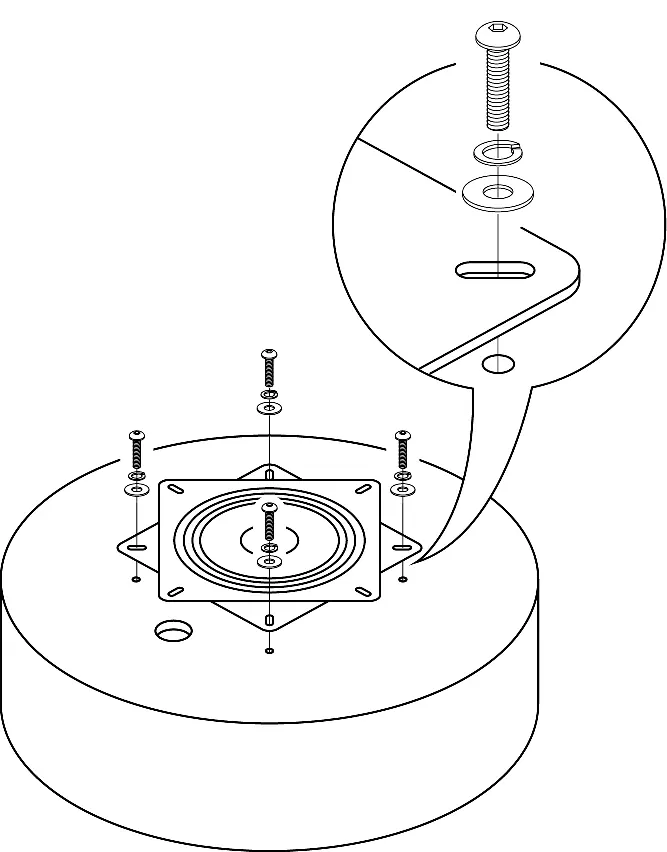

Step 1: Assemble the swivel plate

Attach the swivel plate (3) onto the base (2) using the provided bolts (A), spring washers (B), and washers (C). Ensure all 4 bolts are tightened securely.

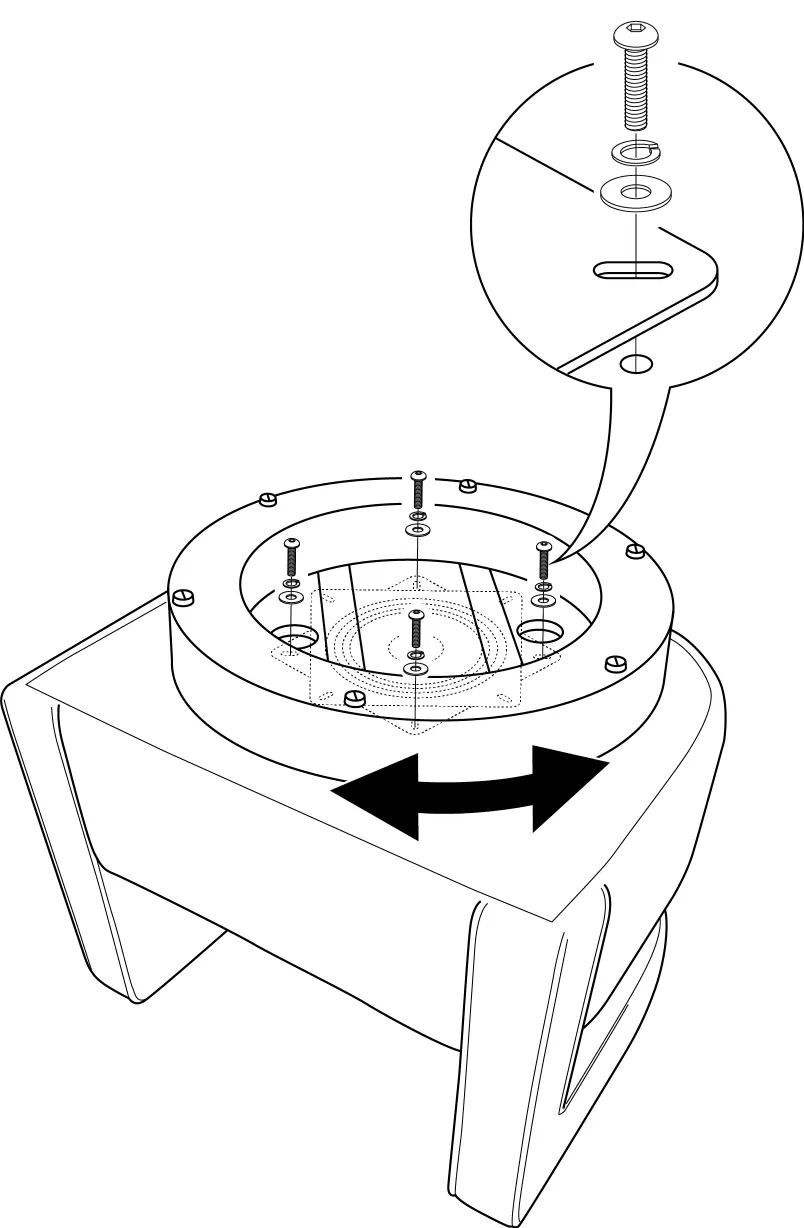

Step 2: Assemble the base to the seat

Attach the base (2) to the underside of the seat (1). You may need to turn the base to access the bolt openings through the holes. Secure using the remaining bolts (A), spring washers (B), and washers (C).

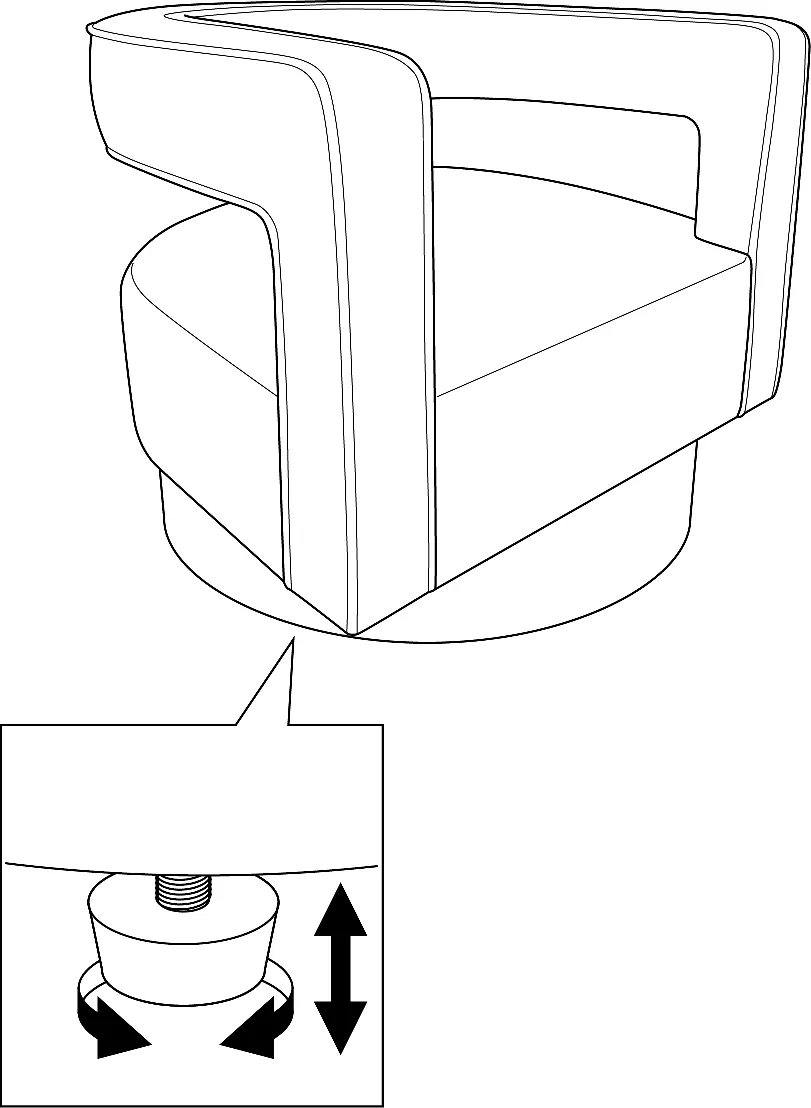

Step 3: Level the chair

Place the chair on the floor. If the chair is uneven, adjust the foot leveler located at the bottom of the base until the chair is stable.

Care and maintenance

• Tightening: Tighten all bolts and screws again within the first 2 weeks of assembly. Check the tightness of all bolts every 2 months and tighten if necessary.
• Cleaning: Clean the furniture surface with a lightly dampened cloth or soft brush. Regularly clean the cloth surface with a vacuum cleaner. Dry the surface immediately after cleaning.
• Prohibitions: DO NOT use bleach or alcohol to clean the surface.

Support

If you encounter any difficulties or are missing parts, contact Belleze support at 1-800-682-6376 or email [email protected]. Register your product on the official website to enjoy a limited lifetime warranty.
