Assembly Instructions for Belleze 014-HG-31958 Sherpa Boucle Chair

Important Information

This chair is designed for residential use only and is not intended for commercial applications. Assembly requires two adults and should take approximately 30 minutes. To prevent damage, do not assemble the chair on flooring or carpet; use a clean, non-marring surface such as packing foam. The chair must only be used on a flat, level surface.

Care & Maintenance

• Do not place hot items directly on the furniture surface.
• Avoid using harsh cleansers or polish for cleaning.
• Keep the furniture away from direct sunlight and heating or cooling vents.
• Do not write on the furniture surface without a padded barrier.
• For indoor use only; do not place outdoors.
• Remove stains using a mild soap solution and a damp cloth.
• Dust and pick up spills using a clean, non-colored, lint-free cloth.
• Children should not climb or jump on the furniture.

Parts List

Ensure all parts are present before beginning assembly:

• A: Back (1)
• B: Seat (1)
• C: Left hind leg (1)
• D: Right hind leg (1)
• E: Front Leg (2)
• F: Base support (2)
• G: Front support (1)

Hardware

The following hardware is included:

• 1: Angle iron (5)
• 2: Plate iron (5)
• 3: Bolt (M6*20MM) (17)
• 4: Bolt (M6*30MM) (5)
• 5: Spring Washer (M6) (21)
• 6: Washer (M6) (23)
• 7: Allen Wrench (M6) (1)
• 8: Bolt (M8*45MM) (9)
• 9: Spring Washer (M8) (9)
• 10: Washer (M8) (7)
• 11: Allen Wrench (M8) (1)
• 12: Wood plugs (3)

Assembly Preparation

Before beginning, unpack all parts on a clean, non-marring surface. Have two adults available for the assembly process. Save all packaging until the assembly is finished.

Assembly Steps

Step 1: Unpack and place all parts on a clean surface.

Step 2: Fix the Angle iron (1) into the mounting position of the Left hind leg (C) using Bolt (3), Spring washer (5), and Washer (6) with the Allen wrench (7). Repeat for the Right hind leg. Do not fully tighten the bolts.

Step 3: Slot the Hind legs (C+D) into the slots on the Back (A). Attach them using bolts (4), Spring washer (5), and Washer (6) with the Allen wrench (7). Do not fully tighten the bolts.

Step 4: Unzip the seat (B).

Step 5: Attach the Front legs (E) into the mounting positions of the Seat (B) using Bolts (8), Spring washers (9), and Washers (10) with the Allen wrench (11). Do not fully tighten the bolts.

Step 6: Slot the wood plugs (12) into the position holes on the Front support (G) and into the holes of the Front legs (E). Attach Front legs (E) to Front support (G) using Bolts (8), Spring washer (9), and Washers (6) with the Allen wrench (11).

Step 7: Attach the Seat (B) into the mounting positions of the Hind legs (C+D) using Bolts (8), Spring washers (9), and Washers (10) with the Allen wrench (11). Do not fully tighten the bolts.

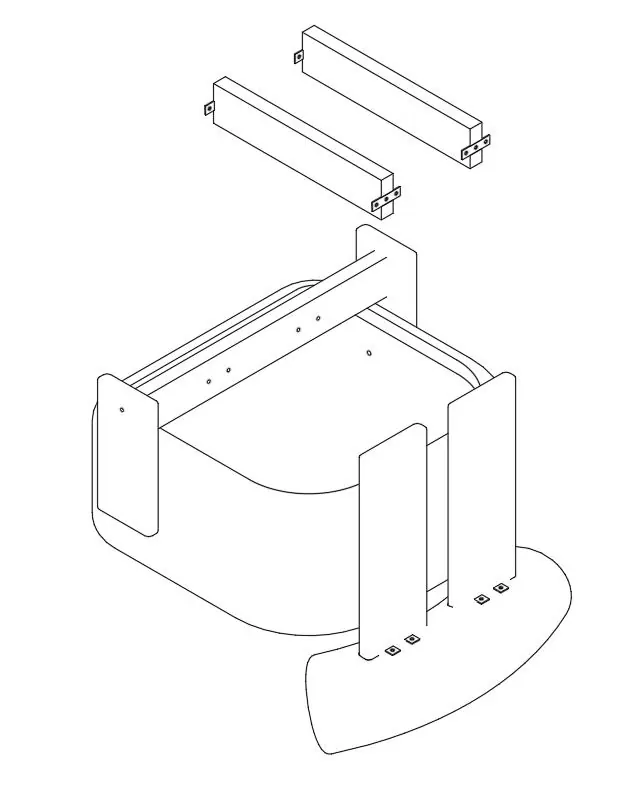

Step 8: Attach the Plate irons (2) into the mounting positions of the Base supports (F) using Bolts (3), Spring washers (5), and washers (6) with the Allen wrench (7). Do not fully tighten the bolts.

Step 9: Attach the Plate irons (2) into the mounting positions of the Front support (G) using Bolts (3), Spring washers (5), and Washers (6) with the Allen wrench (7). Do not fully tighten the bolts.

Step 10: Attach the Plate irons (2) into the mounting positions of the Hind legs (C+D) using Bolts (3), Spring washers (5), and Washers (6) with the Allen wrench (7). Do not fully tighten the bolts.

Step 11: Tighten all remaining bolts. Do not fully tighten a bolt in one go; in a sequential manner, gradually tighten each bolt until all are evenly secured. Zip the seat bottom up and turn the chair right side up.
