Installation Guide for Belleze Brent Corner Cabinet 014-HG-43507

Quick guide from the manual

This cabinet requires 2 people for assembly. The estimated assembly time is 45 minutes. Ensure the product is fully assembled before use. The maximum load for each shelf is 15 lb.

Safety and Preparation

• Assemble on a flat surface, such as a carpet or rug, to prevent scratches.
• Keep pets and children away from the assembly area due to small parts and choking hazards.
• Do not discard packaging until you are certain all parts are present.
• Hand-tighten hardware; do not over-tighten to avoid damaging the product.
• Required tools (not included): Screwdriver, hammer, drill.

Assembly Instructions

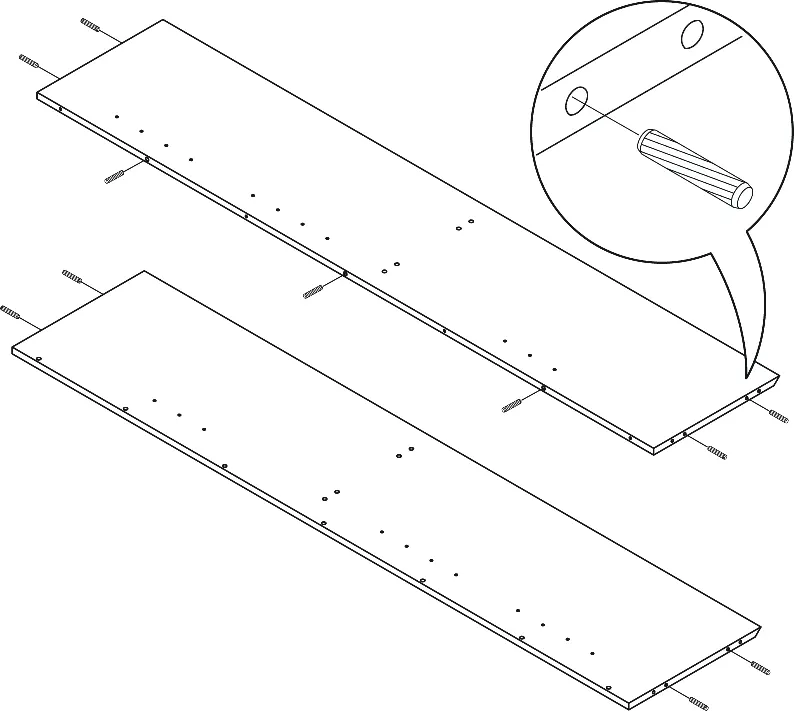

Follow the steps in the manual to assemble the cabinet frame, attach the legs, and install the shelves. Key steps include:

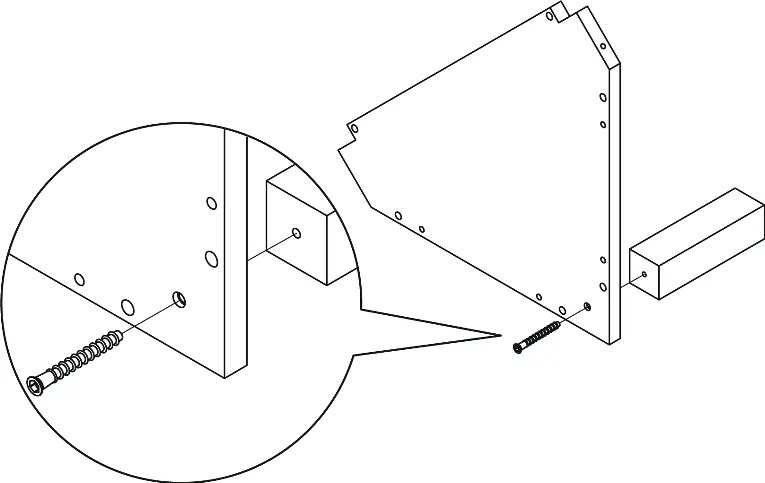

• Assembling the back leg to the bottom panel.
• Attaching the magnetic catch and pivot hinge bushings.

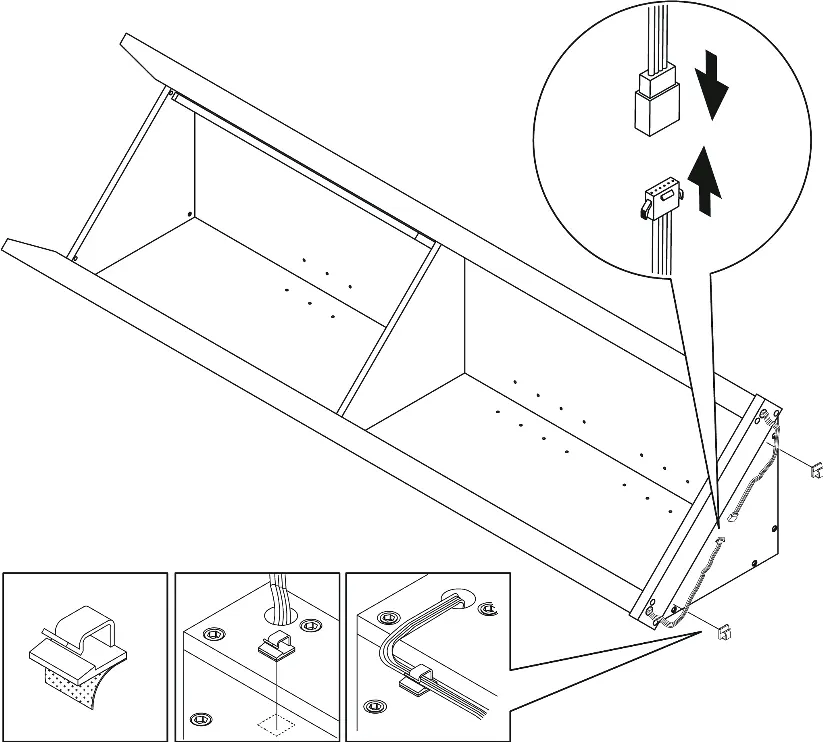

• Connecting the LED light power cord between the left and right legs.

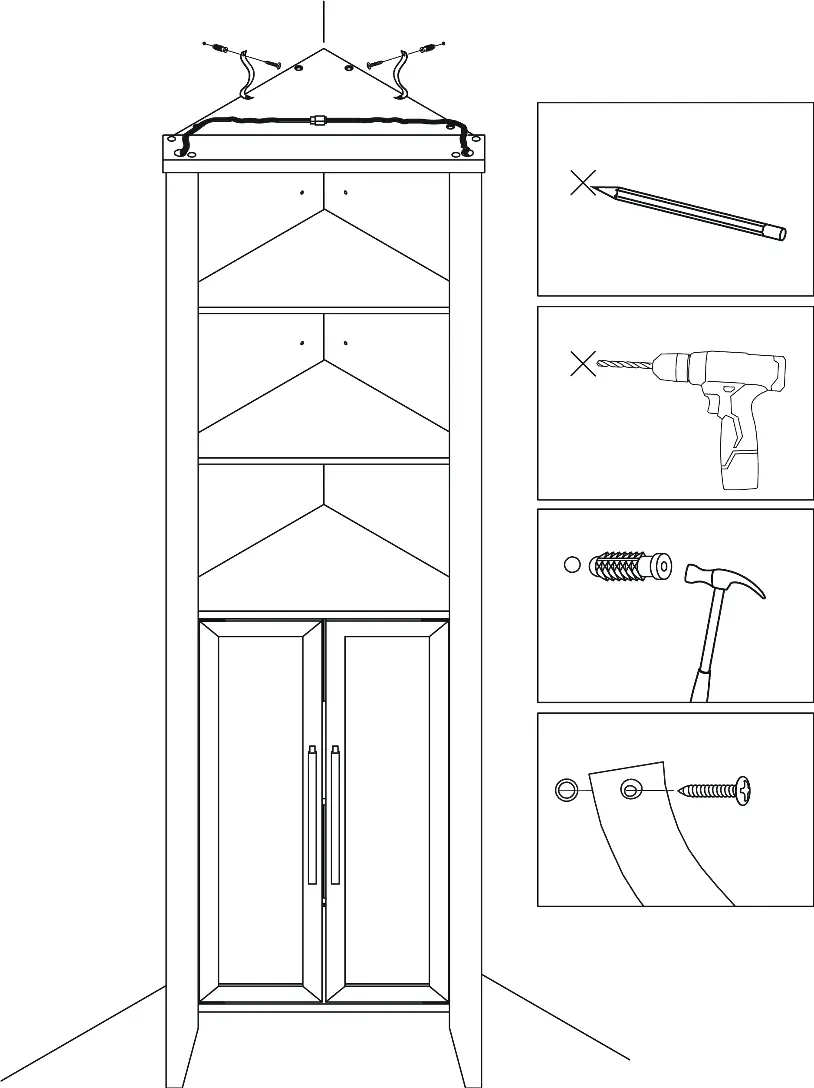

• Securing the cabinet to the wall using the provided anti-tipping straps.

LED Lighting and Remote Control

The cabinet includes LED lighting controlled by a remote. Use the ON/OFF buttons to control power. Use the increase/decrease buttons to adjust brightness in static mode or effect speed in dynamic mode. Color modes include Flash 7, Strobe 7, Flash 16, and Strobe 16.

Care and Maintenance

• Tighten all bolts and screws within the first 2 weeks of assembly.
• Check the tightness of all bolts every 2 months.
• Clean surfaces with a lightly dampened cloth. A small amount of mild soap may be used.
• Do not use bleach or alcohol.
• Dry the surface immediately after cleaning to prevent water damage to the MDF.

Support

If you encounter difficulties or are missing parts, contact Belleze at 1-800-682-6376 or email [email protected].
