Bestway Hydro Force Arrow Elite X1 Inflatable Kayak

Quick guide from the manual

The Bestway Hydro Force Arrow Elite X1 is a 1-person inflatable kayak. Before use, ensure all components are inspected for damage. The kayak must be inflated to a recommended working pressure of 0.7 bar (10 psi). Do not exceed the maximum weight capacity of 160 kg (352 lbs). Always wear a life jacket and stay within protected shore zones (up to 300m).

Safety Warnings

• Weight Limit: Never exceed the maximum weight capacity of 160 kg.
• Inflation: Inflate only to the rated pressure (0.7 bar / 10 psi). Over-inflation can cause the boat to explode.
• Usage: Use only in protected shore zones. Be aware of offshore winds and currents.
• Safety Gear: Always wear a life jacket. Keep a bucket/bailer on board.
• Maintenance: Never transport the boat while inflated. Do not leave in direct sunlight for extended periods.

Setup Instructions

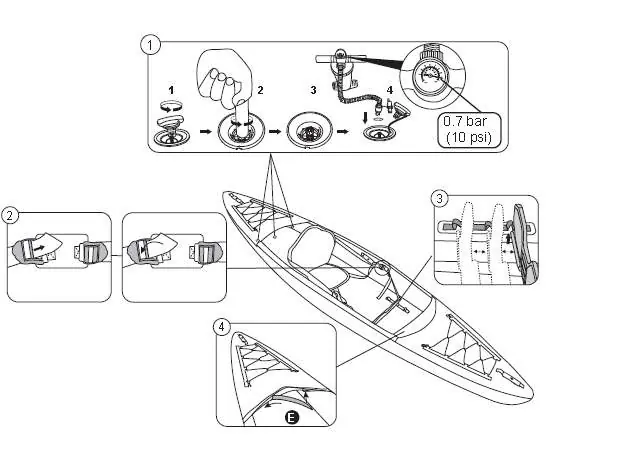

Compare the parts in your box to the parts listed in the manual. Use only Bestway approved inflation pumps. Never use high-pressure air to inflate the boat. Inflate the chambers until you see some folding at the welding seams, then check the pressure gauge. Ensure the valve is tightly closed before use.

Assembly Instructions

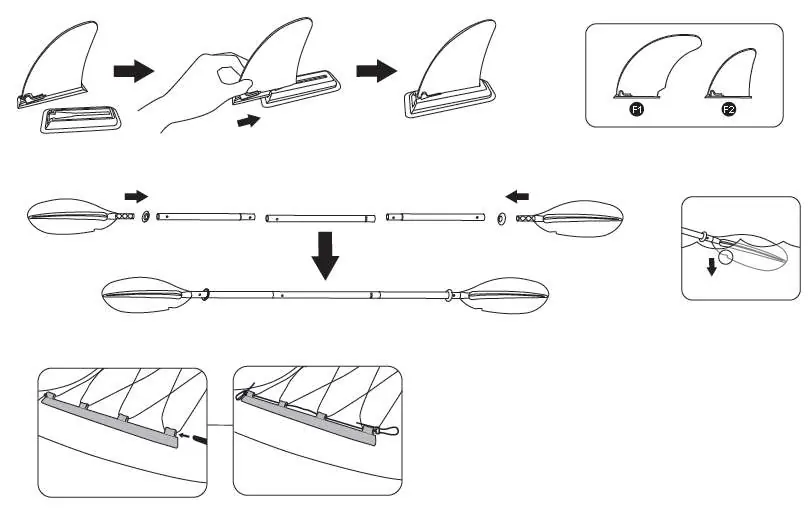

Follow the illustrations to install the fins and assemble the paddles. After the craft is inflated, connect the belts of the seats and footrests to the side buckles on the craft. The location of the seats and footrests can be adjusted along with the craft floor.

Repair Patch Instructions

For small punctures, repair according to the instructions provided with the repair patch. If the hole is too large for the provided patch, purchase a Bestway repair kit or take the boat to a specialty shop.

Disassembly Instructions

To deflate, open the air valves by pushing the control stem in and rotating until the valves stay open. Deflate all hull chambers at the same time to allow air pressure to drop evenly.

Maintenance & Storage

Remove paddles and seats. Remove all residual air before storage. Clean the boat with mild soap and clean water; do not use acetone, acid, or alkaline solutions. Dry all surfaces with a cloth. Store in a dry place with a temperature higher than 15°C (59°F), out of reach of children.
