User Manual for Bissell Adapt Ion XRT 2-in-1 Cordless Vacuum
Comprehensive user guide for the Bissell Adapt Ion XRT 2-in-1 Cordless Vacuum (3034 Series). Includes instructions for assembly, charging, operation, filter maintenance, brush roll care, and troubleshooting.
Quick answers from the manual
Quick answer
- The Bissell Adapt Ion XRT is a 2-in-1 cordless vacuum. Charge it for 8 hours before first use. Maintenance involves emptying the dirt tank, cleaning filters, and clearing the brush roll. p. 3, 5, 10, 11
Key actions
- Assemble the vacuum p. 5
- Charge the vacuum p. 5
- Empty the dirt tank p. 10
First start
- Charge the unit completely for 8 hours prior to first use. p. 5
Show 4 more answers Show less
Problems and fixes
Vacuum won't turn on
Charge battery or use correct charger.
p. 14Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| Solid red light (3 seconds) | No Power | Check battery/charging | p. 6 |
| Solid red light, then unit shuts off | Brush Stall | Clear brush roll | p. 6, 12 |
Maintenance and reset
- Turn vacuum ON to reset after clearing brush roll. p. 12
Where to find it in the PDF
- Assembly p. 5
- Maintenance p. 10, 11, 12
Table of contents
Manual images
Click an image to enlargeQuick Start Guide
The Bissell Adapt Ion XRT is a 2-in-1 cordless vacuum designed for household use. Before first use, ensure the unit is charged for 8 hours. The vacuum features a 2-way folding handle for easy storage and cleaning under low furniture, and a detachable hand vacuum for versatile cleaning.

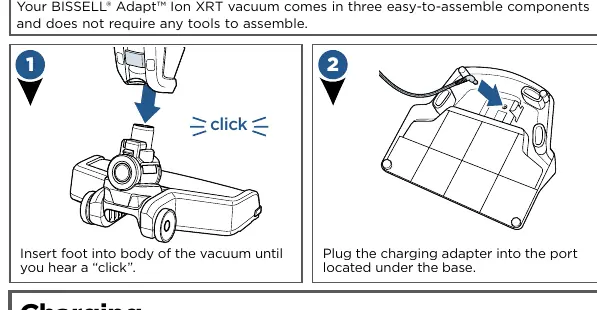

Assembly
The vacuum comes in three components and requires no tools for assembly:
- Insert the foot into the body of the vacuum until you hear a click.
- Plug the charging adapter into the port located under the base.

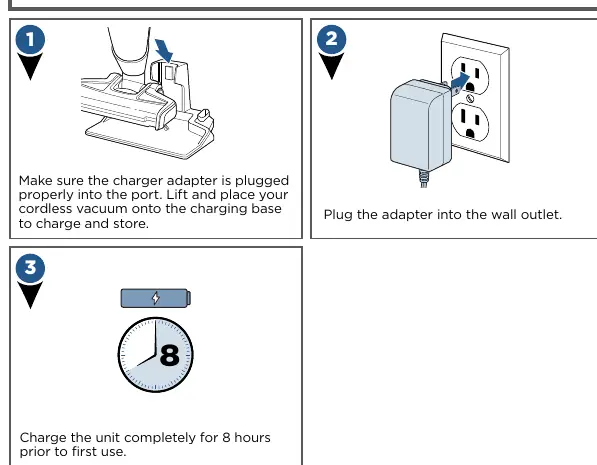

Charging
To charge the unit:
- Ensure the charger adapter is plugged properly into the port on the base.
- Plug the adapter into a wall outlet.
- Lift and place the cordless vacuum onto the charging base.
- Charge the unit completely for 8 hours prior to first use.
Operation
Control Buttons
- Power Icon: Turns the unit ON/OFF.
- Brush Icon: Turns the Motorized Brush Roll ON/OFF.
- -/+ Icon: Adjusts Brush Speed (LO/HI).

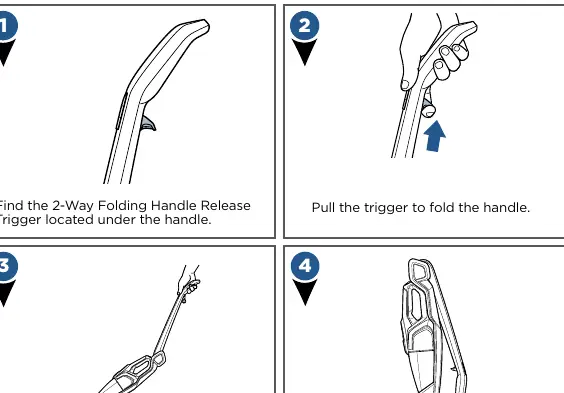

2-Way Folding Handle
Locate the release trigger under the handle to fold it forward for cleaning under low places or backward for easy storage.
Hand Vacuum
Press the button on top of the hand vacuum handle to detach it from the main machine. Insert desired tools (Crevice Tool, Upholstery Tool, Dusting Brush) firmly into the nozzle.
Maintenance

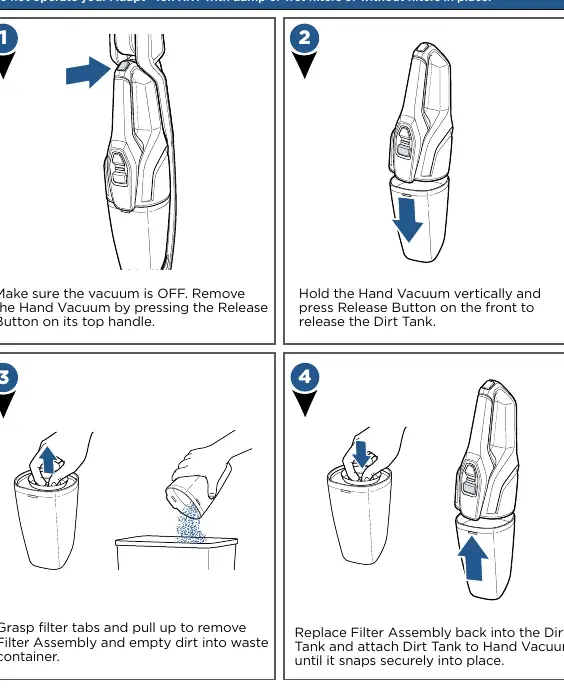

Emptying the Dirt Tank
- Ensure the vacuum is OFF.
- Remove the hand vacuum.
- Hold vertically and press the release button on the front to release the dirt tank.
- Grasp filter tabs, pull up to remove the filter assembly, and empty the dirt into a waste container.
Cleaning the Filters
- Remove the dirt tank and filter assembly.
- Grip the filter assembly, turn counter-clockwise, and lift to remove the filter from the screen.
- Tap the filter firmly against the inside of a waste container to remove dirt.
- Rinse the filter and screen in warm water if necessary. Ensure they are 100% dry before reuse.

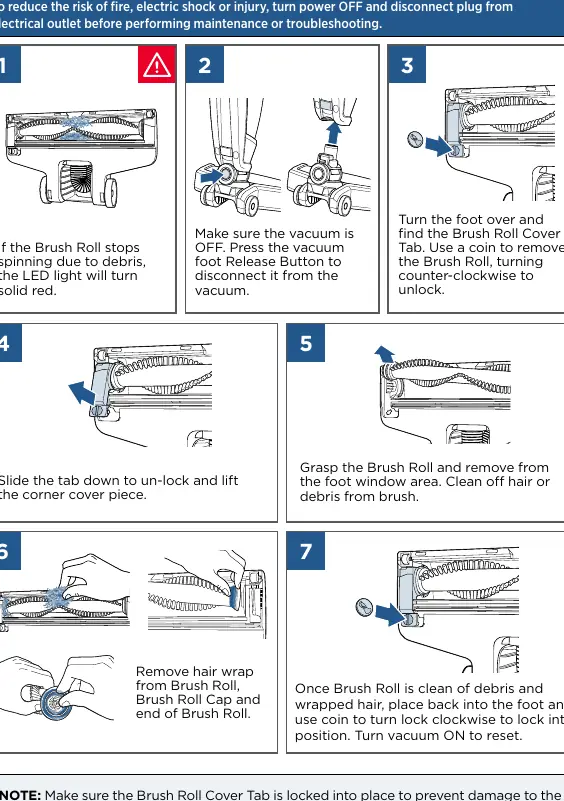

Maintaining the Brush Roll
- Turn the vacuum foot over and use a coin to turn the Brush Roll Cover Tab counter-clockwise to unlock.
- Remove the brush roll and clear away hair or debris.
- Once clean, place the brush roll back into the foot and use a coin to turn the lock clockwise to secure it.
Troubleshooting
If the vacuum won't turn on, ensure the battery is fully charged and the correct charger is being used. If the brush roll stops spinning, the LED light will turn solid red; clear the obstruction and reset by turning the vacuum ON. For low suction, empty the dirt tank, clean the filters, or check for clogs in the foot area.
Manufacturer information
Bissell Inc.
Practical help
Common problems
Vacuum won't turn on
Ensure the battery is fully charged and you are using the charger supplied with the product.
Brush Roll not turning
Clear debris from the brush roll and end cap area, then turn the vacuum ON to reset.
Low suction
Empty the dirt tank, clean the filters, or check for clogs in the foot area.
Before use
- Charge the unit for 8 hours before first use.
- Ensure the foot is fully inserted into the body until it clicks.
- Verify the dirt tank is properly attached.
- Ensure filters are clean and dry before installation.
Show more Show less
Specs in practice
- LED Light (Solid Red)
- Brush stall or no power; requires maintenance or charging.
- LED Light (Blinking Red)
- Low power or charging status.
Images and diagrams
- Assembly: Insert foot into body until it clicks.
- Charging: Plug adapter into base, then place vacuum on base.
- Folding Handle: Use trigger under handle to fold.
Model compatibility
- Use only charger model ZD5F230030US.
