The Blaupunkt TIF 22 DA is a 12V tyre inflator designed for sedans and hatchback vehicles. It features an automatic shut-off function and a digital gauge. To ensure longevity, do not operate the device for more than 7-8 minutes continuously; allow a 2-3 minute cool-down interval if needed. Always use the device with a 12V power source only.
Product Description

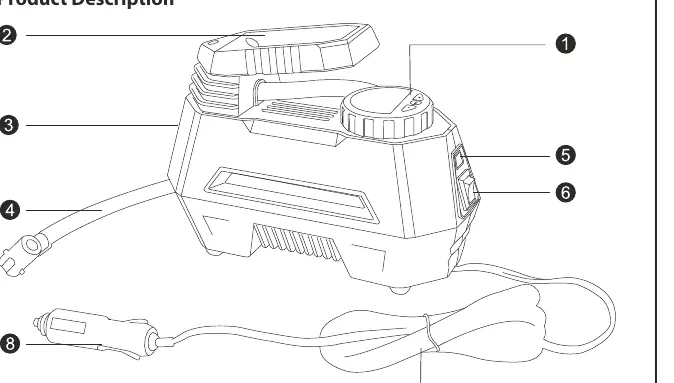

The device consists of the following main components:
- Digital Gauge
- Carry Handle
- LED Lamp
- Quick Release Nozzle Inflator Rubber Hose
- LED Lamp Switch
- Inflator ON / OFF Switch
- Power Cord
- Cigarette Lighter Adaptor
Operating Instructions
- Start the vehicle and insert the cigarette lighter adaptor into the 12V outlet.
- Connect the Quick Release Nozzle to the tyre valve stem.
- Place the device on a flat surface and set the preferred tyre pressure using the digital dial.
- Turn on the inflator. Ensure there are no leaks at the connection point.
- The unit will turn off automatically once the desired pressure is reached.
Safety and Maintenance
- Heat Warning: It is normal for the device to get hot after continuous use.
- Duty Cycle: Do not use the device beyond 7-8 minutes at a stretch.
- Power Source: Use only with 12V supply sources. Do not attempt to use with 24V.
- Environment: Do not keep the device near heat sources or flammable liquids/gas.
- Service: Any attempt to service the device by an unauthorized person will void the warranty.
Troubleshooting
If the device is not working, check if the fuse is blown and replace it if necessary. If the device is operating erratically, ensure the quick release valve connector is securely attached to the valve stem to prevent leaks. If the display is blinking, the pressure was not preset correctly; turn off the device, set the pressure, and turn it back on.
Technical Specifications
- Input: DC 12V
- Rated Power: 100W
- Rated Current: 8A
- Max Pressure: 120 PSI / 8.2 BAR
- Cylinder Diameter: 22mm
- Max Duty Cycle: 8 minutes
- Power Cord Length: 3 meters
- Air Hose Length: 50cm
Manufacturer information
Blaupunkt
Practical help
Common problems
Device not working
Fuse is blown - replace fuse and check device.
Device operating erratically
Quick release valve connector is not connected securely causing a leak. Release the connector from the valve stem and reconnect securely.
Display blinking continuously
Preferred tire pressure was not preset correctly. Turn off the device, set the preferred tyre pressure, and turn ON the device.
Before use
- Ensure the vehicle is started.
- Check that the 12V cigarette lighter outlet is functional.
- Ensure the tire valve stem is clean and accessible.
- Verify that the device is not used for more than 7-8 minutes continuously.
- Check that the device is not being used with a 24V power source.
Specs in practice
- Max Pressure: 120 PSI / 8.2 BAR
- The maximum inflation capacity of the device.
- Max Duty Cycle: 8 min
- The maximum time the device can run continuously before needing a cool-down period.
- Rated Power: 100W
- The power consumption of the inflator.
Images and diagrams
- Fig 1: Shows the connection of the cigarette lighter adaptor to the vehicle's 12V outlet.
- Fig 2: Illustrates the digital display interface, including the unit switch button and pressure setting keys.
- Fig 3: Shows the LED light usage for night operation.
Model compatibility
- Designed for 12V supply source only.
- Recommended for Sedans and Hatchback vehicles.
- Not for use with 24V supply sources.
