User Manual for Scheppach 14-Piece Pneumatic Accessory Set 14-TLG
Quick guide for the Scheppach 14-piece pneumatic accessory set. Learn how to correctly attach adapters to the blow gun and tire inflator.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides instructions on how to correctly attach the various adapters included in the Scheppach 14-piece pneumatic accessory set. It covers the specific connection methods for the blow gun and the tire inflator.
Blow Gun Setup
The blow gun is designed to be used with the two silver extensions provided in the set. These extensions must be screwed directly onto the blow gun. Only these two specific silver extensions have the correct thread to fit the blow gun.
Tire Inflator Setup
The tire inflator uses the black hose, which must be screwed onto the inflator unit. The black hose thread is specific to the tire inflator. All adapters included in the set that feature a brass-colored thread are intended for use with the tire inflator. Note that these brass-threaded adapters are not screwed on; they are designed to be clipped into the black hose.
Universal Adapter Usage
The set includes a universal adapter which serves as a base for additional attachments. You can screw the vent adapter, screw valve adapter, and the large universal adapter onto this base unit to accommodate different valve types.
Manufacturer information
Scheppach
Practical help
Common problems
Adapter does not fit the blow gun
Ensure you are using the silver extensions. Only these have the correct thread for the blow gun.
Brass-threaded adapter will not screw into the hose
Do not attempt to screw these adapters. They are designed to be clipped into the black hose.
Before use
- Identify the blow gun and the tire inflator.
- Separate the silver extensions (for blow gun) from the brass-threaded adapters (for tire inflator).
- Ensure the black hose is securely screwed onto the tire inflator.
- Verify the correct adapter type for your specific valve or application.
Specs in practice
- Silver extensions
- Used exclusively for the blow gun; must be screwed on.
- Brass-threaded adapters
- Used exclusively for the tire inflator; must be clipped into the black hose.
- Universal adapter
- A base component that allows for the attachment of specific valve adapters.
Images and diagrams

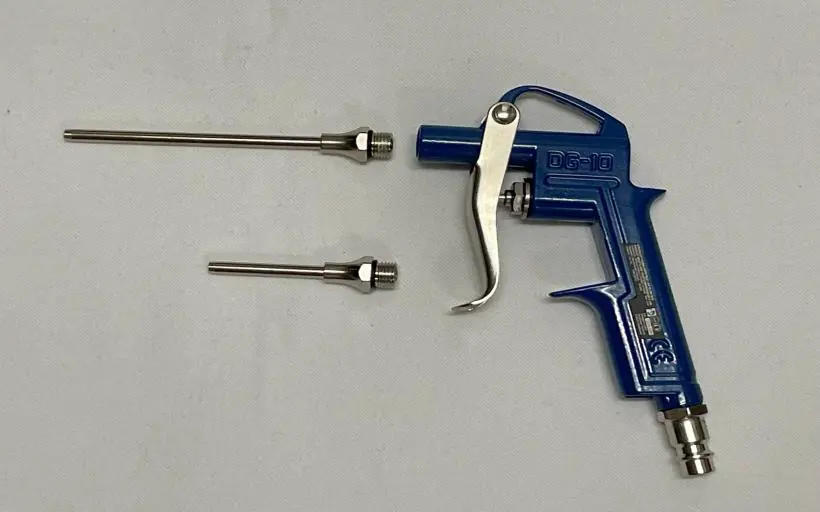

- The blow gun is shown with two silver extensions that screw into the nozzle.

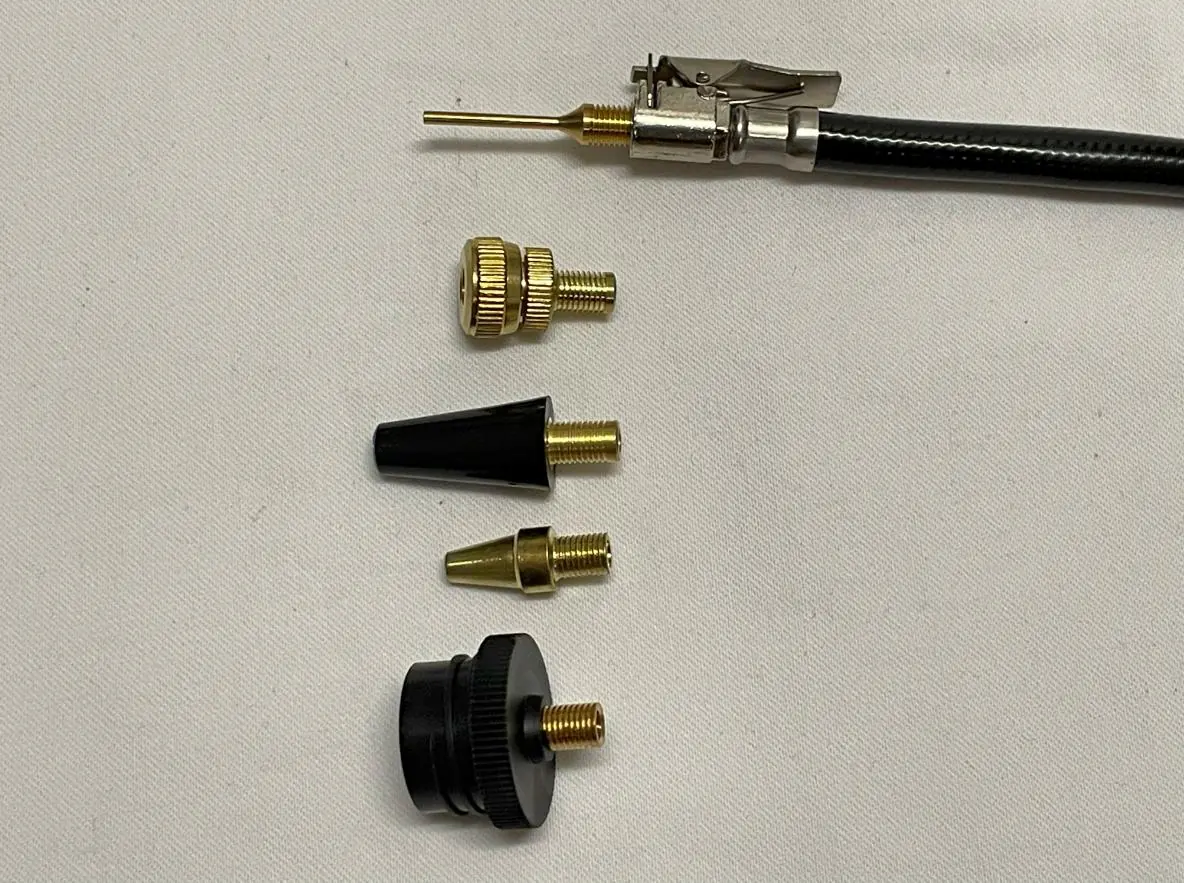

- The tire inflator is shown with a black hose; brass adapters clip into the end of this hose.
- The universal adapter assembly shows how smaller valve adapters attach to the main universal base.
Model compatibility
- Silver extensions are only compatible with the blow gun.
- Brass-threaded adapters are only compatible with the tire inflator hose.
- The black hose is only compatible with the tire inflator.
