User Manual for Blaupunkt Funline A-R G 01-E Active Antenna
Quick guide for the Blaupunkt Funline A-R G 01-E active on-glass antenna. Includes installation steps, mounting positions, safety precautions, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

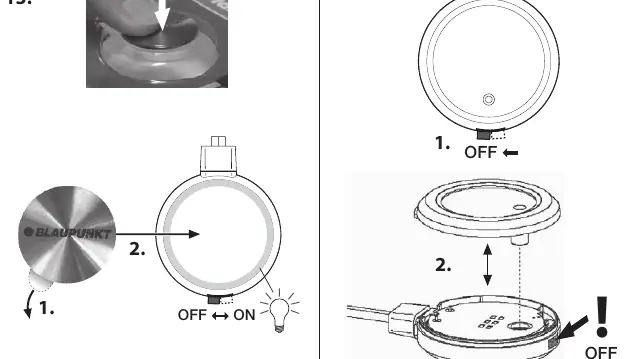

The Blaupunkt Funline A-R G 01-E is an active on-glass antenna designed for AM/FM radio reception. Key installation requirements include ensuring the windshield is not metallic-coated (heat-protection glass) and that the ambient temperature is between +15°C and +30°C during installation. The antenna features an integrated amplifier with switchable illumination to indicate operation.
Safety Notes
- Disconnect the negative terminal of the vehicle battery before starting installation.
- Observe vehicle manufacturer safety instructions regarding airbags, alarm systems, and trip computers.
- When drilling, ensure no vehicle components like batteries, cables, or fuse boxes are damaged.
- Use cable grommets for any holes with sharp edges.
- Lay antenna cables at a sufficient distance from other cable harnesses to prevent interference.
Scope of Delivery
The package includes the antenna unit with cable, mounting hardware (screws, washers, clips), and adhesive components for installation.
Installation
Mounting Position
The antenna is designed for windshield mounting. Ensure the chosen position is not on metallic-coated heat-protection glass, as this will block reception. Refer to the diagrams for the recommended placement (Position A or B).

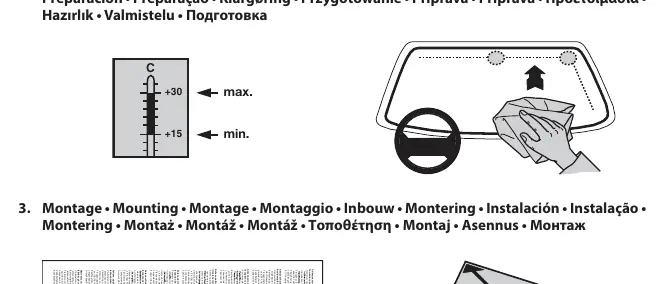

Preparation
Ensure the mounting surface is clean and the ambient temperature is between +15°C and +30°C. Clean the glass thoroughly before applying the adhesive components.
Mounting Steps
- Prepare the mounting surface by cleaning it.
- Apply the adhesive components according to the provided diagrams.
- Route the antenna cable carefully, ensuring it is kept away from other wiring harnesses.
- Connect the antenna cable to the radio unit.
- Connect the power supply (+12V) for the active amplifier.
- Secure the antenna unit firmly. Note: Once the adhesive pad makes contact, it cannot be repositioned.
Technical Data
- Frequency Range: AM (0.15–6.2 MHz), FM (76–108 MHz)
- Voltage: +13.5 V
- Current Input:< 100 mA
- Impedance: 50 Ohm
- Cable: RG 178, 2905 mm length
- Connectors: DIN 41585 (RF), 2.8 mm female flat receptacle (DC)
Recycling and Disposal
Please dispose of the product using the available waste return and collection systems in your area.
Manufacturer information
Blaupunkt
Practical help
Common problems
Antenna not working or poor reception
Verify the antenna is not mounted on a metallic-coated (heat-protection) window. Ensure the power supply (+12V) is correctly connected.
Interference in radio signal
Ensure the antenna cable is laid at a sufficient distance from other vehicle cable harnesses.
Adhesive not sticking
Ensure the mounting surface is clean and the ambient temperature is between +15°C and +30°C during installation.
Before use
- Disconnect the negative terminal of the vehicle battery.
- Verify the windshield is not metallic-coated.
- Ensure ambient temperature is between +15°C and +30°C.
- Clean the mounting area thoroughly.
- Check for potential obstacles when drilling holes.
Specs in practice
- Frequency Range
- Supports AM (0.15–6.2 MHz) and FM (76–108 MHz) bands.
- Current Input
- Less than 100 mA power consumption.
Images and diagrams
- Mounting Position: Shows correct placement on the windshield (A/B).
- Preparation: Illustrates cleaning and temperature requirements.
- Wiring: Shows the connection of the antenna cable and power supply.
- Installation Steps: Detailed sequence for applying the antenna and securing the cable.
Model compatibility
- Not suitable for metallic-coated heat-protection windows.
