User Manual for Bosch AdvancedRotak Electric Lawnmower
Quick guide for the Bosch AdvancedRotak electric lawnmower series. Includes safety instructions, operation, leaf collection, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the safe and efficient operation of the Bosch AdvancedRotak electric lawnmower series (650-790). Always read the full safety instructions before use.
Safety Notes
Warning: Keep bystanders at a safe distance. Be aware of sharp rotating blades; never touch them while they are moving. Always disconnect the power plug before performing any adjustments, cleaning, or if the cable becomes entangled.
Operation
Before starting, ensure the handle is unfolded and the working height is adjusted. Connect the extension lead securely. Always mow in daylight or good artificial light. Avoid mowing in wet grass or during bad weather conditions, especially if there is a risk of lightning.
Leaf Collection
The leaf collect blade is designed to pick up autumn leaves. For optimal results, set the cutting height to 70 mm and ensure the area is clear of foreign objects like stones, sticks, or glass.
Maintenance
Always wear gardening gloves when handling or working near the sharp blades. Regularly check that all nuts, bolts, and screws are tight to ensure safe working conditions. Keep the machine clean and free from debris before storage.
Troubleshooting
If the motor refuses to start, check the power supply, the fuse, and ensure the grass is not too long (max 30cm). If the machine vibrates excessively, check if the blade nut/bolt is loose and tighten to 17 Nm.
Manufacturer information
Bosch
Practical help
Common problems
Motor refuses to start
Check power supply, check fuse, or ensure grass height is not exceeding 30cm on the highest setting.
Excessive vibration/noise
Tighten the blade nut/bolt to 17 Nm or replace the blade if damaged.
Uneven cut or motor labours
Increase cutting height, replace blunt blade, or clear any clogging underneath the mower.
Machine functions intermittently
Check extension cable for damage or contact Bosch customer service.
Before use
- Inspect the area for foreign objects (stones, sticks, wires, bones).
- Check blades and blade bolts for wear or damage.
- Ensure all nuts, bolts, and screws are tight.
- Check extension cable for damage.
- Wear sturdy footwear and long trousers.
Specs in practice
- Cutting height
- Adjustable between 20 mm and 80 mm.
- Grassbox capacity
- 50 Liters.
Images and diagrams

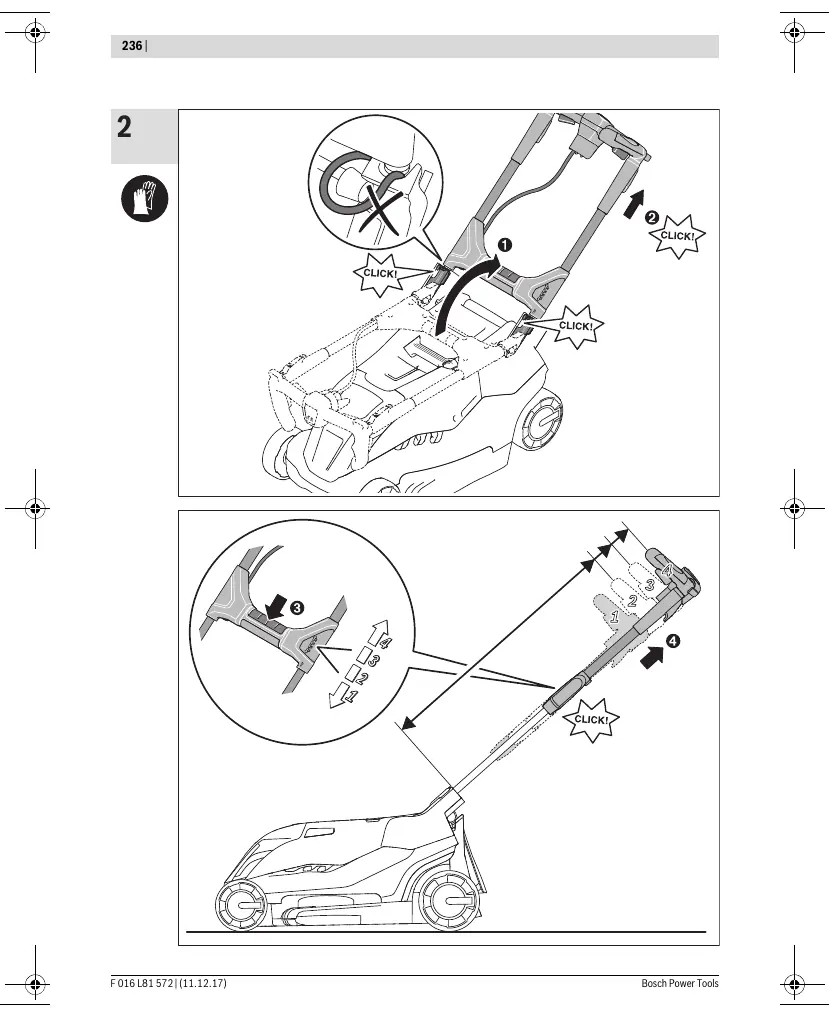

- Figure 2: Unfolding the handle and adjusting working height.

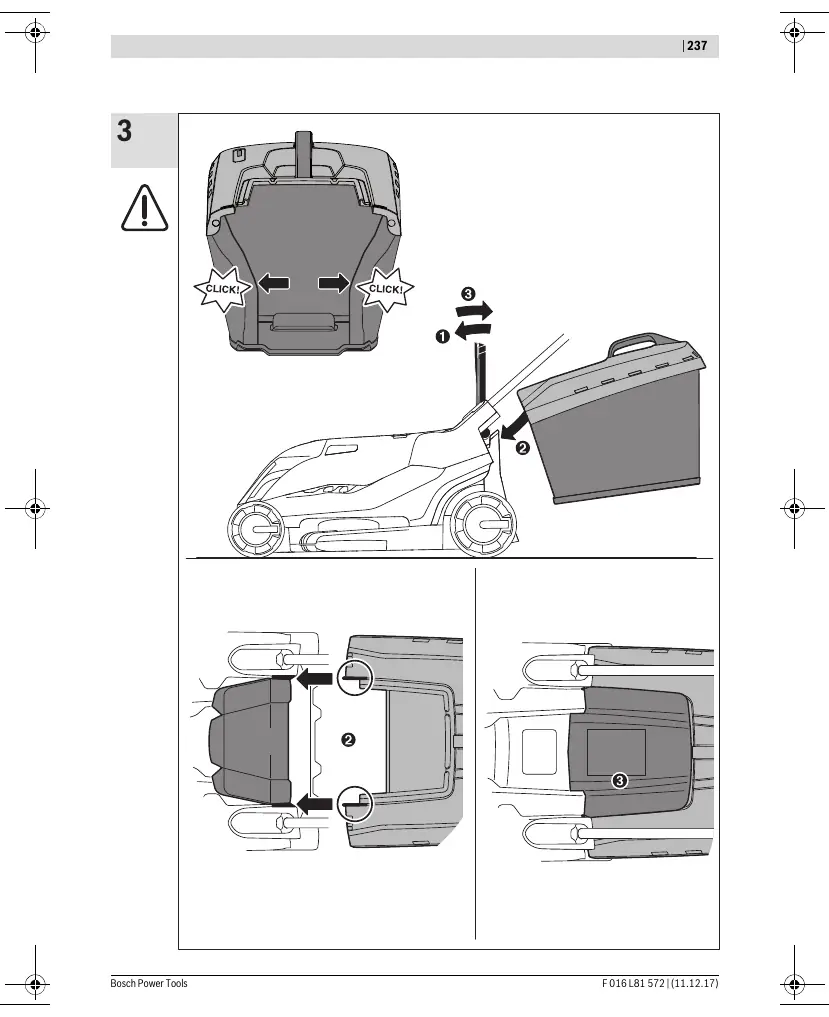

- Figure 3: Fitting and removing the grassbox.
- Figure 4: Adjusting the cutting height.

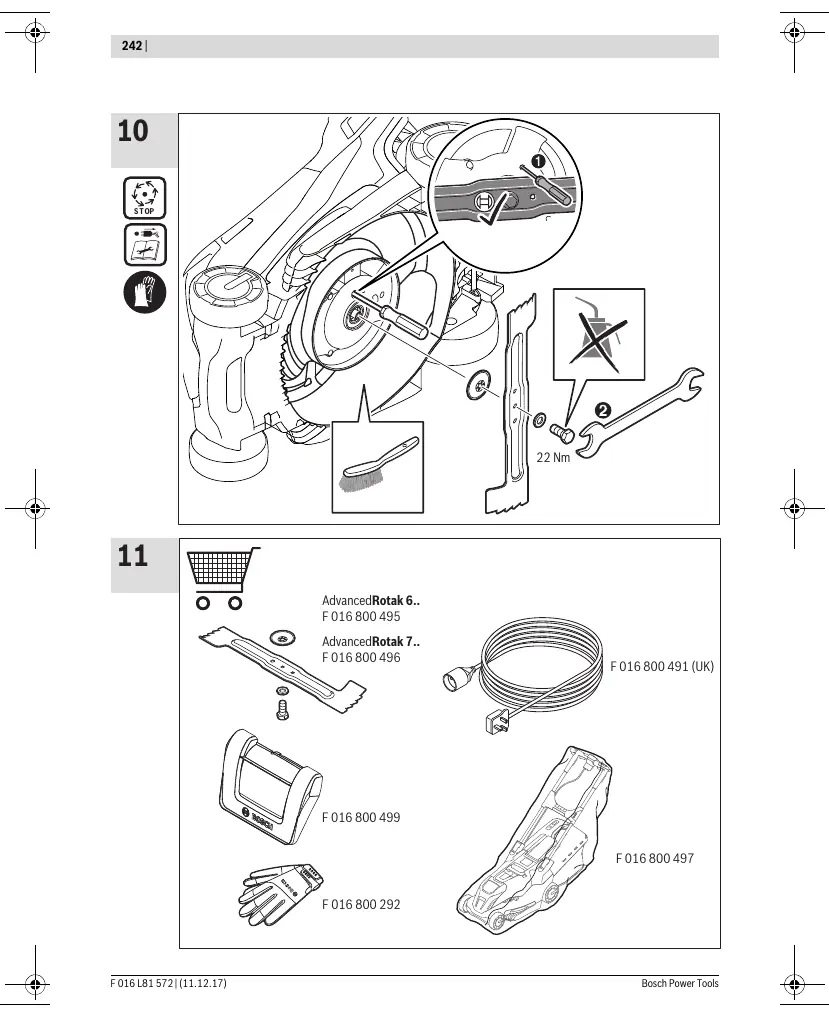

- Figure 10: Blade maintenance and replacement procedure.
Model compatibility
- Use only Bosch-approved replacement parts.
- Use extension cables compliant with EN 61242 / IEC 61242 or IEC 60884-2-7.
- Extension cables must be watertight and intended for outdoor use.
