User Manual for Bosch GKS 18V-57-2 GX Cordless Circular Saw
Quick guide and user manual for the Bosch GKS 18V-57-2 GX cordless circular saw. Includes setup, operation, safety, and maintenance instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This manual provides essential information for the Bosch GKS 18V-57-2 GX Professional circular saw. Always prioritize safety and follow the instructions for battery handling and blade maintenance.
Product Description
The GKS 18V-57-2 GX is a cordless circular saw designed for straight and mitre cuts in wood.
Assembly
Blade Installation: Place the saw on the motor housing. Press the spindle lock button (6). Use the hex key (30) to remove the clamping bolt (29). Retract the blade guard (15), remove the clamping flange (28), and install the new blade (27). Ensure the teeth direction matches the arrow on the guard.
Operation
Cutting Depth: Use the button (3) to adjust the depth. Use the white mark (41) for cuts with a guide rail and the red mark (42) for cuts without.
Mitre Angle: Loosen the clamping lever (10) and wing bolt (16), tilt the saw, and set the angle on the scale (9).
Stop Control: This safety feature stops the saw automatically when the cut is finished. Activate it via the user interface (22).
Maintenance
Keep the tool and ventilation slots clean. Regularly clean the area around the retracting blade guard (15) with a brush.
Manufacturer information
Bosch
Practical help
Common problems
Saw stops automatically
Stop Control function may be active or battery is empty/overheated.
Kickback
Ensure blade is sharp, workpiece is supported, and do not force the tool.
Before use
- Check battery charge level
- Ensure blade is sharp and correctly installed
- Check lower guard function
- Ensure workpiece is securely clamped
Specs in practice
- Rated voltage
- 18V DC
- No-load speed
- 5000 min-1
- Max cutting depth (0°)
- 57 mm
Images and diagrams
- A: Blade change

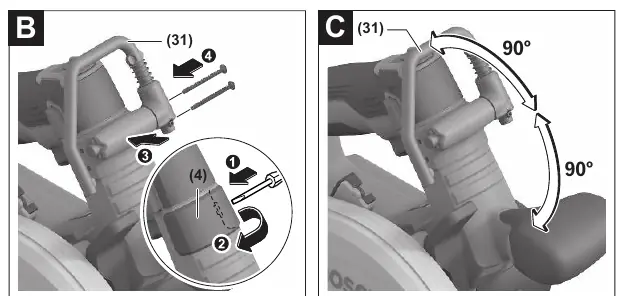

- B-C: Utility hook mounting
- D: Chip ejector
- E-F: Cutting depth adjustment
- G: Mitre angle adjustment
Model compatibility

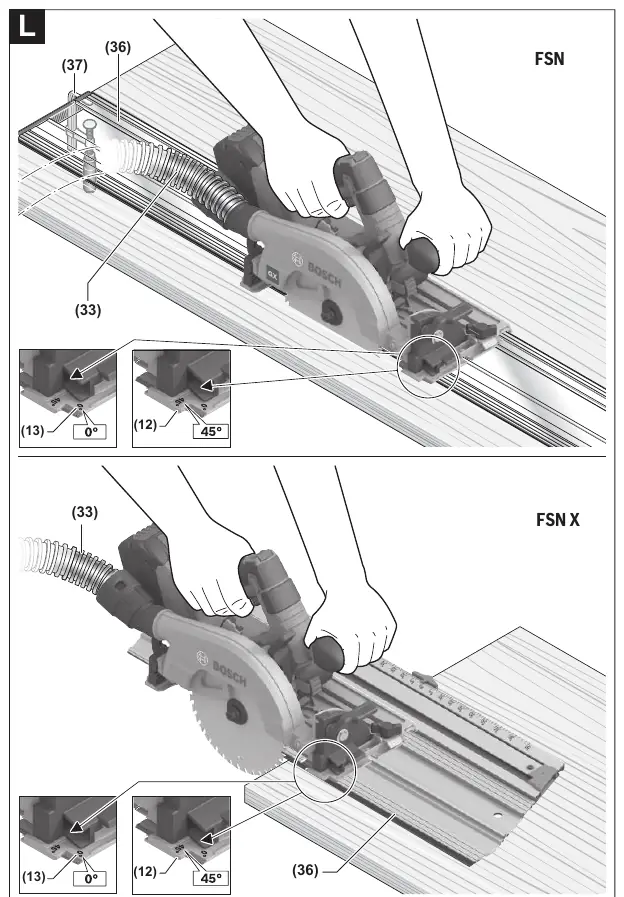

- Compatible with Bosch, Mafell, Festool, and Makita guide rail systems.
