Bosch GCD 18V-355 Cordless Metal Cut-Off Saw User Manual

Quick guide from the manual

This manual provides essential information for the safe and efficient operation of the Bosch GCD 18V-355 cordless metal cut-off saw. Always read the full safety instructions before use.

Product Description

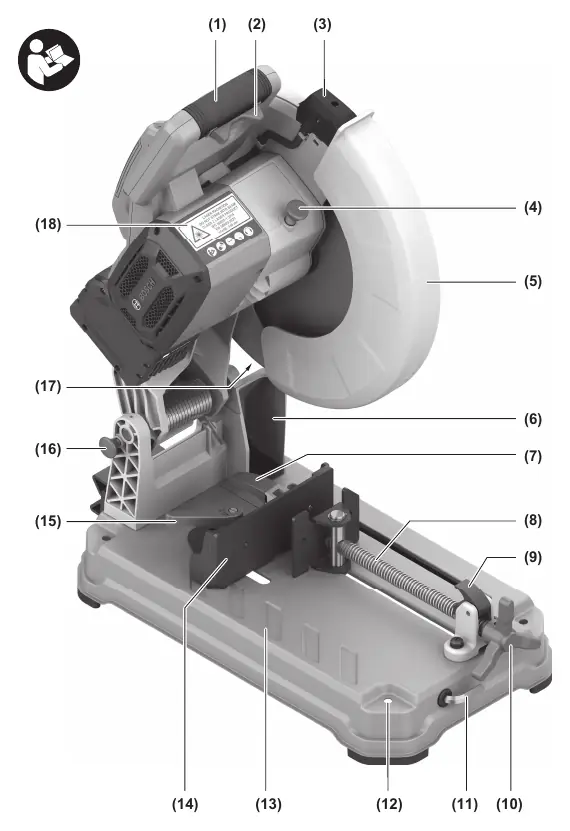

The GCD 18V-355 is a stationary power tool designed for cutting metal materials using saw blades, without the use of water. It features a laser guide for precise cutting.

Mounting

For safe handling, the tool must be mounted on a flat, stable work surface (e.g., a workbench) using the mounting holes (12). If using a Bosch GTA saw stand, follow the specific instructions provided with the stand.

Battery Operation

Use only the chargers listed in the technical data. Insert the charged battery into the battery holder until it clicks into place. To remove, press the battery release button and pull the battery out.

Changing the Saw Blade

Warning: Remove the battery before any work on the tool. Wear protective gloves when handling the saw blade.

1. Bring the tool to the work position.
2. Swivel the retracting blade guard (5) to the back and hold it.
3. Press the spindle lock (4) and turn the hex socket screw (27) using the hex key (11) until it engages.
4. Remove the clamping flange (28) and the saw blade (29).
5. Install the new blade, ensuring the cutting direction of the teeth matches the arrow on the protective cover.

Operation

Transport safety lock (16): Pull out to unlock for work; push in to lock for transport.

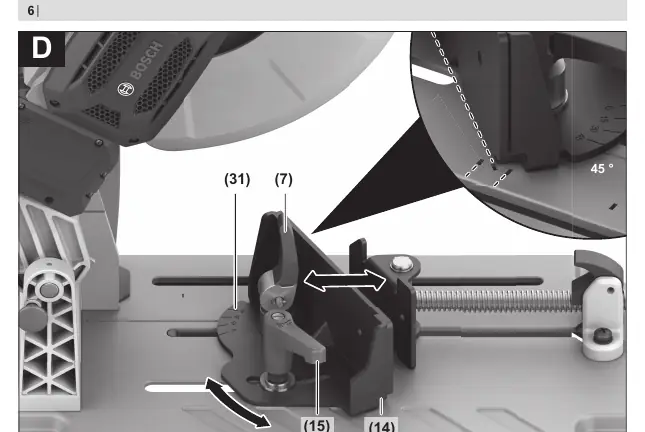

Adjusting the Mitre Angle: Loosen the clamping handle (15), turn the angle guide (14) to the desired angle on the scale (31), and retighten the handle.

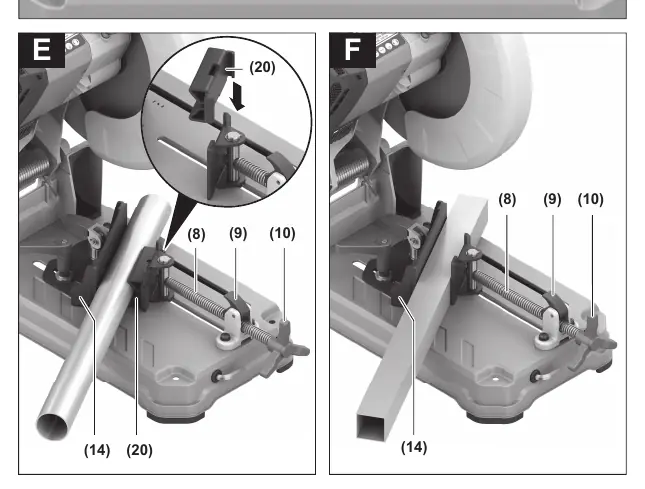

Clamping the Workpiece: Use the locking spindle (8) and tubular jaw (20) to secure round or square workpieces against the angle guide (14).

Working Advice

Marking the Cutting Line: Turn on the laser beam using switch (26). Align your mark on the workpiece with the right-hand edge of the laser line.

Dust/Chip Extraction: Pull out the chip drawer (21) and empty it completely when full.

Maintenance

Clean the air vents regularly. Ensure the retracting blade guard (5) moves freely. For repairs, contact a Bosch after-sales service point.
