This manual covers the operation of the Bosch EasyDrill 18V-38 and EasyImpact 18V-38 cordless drill/drivers. Always ensure the battery is removed before performing any maintenance or changing tools.
Product Description
The tool is designed for driving and loosening screws and for drilling in wood, metal, ceramic, and plastic. The EasyImpact 18V-38 model is also designed for impact drilling in brick.
Assembly

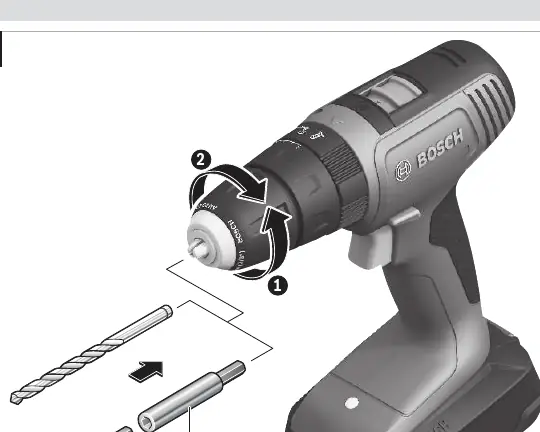

Changing the tool: The tool holder (1) is locked when the on/off switch (10) is not pressed. Open the keyless chuck (2) by turning it in the direction of rotation ➊, insert the tool, and tighten the sleeve in direction ➋ until it stops clicking.
Operation
Direction of rotation: Use the rotational direction switch (9) to change the direction. Right rotation for drilling/screwdriving; left rotation for loosening screws.
Speed adjustment: Adjust speed by varying the pressure on the on/off switch (10).
Torque preselection: Use the torque presetting ring (3) to select the required torque in 20 stages.
Mechanical gear selection: Use the gear selector switch (5) to choose between Gear I (low speed, high torque) and Gear II (high speed, low torque).
Maintenance
Keep the tool and ventilation slots clean for safe operation. Remove the battery before transport or storage.
Manufacturer information
Bosch
Practical help
Common problems
Tool stops during operation
Check for overload or battery temperature. Let the tool cool down.
Battery life is short
Battery may be worn out and needs replacement.
Tool does not start
Ensure battery is fully charged and correctly inserted.
Before use
- Charge the battery fully before first use.
- Ensure the tool is switched off before inserting the battery.
- Check that the correct bit is securely inserted in the chuck.
- Verify the rotational direction switch is set correctly.
Specs in practice
- Rated voltage
- 18V DC power supply.
- No-load speed
- Speed of the tool without a load (0-430 rpm in 1st gear, 0-1630 rpm in 2nd gear).

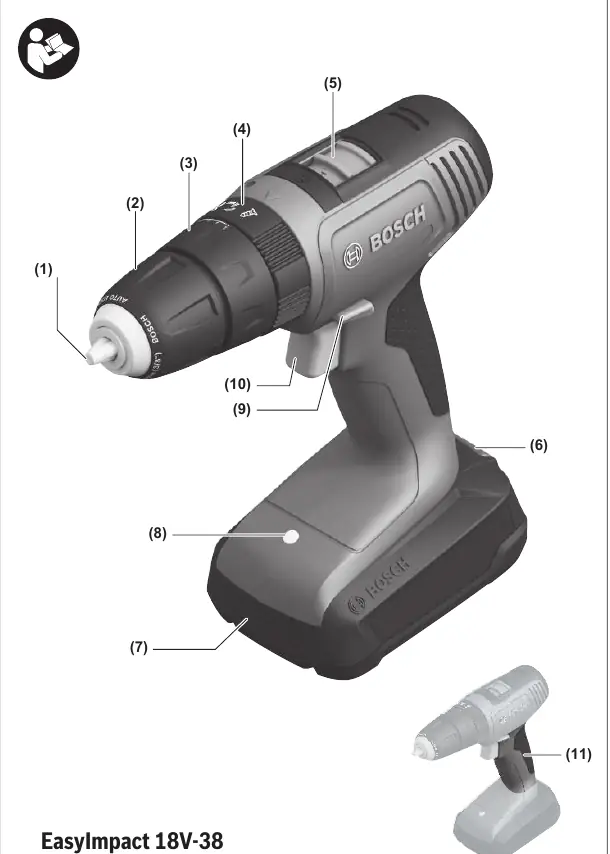

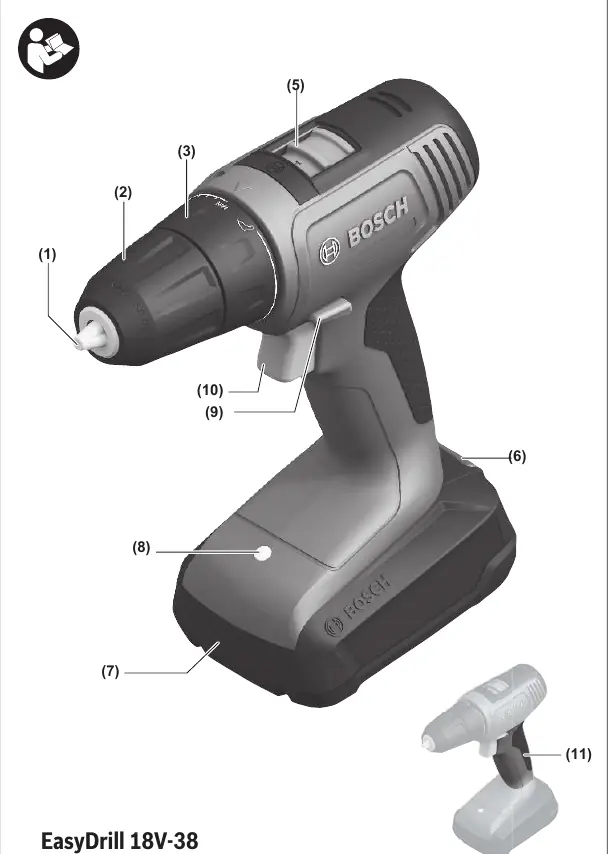

Images and diagrams
- (1) Tool holder
- (2) Keyless chuck
- (3) Torque presetting ring
- (4) Operating mode ring (EasyImpact only)
- (5) Gear selector
Model compatibility
- Compatible with Bosch PBA 18V batteries.
- Not compatible with AL 1814 CV, AL 1820 CV, AL 1860 CV, AL 2215 CV chargers.
