Bosch GKT 18V-52 GC Cordless Plunge Saw User Manual
Quick guide for the Bosch GKT 18V-52 GC cordless plunge saw, covering safety instructions, operation, blade replacement, and maintenance.
Table of contents
Quick guide from the manual
The Bosch GKT 18V-52 GC is a cordless plunge saw designed for straight and miter cuts in wood, plastics, and light building materials. It is not intended for cutting ferrous metals. The tool features Bluetooth connectivity for data transfer when used with the GCY 42 / GCY 42 NC module.
Safety Instructions
Always wear personal protective equipment, including eye protection and a dust mask. Keep hands away from the cutting area and the blade. Do not reach underneath the workpiece. Adjust the cutting depth to the thickness of the workpiece. Ensure the guard closes properly before each use.
Operation
To start the tool, press the lock-off switch (2) and then the on/off switch (1). The plunge function is unlocked when the lock-off switch is pressed. Release the on/off switch to stop the tool.
Setting Cutting Depth
Push the slider (36) to set the required cutting depth on the scale (10). The indicator (7) shows the depth when using a Bosch guide rail.
Adjusting Miter/Bevel Angle
Loosen the wing bolts (13) and (16), swivel the saw to the desired angle on the scale (11), and retighten the bolts. Do not exert force on the auxiliary handle (4) during this process.
Blade Change
Remove the battery before any work on the tool. Flip the lever (3) forward, slide the lock-off switch (2) forward, and press the saw into the base plate (8) until it engages in the blade change position. Press and hold the spindle lock button (28) and use the hex key (9) to remove the clamping bolt (23) and flange (24).
Maintenance
Keep the tool and ventilation slots clean. The protective guard (15) must move freely and close automatically. Regularly clean the chip ejector (18) and the dust/chip bag (51).
Manufacturer information
Bosch
Practical help
Common problems
Tool does not start
Check battery charge status and ensure the battery is properly inserted.
Poor cut quality
Check if the saw blade is dull or damaged; replace if necessary. Ensure the blade is suitable for the material.
Chip ejector clogged
Regularly clean the chip ejector (18) and ensure the dust extraction system is working correctly.
Before use
- Ensure the battery is fully charged.
- Check that the saw blade is sharp and suitable for the material.
- Verify the protective guard moves freely and closes automatically.
- Set the correct cutting depth for the workpiece.
- Ensure the workpiece is securely clamped.
Specs in practice
- Rated voltage
- 18V DC, compatible with Bosch GBA 18V and ProCORE18V batteries.
- Max. cutting depth (0°)
- 52 mm maximum depth when cutting at a 0° angle.
- Saw blade diameter
- 140 mm diameter blade required.
Images and diagrams
- (1) On/off switch
- (3) Lever for saw blade change
- (10) Cutting depth scale

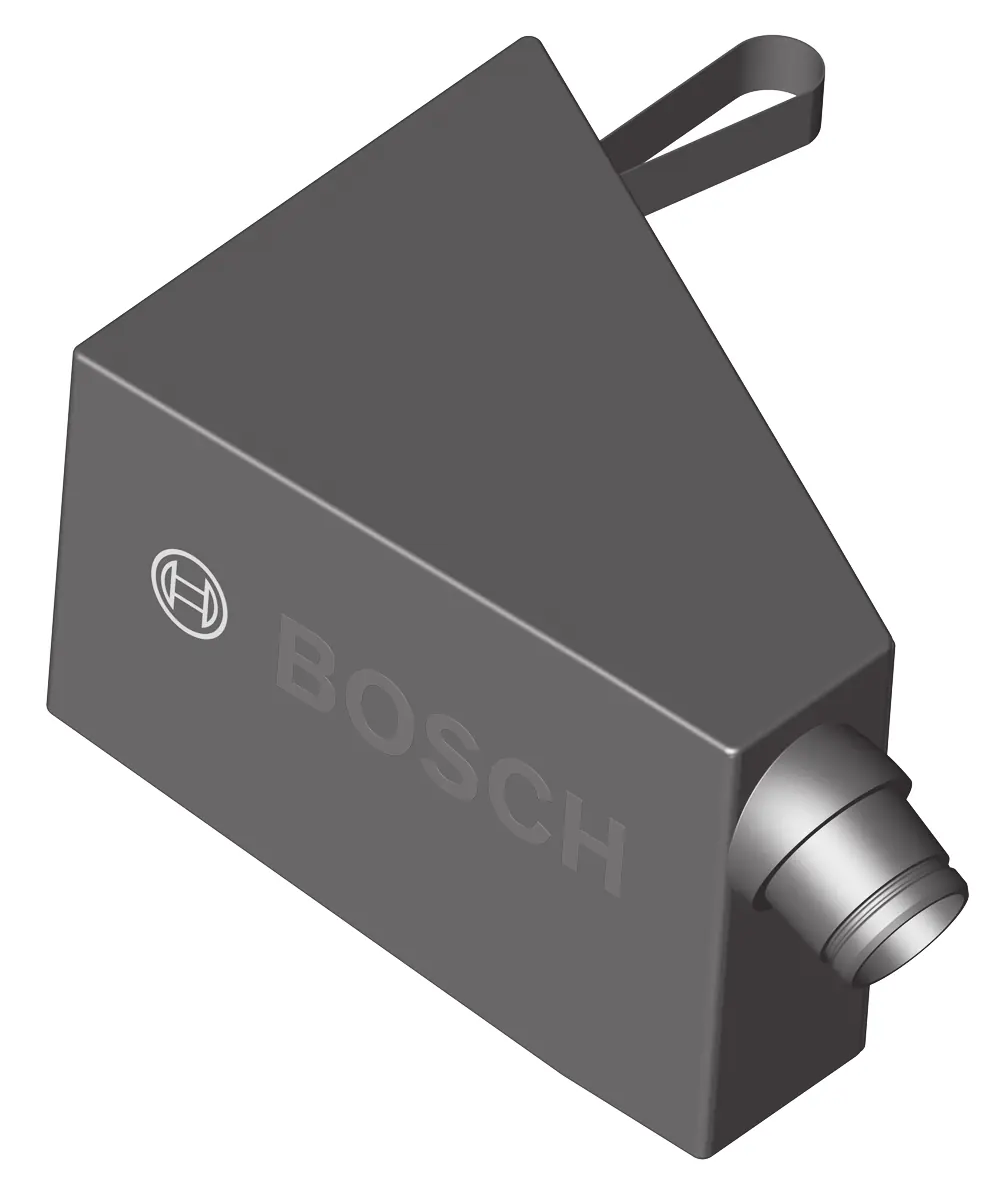

- (18) Chip ejector
- (20) User interface
Model compatibility
- Compatible with Bosch FSN guide rail system.
- Compatible with Bluetooth Low Energy Module GCY 42 / GCY 42 NC.
