User Manual for Bosch GAS 12V Professional Cordless Vacuum Cleaner

Quick guide from the manual

To get started with your Bosch GAS 12V Professional vacuum cleaner, ensure the battery is fully charged. Insert the battery into the battery port until it clicks. Before vacuuming, verify that the filter assembly is securely installed and undamaged. To operate, press the On/Off button. After use, empty the dust cup and clean the filter assembly to maintain optimal suction performance.

Safety Notes

Read all safety warnings and instructions. Failure to follow warnings may result in electric shock, fire, or serious injury. This vacuum is not intended for use by children or persons with physical, sensory, or mental limitations unless supervised. Do not vacuum hazardous materials such as wood dust (beech/oak), masonry dust, or asbestos. Use only indoors and keep away from liquids to prevent electric shock.

Product Description

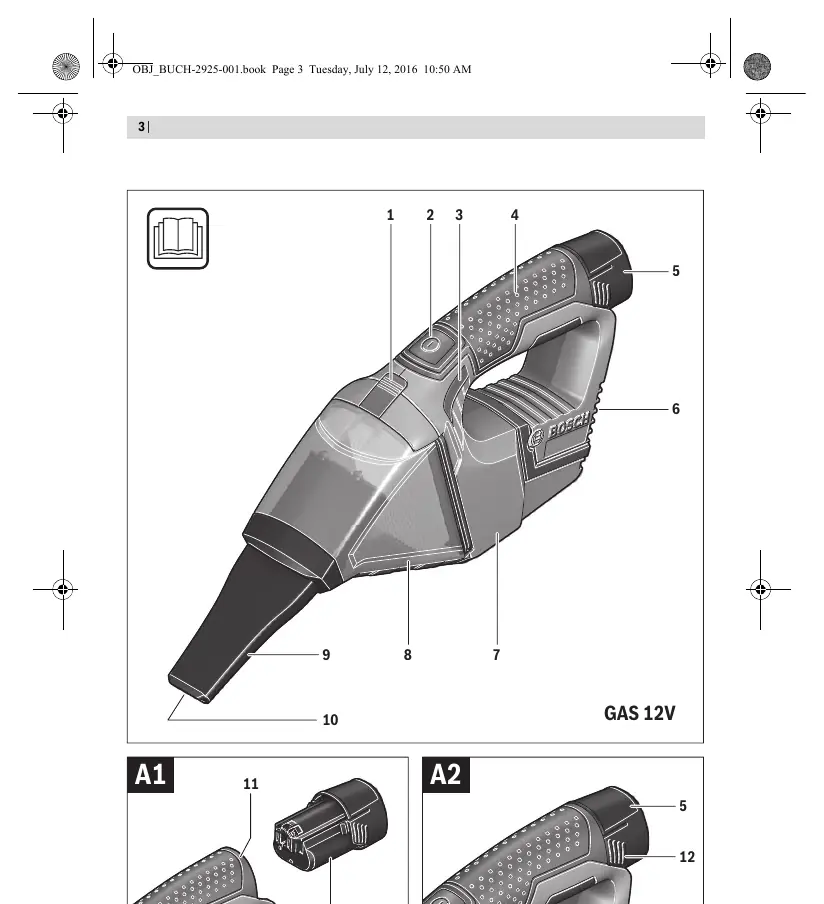

The vacuum cleaner is designed for dry vacuuming. Key components include the dust cup release button, On/Off button, battery charge indicator, handle, motor housing, dust cup, crevice nozzle, and filter assembly.

Assembly

Battery Charging: Use only recommended Bosch chargers. The battery is supplied partially charged; charge it fully before first use. The Li-ion battery is protected against deep discharge by Electronic Cell Protection (ECP).

Battery Insertion/Removal: Slide the battery into the battery port until it locks. To remove, press the unlocking buttons and pull the battery out.

Mounting the Crevice Nozzle: The crevice nozzle can be connected directly to the dust chamber. Insert it firmly into the intake port with the mark facing down.

Operation

To switch on the vacuum cleaner, press the On/Off button. To switch off, press the button again. Always ensure the filter assembly is securely installed before vacuuming.

Maintenance and Cleaning

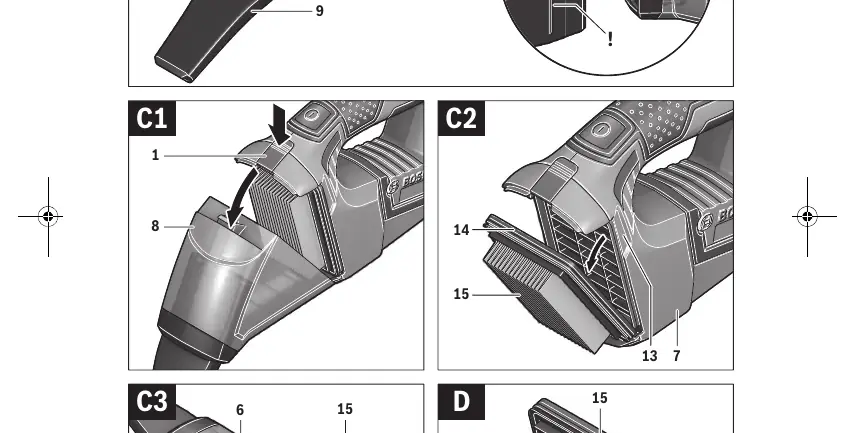

Cleaning the Dust Cup: Clean the dust cup after each use. Hold the vacuum slightly downward to prevent dust from falling out. Press the release button to remove the dust cup from the motor housing. Empty the dust cup over a waste bin. Clean with a moist cloth if necessary.

Cleaning the Filter Assembly: Do not wet clean the filter assembly. Remove the dust cup, then pull the filter assembly out of the motor housing. Brush the flaps of the pleated filter with a soft broom.

Troubleshooting

If suction performance is insufficient, check the following: 1. Is the dust cup full? 2. Is the pleated filter clogged with dust? 3. Is the battery capacity too low? If performance does not improve, contact customer service.

Technical Data

The vacuum cleaner has a container volume of 0.4 liters, a maximum vacuum of 45 hPa, and a maximum airflow of 15 l/s. It is compatible with GBA 12V and GBA 10.8V batteries.
