User Manual for Bosch EasyHedgeCut 12-35 Cordless Hedge Trimmer
Quick guide and user manual for the Bosch EasyHedgeCut 12-35 cordless hedge trimmer. Includes setup, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This hedge trimmer is designed for trimming hedges and bushes in domestic gardens. Before first use, ensure the battery is fully charged.
- Charging: Connect the charger to the mains and insert the battery. The indicator light will signal the charging status.
- Operation: Insert the charged battery into the tool. Hold the tool firmly with both hands and use the switch to operate.
- Safety: Always wear protective gloves and eye protection. Keep the tool away from rain and moisture.
Safety Notes
Read all safety warnings and instructions. Failure to follow these may result in electric shock, fire, or serious injury. Keep the work area clean and well-lit. Do not operate in explosive atmospheres.
Operation
The tool features an anti-blocking mechanism. If the blade stalls on tough material, the motor load increases. The intelligent micro-electronics sense this and repeatedly reverse the motor to cut through the material.
Maintenance

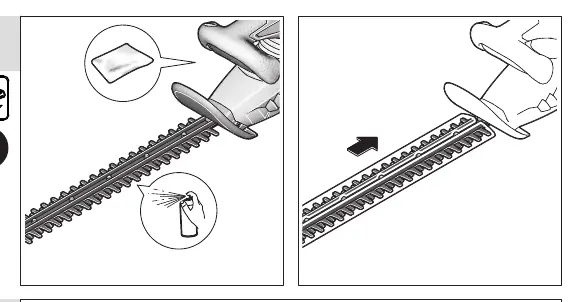

Remove the battery before any adjustment or cleaning. Always wear gardening gloves when handling the blades. Lubricate the cutting blade with protective spray before storage and before use.
Troubleshooting
If the hedge trimmer does not operate, check if the battery is charged and if the safety switch is correctly activated. If the blades run hot, they may be blunt or require lubrication.
Manufacturer information
Bosch
Practical help
Common problems
Hedge trimmer does not operate
Charge the battery and ensure the safety switch is correctly activated.
Blades run slow or anti-blocking feature fails
Charge the battery or allow it to warm to room temperature (within 0-45°C).
Cutting blade runs hot
The blade may be blunt, have dents, or require lubrication. Sharpen or inspect the blade and apply lubricant spray.
Before use
- Charge the battery fully
- Inspect the hedge area for wires and foreign objects
- Check blades for wear or damage
- Wear protective gloves and safety glasses
- Ensure all guards are fitted
Specs in practice
- No-load stroke rate
- 2400 min-1
- Cutting length
- 350mm or 450mm depending on the model
- Tooth opening
- 15mm
Images and diagrams

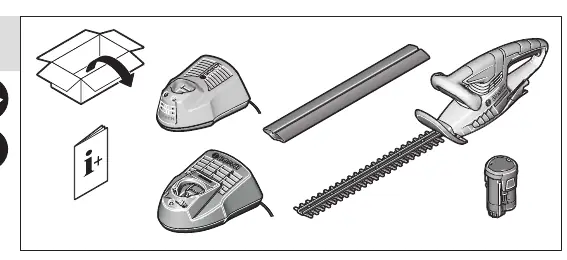

- Figure 1: Delivery scope showing the trimmer, battery, and charger
- Figure 2: Inserting the battery into the tool
- Figure 3: Switching the tool on

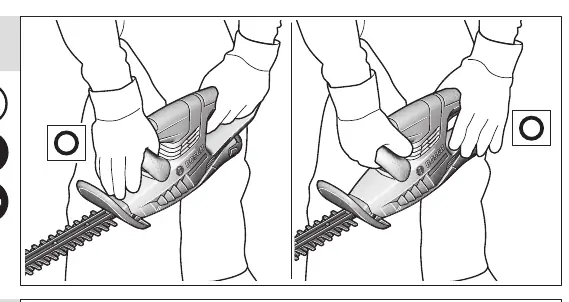

- Figure 4: Switching the tool off

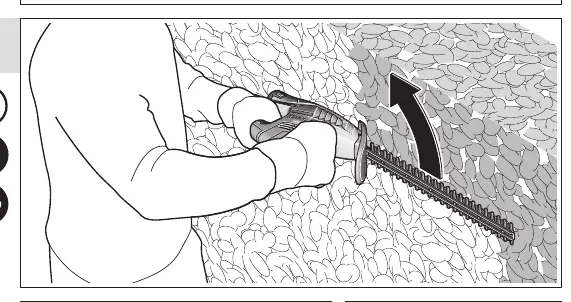

- Figure 5: Working advice for hedge trimming
Model compatibility
- Use only Bosch battery packs intended for this machine
- Use only the supplied Bosch battery charger
