User Manual for Bosch EasyMower 18V-32-200 Lawnmower
Quick guide for the Bosch EasyMower 18V-32-200. Includes assembly, operation, battery charging, maintenance, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bosch EasyMower 18V-32-200 is a cordless lawnmower designed for domestic lawn mowing. Before use, ensure the area is clear of foreign objects like stones, wires, or sticks. Always wear protective footwear and long trousers during operation. The machine features an isolator key that must be removed before any maintenance, cleaning, or when leaving the machine unattended.
Assembly
The lawnmower requires assembly before first use. Refer to the figures in the manual for specific steps:
- Handle mounting: Follow the steps in Figure B to attach the handle.
- Grassbox assembly: Snap the grassbox parts together as shown in Figure C.
- Fitting the grassbox: Attach the grassbox to the mower as shown in Figure D.
Operation

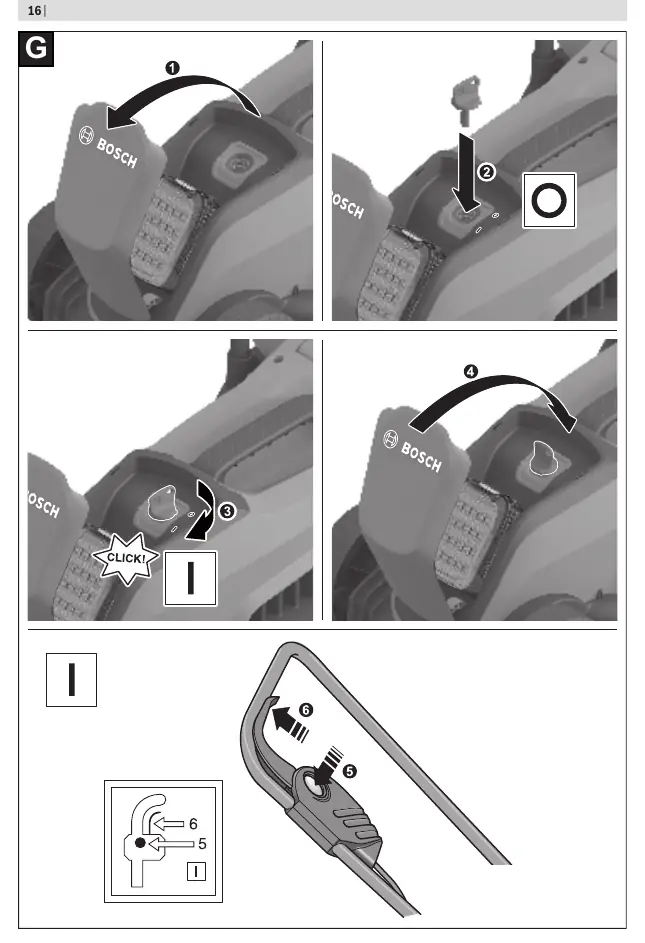

To operate the lawnmower:
- Insert the charged battery into the battery compartment.
- Insert the isolator key into the slot.
- Switch on the motor using the switch on the handle.
- When finished, switch off the motor, remove the isolator key, and remove the battery.
Cutting height adjustment: The cutting height can be adjusted to 20, 40, or 60 mm. Refer to Figure E for the adjustment procedure.
Battery and Charging
The mower uses Bosch 18V lithium-ion batteries. The battery is supplied partially charged. Charge the battery fully before first use using the supplied charger. The charger features LED indicators to show the charging status. Do not charge the battery outside the recommended temperature range (0 °C to 35 °C).
Maintenance and Cleaning
Always wear gardening gloves when handling or working near the sharp blades. Before any maintenance, remove the battery and the isolator key. Keep the product clean and free of residue. Check the grass bag frequently for wear. If the blade is blunt or damaged, it must be replaced (see Figure K). Ensure all nuts, bolts, and screws are tight for safe operation.
Troubleshooting
If the motor refuses to start, check if the battery is charged, the isolator key is inserted correctly, or if the grass is too long (max 15 cm). If the machine leaves a ragged finish, the cutting height may be too low or the blade may be blunt. If there is excessive vibration, check if the blade nut/bolt is loose or the blade is damaged.
Manufacturer information
Bosch
Practical help
Common problems
Motor refuses to start
Check if the battery is charged, the isolator key is inserted correctly, or if the grass is too long (max 15 cm). Allow the motor to cool if the protector has activated.
Machine leaves a ragged finish
Increase the cutting height or replace/sharpen the cutting blade.
Excessive vibration or noise
Tighten the blade nut/bolt (17 Nm) or replace the damaged cutting blade.
Blade not rotating
Check for obstructions under the mower (wear gloves) or contact customer service if the belt drive is separated.
Before use
- Check the area for wildlife, stones, sticks, and wires.
- Ensure the blade and blade assembly are not worn or damaged.
- Check the grass catcher for wear or deterioration.
- Ensure the battery is fully charged.
- Wear non-slip protective footwear and long trousers.
Specs in practice
- Cutting width
- 32 cm
- Height of cut
- 20 / 40 / 60 mm
- Battery type
- PBA 18V (4.0 Ah, 5.0 Ah, 6.0 Ah)
Images and diagrams
- Figure A: Delivery scope and components.

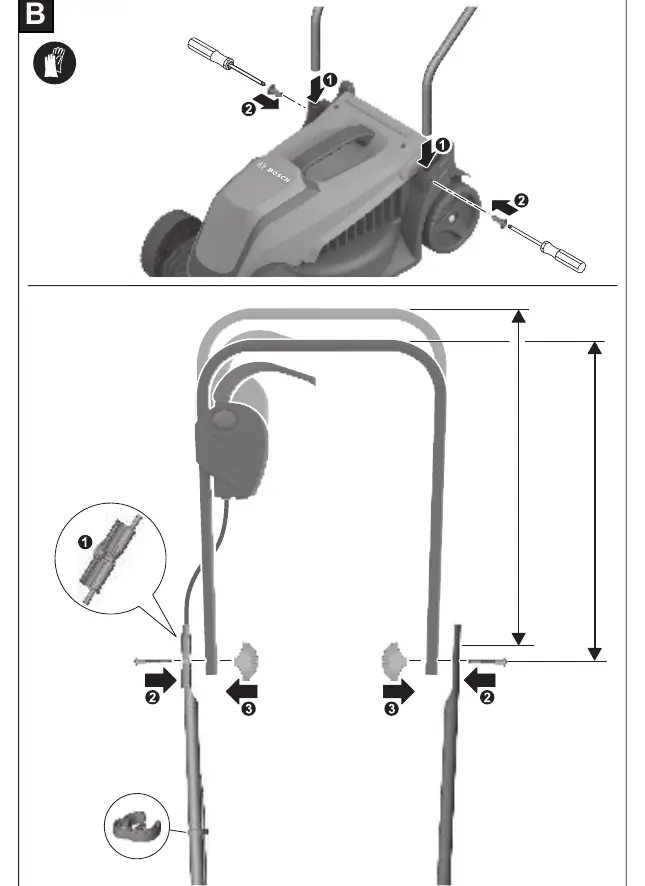

- Figure B: Handle mounting procedure.

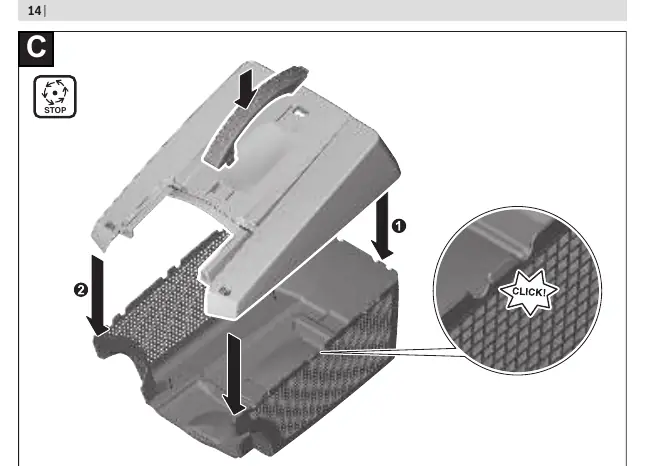

- Figure C: Grassbox assembly.

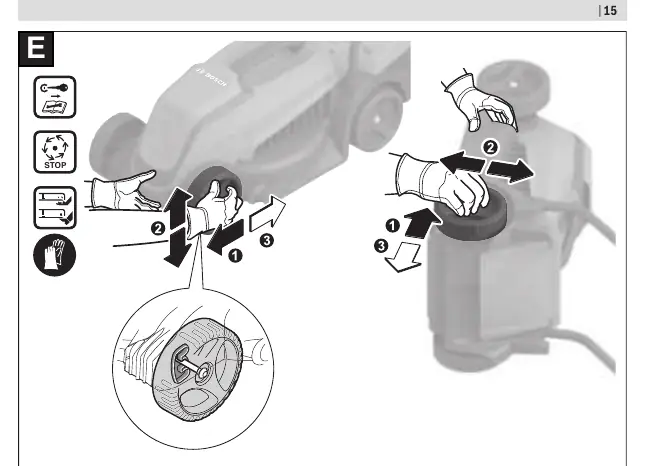

- Figure E: Setting the cutting height.

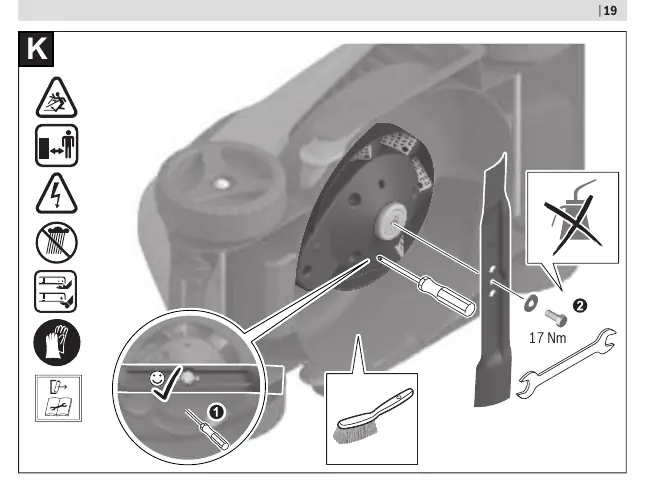

- Figure K: Blade maintenance and replacement.
Model compatibility
- Compatible with Bosch PBA 18V lithium-ion batteries.
- Use only chargers specified by the manufacturer (e.g., AL 1810 CV, AL 1830 CV, AL 1880 CV).
