User Manual for Bosch POF 1200 AE and POF 1400 ACE Router

Quick guide for the Bosch POF 1200 AE and POF 1400 ACE routers. Learn about setup, depth adjustment, routing techniques, and maintenance.

Table of contents

Manual images

Click an image to enlarge
Main components of the POF 1200 AE and POF 1400 ACE routers. Page 3 Inserting the router bit (Figure A). Page 4 Mounting the dust extraction adapter (Figure B). Page 4 Routing with a parallel guide (Figure G). Page 5 Routing with a router compass (Figure M). Page 6 Routing with a guide bushing (Figure O). Page 6

Quick guide from the manual

This manual provides instructions for the Bosch POF 1200 AE and POF 1400 ACE routers. These tools are designed for routing grooves, edges, profiles, and elongated holes in wood, plastic, and light building materials. Always ensure the workpiece is securely clamped and the router bit is clean and undamaged before operation.

Product Overview

The router features include a spindle lock button, depth stop, parallel guide, and speed preselection thumbwheel. The POF 1400 ACE model additionally features Constant Electronic control and a work light.

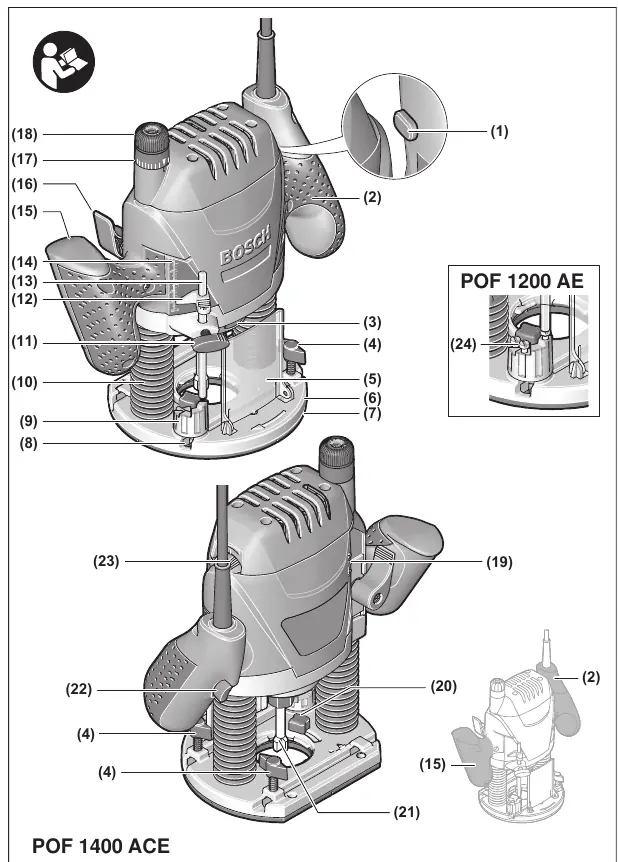

Main components of the POF 1200 AE and POF 1400 ACE routers.
Main components of the POF 1200 AE and POF 1400 ACE routers.

Assembly

Inserting the router bit:

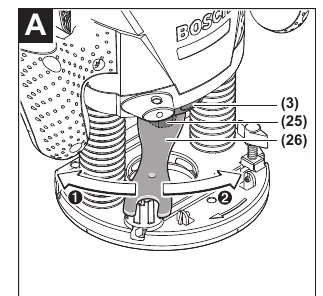

Inserting the router bit (Figure A).
Inserting the router bit (Figure A).

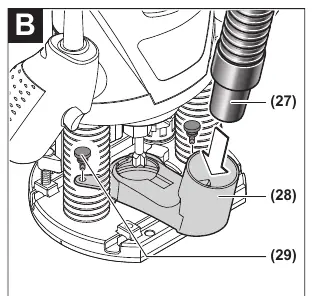

Mounting the dust extraction adapter (Figure B).
Mounting the dust extraction adapter (Figure B).
  • Wear protective gloves.
  • Press and hold the spindle lock button.
  • Loosen the cap nut with the open-ended spanner (19 mm).
  • Insert the router bit at least 20 mm into the collet.
  • Tighten the cap nut securely.

Dust Extraction: Attach the dust extraction adapter to the base plate using the two knurled screws. Connect an extraction hose (35 mm diameter) to the adapter and a suitable vacuum cleaner.

Operation

Switching On/Off: First, press the lock-off button, then press and hold the on/off switch. The switch cannot be locked for safety reasons.

Setting the routing depth:

  1. Place the router on the workpiece.
  2. Set the step buffer to the lowest step.
  3. Loosen the wing bolt on the depth stop.
  4. Lower the router until the bit touches the workpiece surface.
  5. Press the depth stop down until it rests on the step buffer and set the index mark to 0.
  6. Adjust the depth stop to the desired depth and tighten the wing bolt.

Working Advice

Routing Direction: Always route against the direction of the router bit's rotation (up-cut). Routing in the same direction (down-cut) can cause the tool to be pulled out of your hands.

Routing with a parallel guide (Figure G).
Routing with a parallel guide (Figure G).

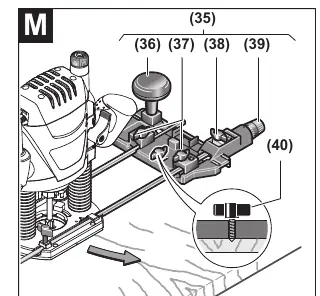

Routing with a router compass (Figure M).
Routing with a router compass (Figure M).
Routing with a guide bushing (Figure O).
Routing with a guide bushing (Figure O).

Routing Techniques: The manual covers routing with an auxiliary guide, edge/profile routing, parallel guide routing, curve routing, compass routing, guide rail routing, and guide bushing routing.

Maintenance

Keep the tool and ventilation slots clean for safe operation. In extreme conditions, use a dust extractor and clean the slots frequently with a brush. If the power cord needs replacement, it must be done by an authorized Bosch service center.

Manufacturer information

Bosch

Brand profile
Manufacturer website https://www.bosch.com Support https://www.bosch.com/contact

Practical help

Common problems

Router bit vibrates excessively

Check if the bit is blunt, damaged, or not properly secured in the collet.

Router bit does not fit in the collet

Ensure the bit shank diameter matches the collet size (6mm, 8mm, or 1/4 inch).

Poor dust extraction

Clean the dust extraction adapter regularly to prevent blockages.

Before use

  • Check that the mains voltage matches the rating plate.
  • Ensure the router bit is clean and undamaged.
  • Verify the bit is inserted at least 20mm into the collet.
  • Check that the chip protection is correctly mounted.
  • Ensure the workpiece is securely clamped to a stable platform.

Specs in practice

Rated power input
1200W for POF 1200 AE, 1400W for POF 1400 ACE.
No-load speed
11000–28000 min-1, adjustable via the thumbwheel.
Router cage stroke
55 mm maximum depth adjustment.

Images and diagrams

  • Page 3 illustrates the main components of both router models.
  • Pages 4-6 provide visual guides for assembly, dust extraction, and various routing accessories.

Model compatibility

  • POF 1400 ACE includes Constant Electronic and a work light.
  • POF 1200 AE uses adjusting screws for the step buffer.
