Spare Parts Guide for Bosch GAS 18V-10L Cordless Vacuum Cleaner
A comprehensive spare parts reference guide for the Bosch GAS 18V-10L cordless vacuum cleaner, including detailed exploded-view diagrams and a complete list of components for maintenance and repair.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as an official spare parts catalog for the Bosch GAS 18V-10L cordless vacuum cleaner. It provides exploded-view diagrams to help identify internal and external components, along with a corresponding list of parts for maintenance and repair purposes. Use this guide to locate specific part numbers when ordering replacements.
Device components and exploded views
The manual provides two primary diagrams illustrating the assembly of the vacuum cleaner:

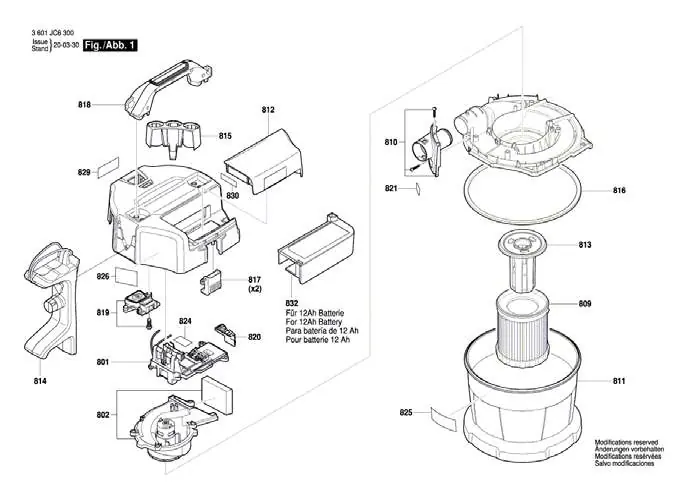

- Figure 1: Shows the main housing, motor assembly, filter system, and battery housing components.

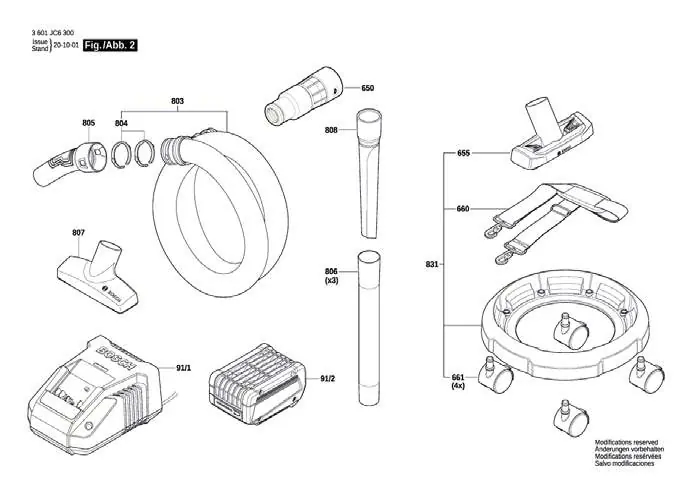

- Figure 2: Displays accessories, including the hose, nozzles, carrying strap, wheels, and battery/charger system.
Spare parts list
The following key components are listed for maintenance and replacement:
- Filter: Item 809 (Part number 1 600 A01 1RT)
- Hose: Item 803 (Part number 1 600 A01 1RL)
- Battery: Item 91/2 (Part number 2 607 337 069, 18V, 5.0 Ah)
- Charger: Item 91/1 (Part number 2 607 225 921, GAL 1880 CV)
- Nozzles: Various items (806, 807, 808, 655)
- Housing and structural parts: Includes battery housing, handle, and various seals/gaskets.
Maintenance and support
For technical support or to order spare parts, please visit the official Bosch service portal at https://www.boschtoolservice.com. Ensure you have the specific part number from the list when contacting service centers.
