Instruction Manual for BOSE S1 Pro+ Wireless Mic/Line Transmitter
Quick guide for the BOSE S1 Pro+ Wireless Mic/Line and Instrument Transmitters, covering setup, pairing, operation, and safety guidelines.
Table of contents
Quick guide from the manual
This document provides essential setup and operational instructions for the Bose Wireless Mic/Line Transmitter and Wireless Instrument Transmitter. The primary function of these devices is to provide wireless audio transmission for microphones or instruments when used with the Bose S1 Pro+ Wireless PA System.
Setup and Pairing
- Charging: Connect the transmitter to the charging port on the S1 Pro+ PA system using the provided cable.
- Docking: Insert the transmitter into the designated slot on the PA system.
- Pairing: Press and hold the power button on the transmitter for 5 seconds to initiate pairing with the receiver.
- Connection: Once paired, connect the transmitter to your microphone or instrument.
- Operation: Use the power button to turn the device on/off and the MUTE button to toggle audio output.
Safety and Maintenance
- Water: Do not use the apparatus near water.
- Cleaning: Clean only with a dry cloth.
- Heat: Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
- Battery: Do not attempt to remove the rechargeable lithium-ion battery. Contact a qualified professional for removal.
- Modifications: Do not make unauthorized alterations to the product.
Technical Specifications
- Frequency band of operation: 2402 to 2482 MHz.
- Maximum transmit power: Less than 10 dBm (10mW) EIRP.
- Charging Temperature Range: 32° F - 113° F (0° C - 45° C).
- Discharging Temperature Range: -4° F - 140° F (-20° C - 60° C).
- Battery Capacity: 530mAh.
- Input Rating: 3.5 - 6.45V, 300mA.
Support
For more information, accessories, or replacement parts, visit support.Bose.com/WirelessTransmitter or contact Bose customer service.
Official resources from the manual
Manufacturer information
Bose Corporation
Practical help
Common problems
Interference with radio or television reception
Reorient or relocate the receiving antenna, increase separation between equipment and receiver, or connect the equipment to a different circuit outlet.
Device not operating normally
Ensure the battery is charged and the device has not been exposed to moisture, dropped, or damaged.
Before use
- Ensure the transmitter is fully charged using the S1 Pro+ PA system.
- Verify the transmitter is paired with the receiver (hold power button for 5 seconds).
- Check that the device is not near water or heat sources.
- Confirm the transmitter is compatible with the Bose S1 Pro+ Wireless PA System.
Specs in practice
- Frequency band
- 2402 to 2482 MHz, the range used for wireless transmission.
- Charging Temperature
- The device must be charged between 0° C and 45° C.
- Discharging Temperature
- The device can operate (discharge) between -20° C and 60° C.

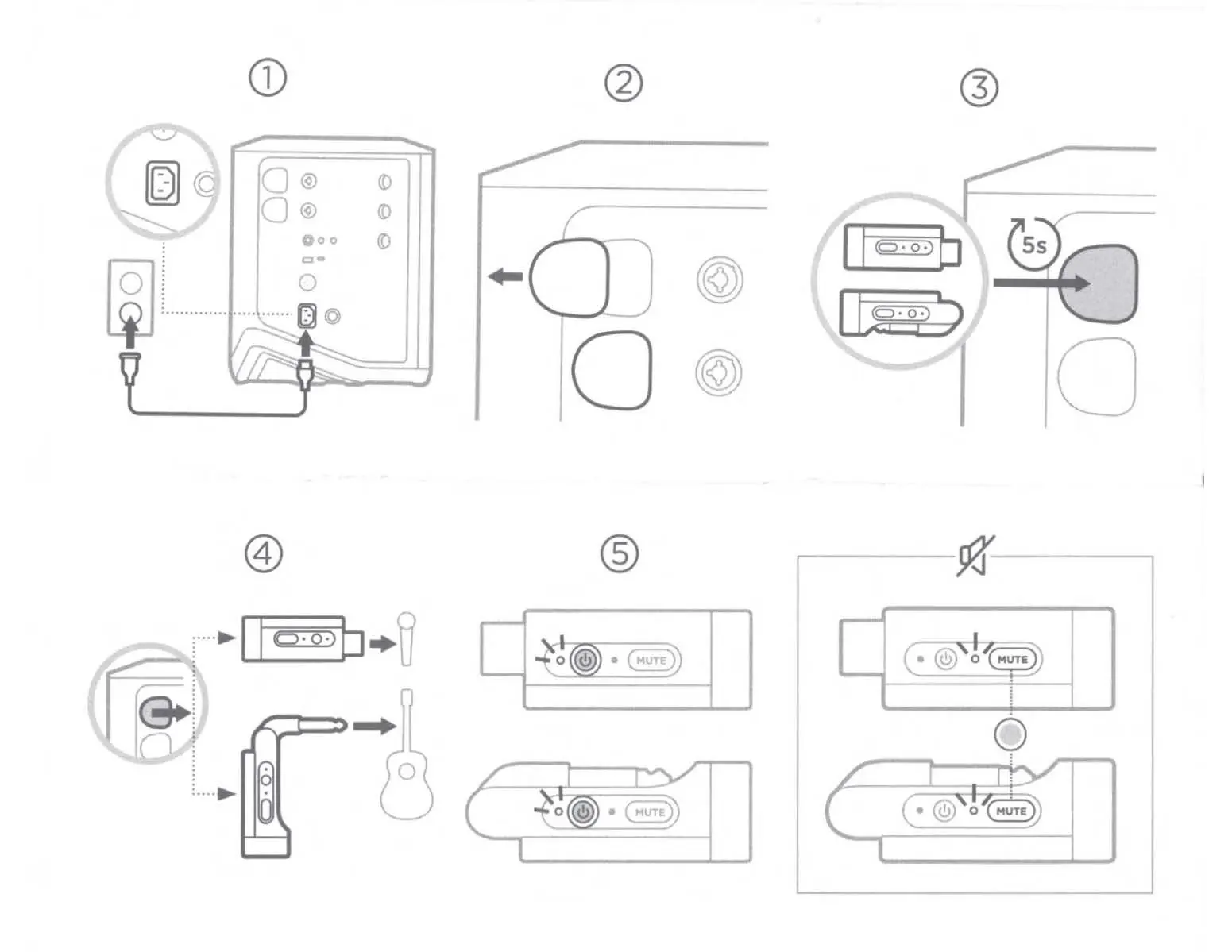

Images and diagrams
- Step 1: Charging the transmitter via the S1 Pro+ PA system.
- Step 2: Docking the transmitter.
- Step 3: Pairing process (5-second hold).
- Step 4: Connecting to microphone or instrument.
- Step 5: Power and Mute control operation.
Model compatibility
- Use only with the Bose S1 Pro+ Wireless PA System or an agency-approved LPS power supply meeting local regulatory requirements (e.g., UL, CSA, VDE, CCC).
