User Manual for Bright Starts 13069-MEES Playful Paradise Portable Swing

Important Safety Information

WARNING: Failure to follow these instructions can result in serious injury or death.

• Fall and Strangulation Hazard: Always use the restraint system and adjust it to fit snugly. Stop using the product when the infant attempts to climb out (approximately 9 months).
• Weight Limits: Do not use if the child weighs less than 3 kg (6 lbs) or more than 9 kg (20 lbs).
• Suffocation Hazard: Never use on soft surfaces like beds, sofas, or cushions. Always place the product on the floor.
• Sleep Safety: This product is not for sleep. If the baby falls asleep, move them to a firm, flat sleep surface like a crib or bassinet.
• Recline: Keep the seat fully reclined until the infant is at least 4 months old and can hold their head up without help.
• Supervision: Never leave the child unattended.

Assembly Instructions

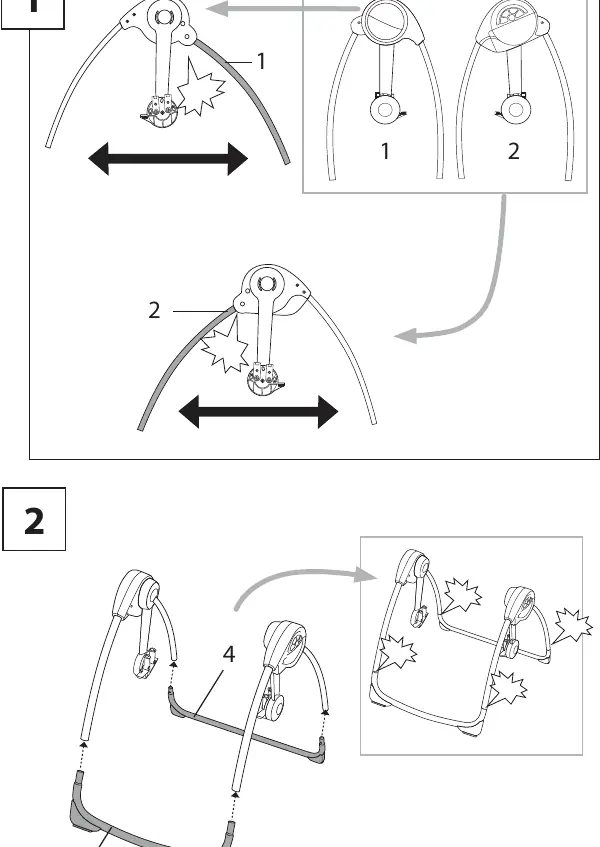

1. Frame Assembly: Unfold the left and right swing frame assemblies until they lock into position.
2. Foot Assembly: Attach the front and rear foot assemblies to the frame legs. Ensure all parts click securely into place.

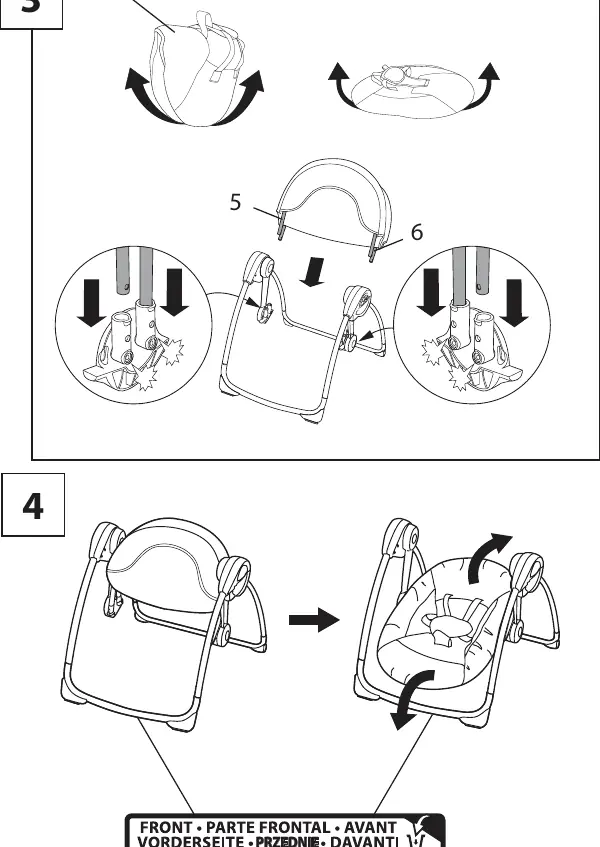

3. Seat Attachment: Attach the seat pad to the frame. Ensure the backrest tube and footrest tube are correctly inserted into the frame connectors.

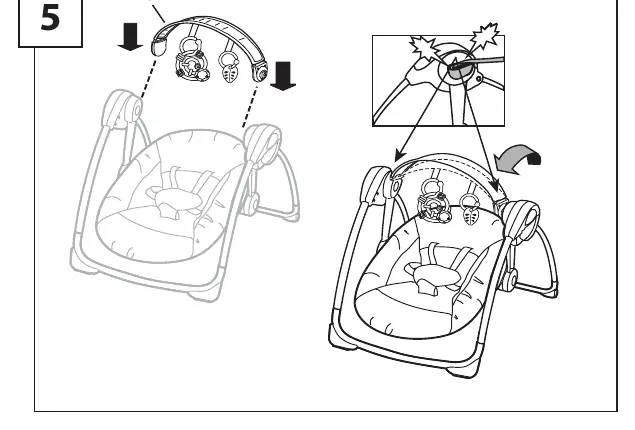

4. Toy Bar: Snap the toy bar with toys onto the frame.

Battery Installation

The swing control module requires (4) size C/LR14 (1.5V) alkaline batteries (not included).

• Use a screwdriver to open the battery compartment on the control module.
• Insert the batteries, ensuring the polarity matches the markings inside the compartment.
• Replace the cover and secure it with the screw.
• Replace all batteries at once; do not mix old and new, or different types of batteries.

Using the Swing Control Module

The control module allows you to adjust speed, timer, and volume.

• Power: Press the power switch to turn the swing on.
• Speed Control: Press the speed selector button to choose from 5 speed settings. The LED will flash to indicate the setting. Gently push the seat to start the motion.
• Timer: Press the timer button to select 30, 45, or 60 minutes. If no setting is chosen, the default is 90 minutes.
• Volume: Use the volume control switch to adjust or turn off music.

Using the Seat Restraint

Always secure the child using the restraint system.

• Place the child in the seat.
• Fasten the buckles on the seat restraint.
• Adjust the straps to ensure a snug fit around the child.

Using the Recline Function

The seat can be adjusted for comfort.

• Locate the recline adjustment mechanism on the side of the seat.
• Press the button to release the lock and adjust the seat to the desired angle.
• Ensure the seat is fully reclined for infants under 4 months old.

Care and Cleaning

• Seat Pad: Remove from the frame. Fasten all buckles and hook-and-loop patches. Machine wash with cold water on a gentle cycle. Do not bleach. Tumble dry on low heat.
• Toy Bar and Toys: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
• Frame: Wipe the metal frame with a soft, clean cloth and mild soap.

Storage and Travel

When storing the swing, remove the batteries to prevent leakage. Store in a dry location away from heat sources and direct sunlight.
