User Manual for Bright Starts Fancy Fantasy Vibrating Bouncer 12205-ES
Quick guide for the Bright Starts Fancy Fantasy Vibrating Bouncer (12205-ES). Includes assembly instructions, battery installation, safety warnings, and cleaning tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bright Starts Fancy Fantasy Vibrating Bouncer is designed to soothe infants. Important Safety Warnings: Never leave the child unattended. Use the bouncer only on the floor; never on elevated surfaces, beds, sofas, or soft surfaces. Stop using the bouncer when the baby starts trying to sit up or has reached 9 kg (20 lbs), whichever comes first. This product is not for sleep; if the baby falls asleep, move them to a crib or bassinet immediately.
Assembly Instructions
Adult assembly is required. Ensure all parts are present before beginning. The assembly involves connecting the base frame tubes, backrest tubes, and footrest wire, followed by attaching the seat pad and toy bar.
- Connect the base frame tubes and backrest tubes as shown in the assembly diagrams.
- Ensure all locking mechanisms are engaged.
- Attach the seat pad to the frame using the provided buckles and hook-and-loop patches.
- Insert the toy bar into the designated slots on the frame.

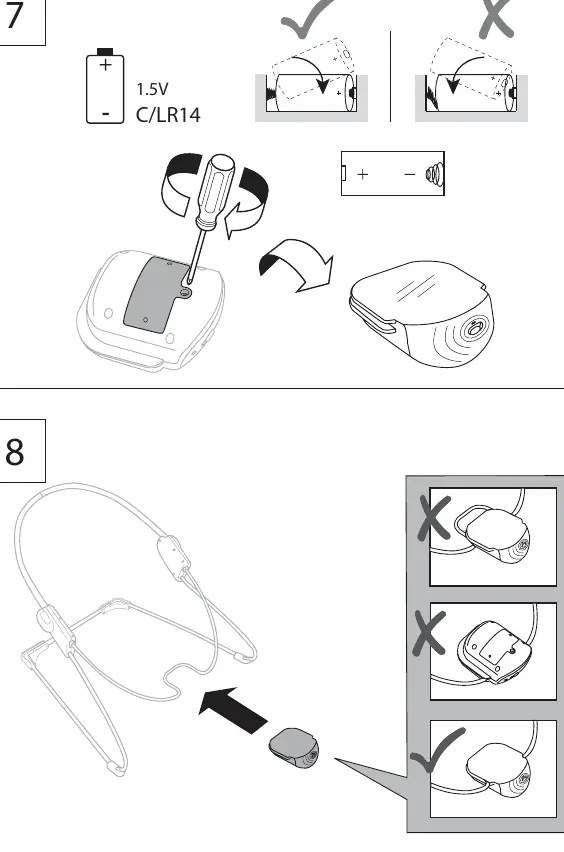

Battery Installation
The vibration unit requires 1 size C/LR14 (1.5V) alkaline battery (not included). Use a Phillips screwdriver to open the battery compartment. Ensure the polarity matches the markings inside the compartment. Replace the battery if the vibration function becomes weak or erratic.
Using the Bouncer

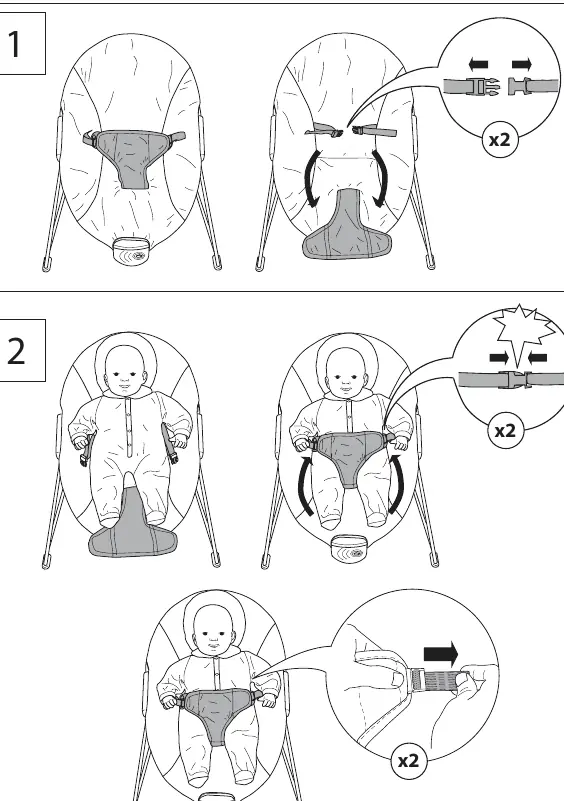

Always use the seat restraint system and adjust it to fit the baby snugly. To use the vibration function, slide the ON/OFF switch located on the vibration unit to the desired position.
Care and Cleaning
- Seat pad: Remove from the frame. Fasten all buckles and hook-and-loop patches. Machine wash with cold water on a gentle cycle. Do not bleach. Tumble dry on low heat.
- Toy bar and toys: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
- Frame: Wipe the metal frame with a soft, clean cloth and mild soap.
Storage and Disassembly
To disassemble for storage, use a small Phillips screwdriver to depress the release buttons on the inside of each connecting hub. Remove the footrest tube and base frame tubes from the hubs. Remove batteries before storing the product for a prolonged period.
Manufacturer information
Bright Starts
Practical help
Common problems
Vibration unit not working or sound is distorted
Replace the battery. Weak batteries cause erratic operation, including distorted sound and slow or non-working motorized parts.
Bouncer feels unstable
Verify that all frame tubes are fully inserted and locked into the connecting hubs. Check for any missing or damaged parts.
Before use
- Check for damaged, missing, or loose parts.
- Ensure the child is not trying to sit up (max weight 9kg/20lb).
- Verify battery is installed with correct polarity.
- Ensure seat restraint is adjusted snugly.
- Place only on the floor, never on elevated surfaces.
Specs in practice
- Weight Limit
- Stop using when baby tries to sit up or reaches 9 kg (20 lbs).
Images and diagrams

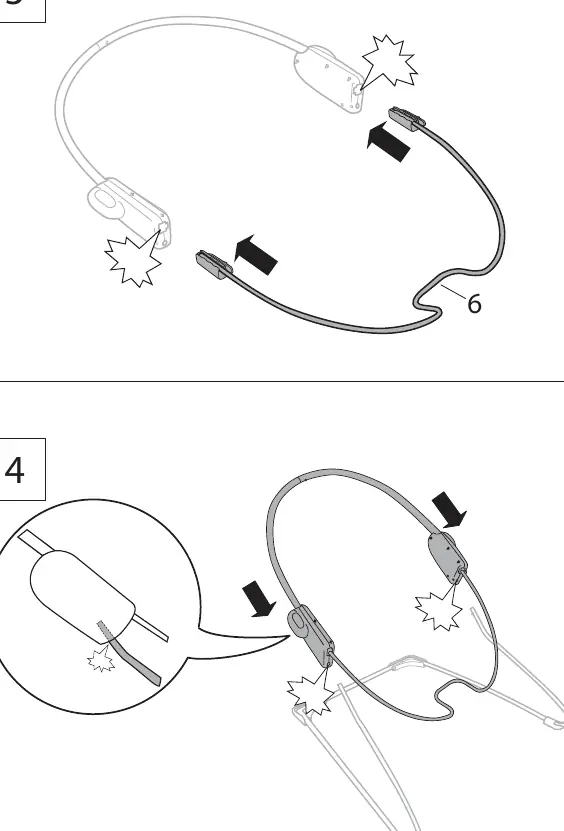

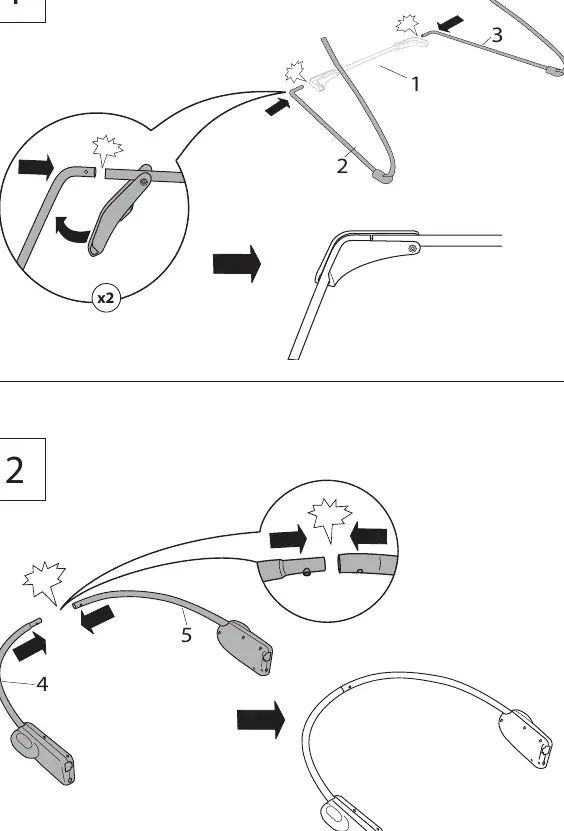

- Assembly steps 1-14 show the connection of the frame tubes and seat pad.
- Battery installation requires a Phillips screwdriver to open the compartment.
Model compatibility
- Not for sleep; if baby falls asleep, move to a crib.
- Do not use as an infant carrier for travel.
