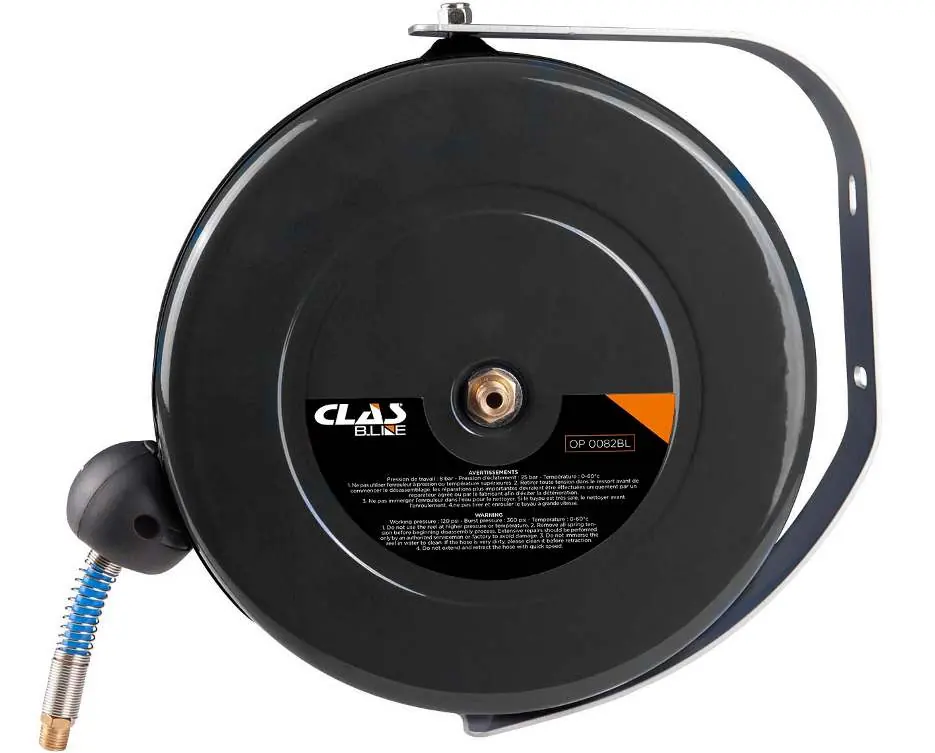

User Manual for CLAS OP 0082BL Metal Case Air Reel

Quick guide from the manual

The CLAS OP 0082BL is a metal case air reel designed for automatic hose retraction. Key operational requirements include mounting the unit in a sheltered area to prevent rust and polypropylene degradation, and ensuring the air supply is turned off before retracting the hose to prevent damage. The reel features a ratchet mechanism for locking the hose at desired lengths.

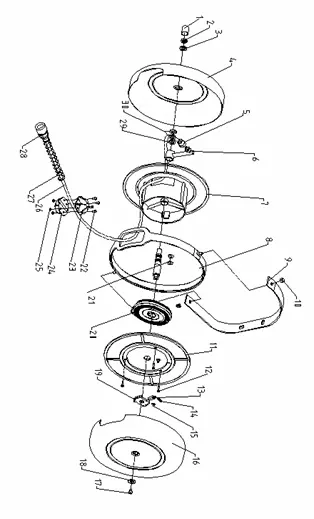

Product description

This air reel is constructed with high-quality materials and features a swirled spring for automatic retraction. It is capable of 180-degree rotation, allowing for a wide range of motion. The hose is kink-resistant and suitable for various workshop or industrial environments.

Installation

The reel should be installed near an air source. For optimal coverage in large areas, place it in the center of the workspace.

• Mounting: The bracket can be installed on a brick wall or a horizontal beam/post. The most appropriate position is approximately 1 meter above the ground.
• Vertical Mounting: The reel can be used vertically if hung from an overhead beam or rafter.
• Hardware: The wall mounting bracket consists of three parts: two fasteners and the bracket. Use M8 screws with spring washers or padding to ensure all parts are securely locked in position.
• Connection: Screw the coupler (3) onto the inlet connector, then insert the air source socket (4) into the coupler.

Operation

The reel is equipped with a ratchet wheel and detent design.

• Extending: Pull the hose out to the desired length. You will hear a "KADA" sound. When you stop pulling, the ratchet will lock the hose in place.
• Retracting: To retract, pull the hose slightly until the ratchet releases (no "KADA" sound). It is recommended to have at least 25% of the hose extended before retracting. Always hold the hose and guide it back to ensure even retraction and prevent injury or damage.

Maintenance and safety

• Cleaning: Do not immerse the reel in water. If the hose is dirty, clean it manually before retracting.
• Storage: When not in use, it is advisable to store the reel. Avoid leaving it outdoors in low temperatures, as the hose may become stiff.
• Chemicals: Keep the hose away from chemicals such as acetone, white spirits, and lactic acid.
• Safety: Do not exceed the specified working pressure or temperature. Remove all spring tension before attempting any disassembly. Repairs should be performed by an authorized technician.

Technical specifications

• Hose Length: 10m (33 feet)
• Hose I.D.: 8x12mm
• Air Inlet/Outlet: 1/4 inch
• Working Pressure: 120 PSI
• Burst Pressure: 360 PSI
• Temperature Range: 0°C - 60°C
• Weight (N.W./G.W.): 3.5kg / 4.0kg

Contact information

For components, parts, or technical issues, contact your reseller or authorized technician. CLAS Equipements, ZA de la CROUZA, 73800 CHIGNIN, FRANCE. Phone: +33 (0)4 79 72 62 22. Fax: +33 (0)4 79 72 52 86. Website: clas.com
