Assembly Instructions for Coaster 107202WAL Side Chair
Quick assembly guide for the Coaster 107202WAL Side Chair. Includes parts list, hardware identification, step-by-step assembly instructions, and product dimensions.
Table of contents
Manual images
Click an image to enlargeImportant Assembly Information
The assembly of the Coaster 107202WAL Side Chair takes approximately 15 minutes. Please ensure you have a Phillips head screwdriver available, as it is required but not provided. This product is intended for home use only and should not be used in commercial establishments. Before starting, remove all hardware from the box and sort by size to ensure all parts are present.
Parts Identification
- A: Seat and Back (1PC)
- B: Left Leg Frame (1PC)
- C: Right Leg Frame (1PC)
- D: Stretcher (1PC)
Hardware Identification
- 1: Bolt (5/16" x 35mm - BLK) - 4PCS
- 2: Lock Washer (5/16" x 14mm - BLK) - 4PCS
- 3: Flat Washer (5/16" x 19mm - BLK) - 4PCS
- 4: Allen Wrench (4mm x 64mm - BLK) - 1PC
- 5: Pan Head Screw (Ø4 x 30mm - BLK) - 2PCS
- 6: Wooden Lock (Ø10 x 25mm - WOOD) - 2PCS
Assembly Steps

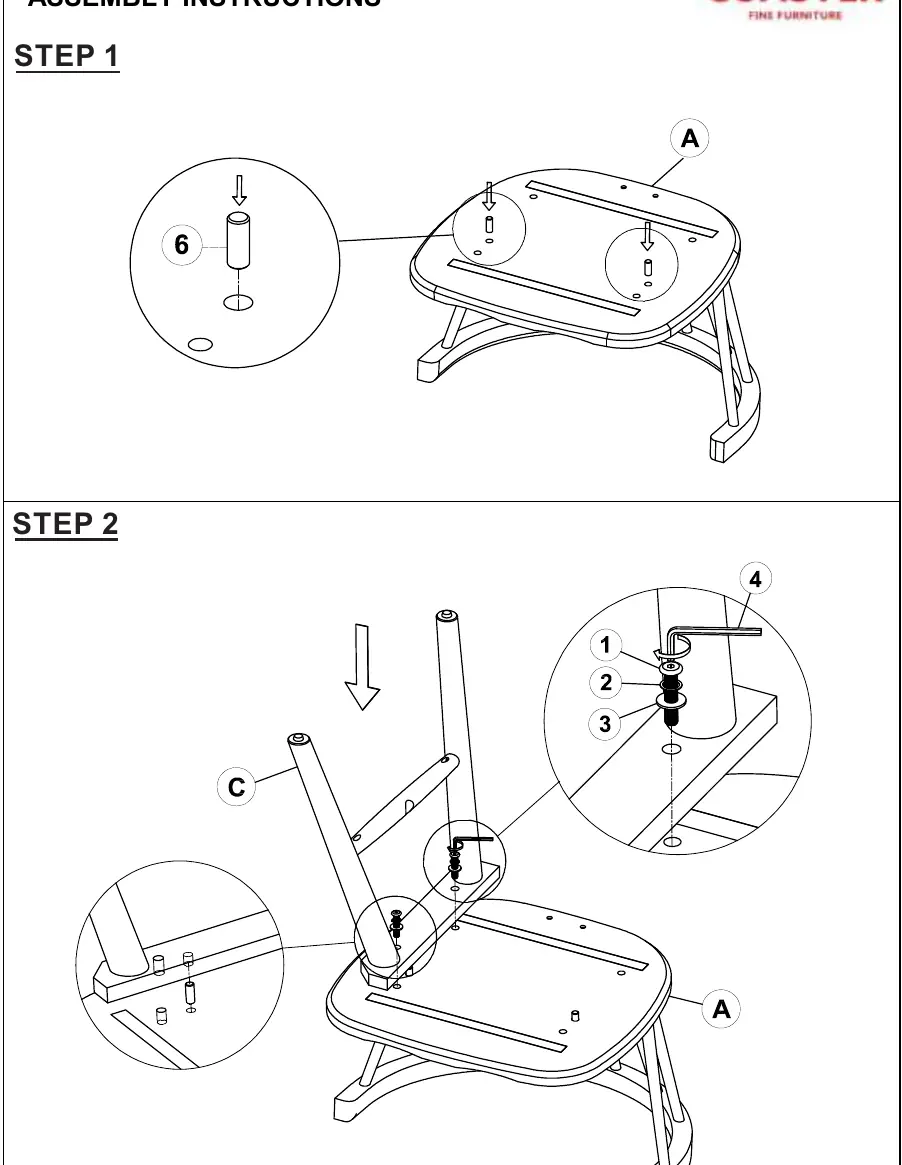

Step 1
Insert the wooden locks (6) into the designated holes on the seat (A).
Step 2
Attach the leg frames (C) to the seat (A). Secure them using bolts (1), lock washers (2), and flat washers (3). Tighten using the provided Allen wrench (4).

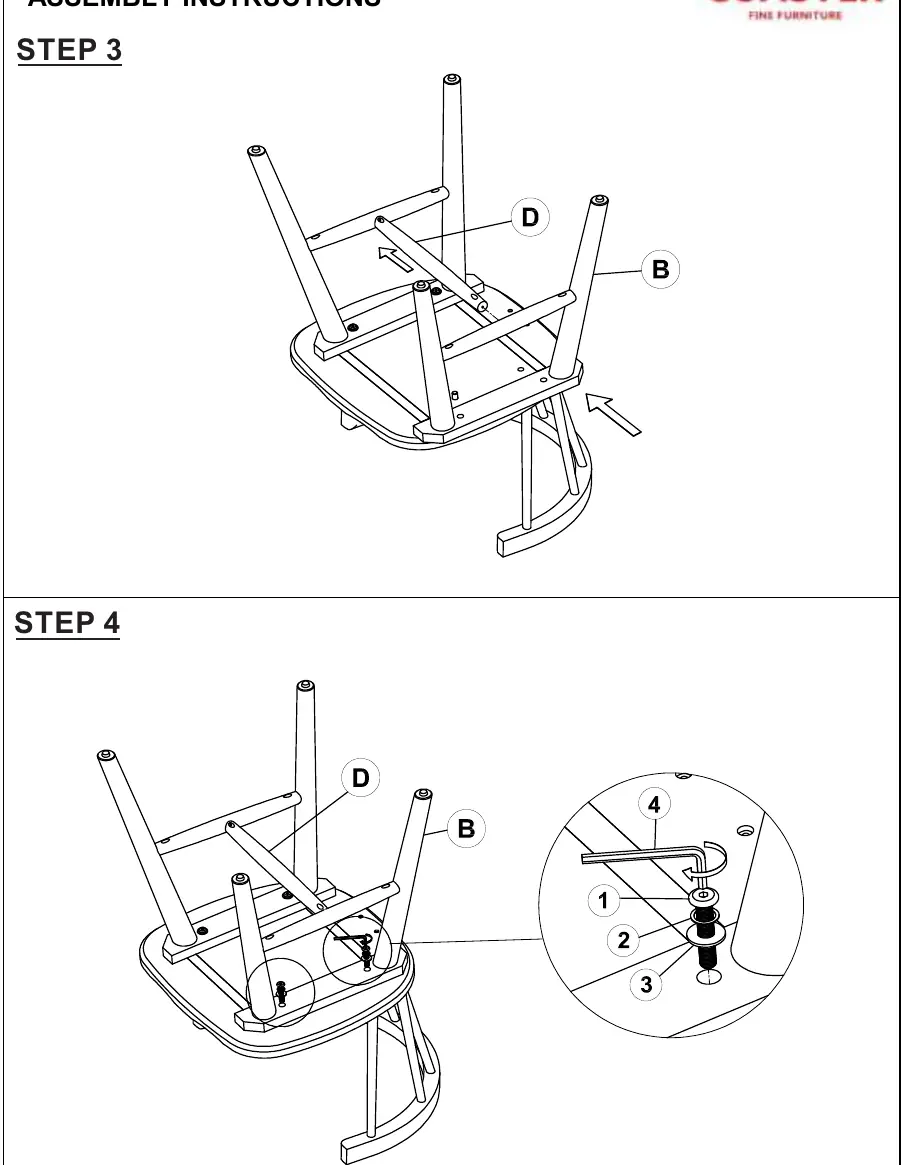

Step 3
Position the stretcher (D) between the leg frames (B and C).
Step 4
Secure the stretcher (D) to the leg frames using bolts (1), lock washers (2), and flat washers (3). Tighten with the Allen wrench (4).

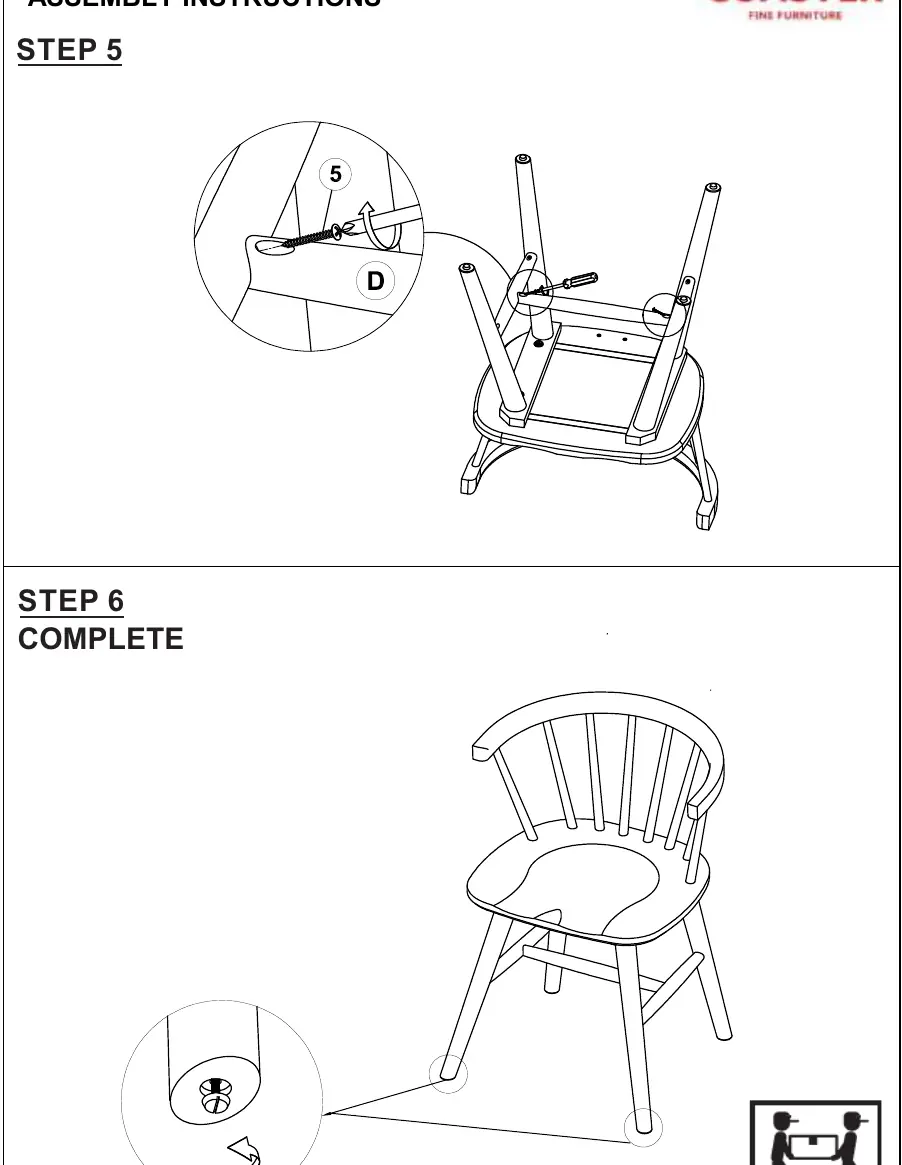

Step 5
Secure the stretcher (D) using the pan head screws (5) with a Phillips head screwdriver.
Step 6
Ensure all connections are tight and the chair is stable. The assembly is now complete.

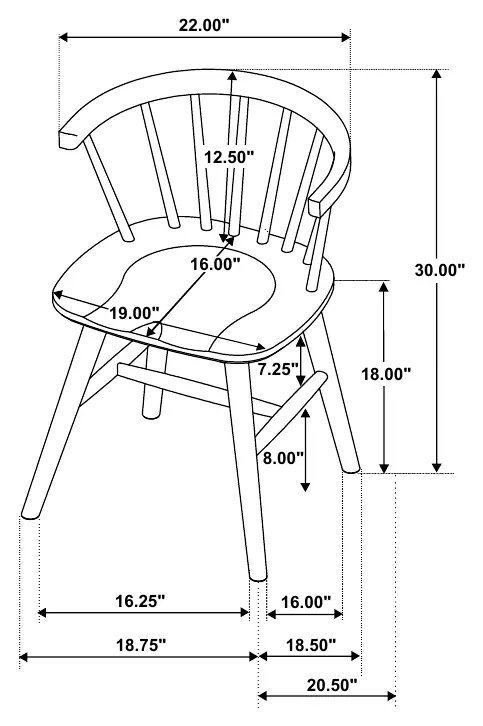

Product Dimensions
The chair measures 30.00 inches in total height, with a seat width of 19.00 inches and depth of 16.00 inches. Please note a dimension tolerance of ± 5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing parts or hardware
Check all packaging carefully. If parts are missing or defective, do not attempt to repair; contact the store immediately.
Wobbly chair
Ensure all bolts are tightened evenly. Check that the stretcher is properly aligned and secured.
Before use
- Sort all hardware by size before starting.
- Verify all parts listed in the manual are present.
- Ensure you have a Phillips head screwdriver (not included).
- Clear a clean, flat area for assembly.
Specs in practice
- Assembly Time
- Approximately 15 minutes for one person.
Images and diagrams
- The manual uses exploded views to show the connection points for bolts and wooden locks.
- Step-by-step diagrams indicate the specific hardware required for each connection.
Model compatibility
- Quantities shown are for one chair.
