Assembly Instructions for Coaster Fine Furniture 193962NAT Side Chair
Quick assembly guide for the Coaster Fine Furniture 193962NAT Side Chair. Includes parts list, hardware identification, step-by-step assembly instructions, and product dimensions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The estimated assembly time for this chair is 20 minutes. Before beginning, ensure all parts and hardware are present and sorted by size. A Phillips head screwdriver is required for assembly but is not included in the package. This product is intended for home use only and is not suitable for commercial establishments.
Parts Identification
Ensure you have the following parts before starting:
- A: Right Leg Frame (1PC)
- B: Left Leg Frame (1PC)
- C: Front Rail (Long) (1PC)
- D: Back Rail (Short) (1PC)
- E: Front Lower Rail (Long) (1PC)
- F: Backrest (1PC)
- G: Back Cushion (Small) (1PC)
- H: Seat Cushion (Big) (1PC)
Hardware Identification
The following hardware is included:
- 1: Allen Wrench (M4 x 100mm) (1PC)
- 2: Bolt (M6 x 40mm) (4PCS)
- 3: Lock Washer (1/4") (4PCS)
- 4: Long Pan Head Screw (#8 x 1 1/2") (2PCS)
- 5: Medium Pan Head Screw (#8 x 1 1/4") (4PCS)
- 6: Short Pan Head Screw (#8 x 1") (4PCS)
- 7: Cam Bolt (263.20.847) (2PCS)
- 8: Wood Dowel (M8 x 30mm) (1PC)
Assembly Instructions
Follow these steps in sequence to assemble the chair:

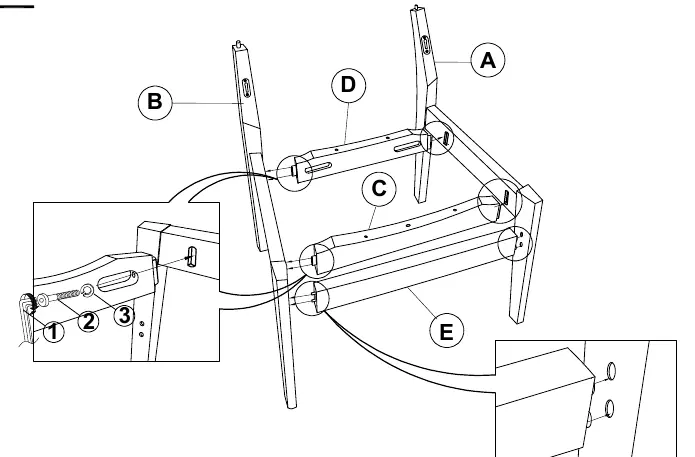

- Step 1: Connect the Right Leg Frame (A) and Left Leg Frame (B) using the Front Rail (C), Back Rail (D), and Front Lower Rail (E). Secure with provided hardware.
- Step 2: Further secure the rails to the leg frames using the Long Pan Head Screws (4).

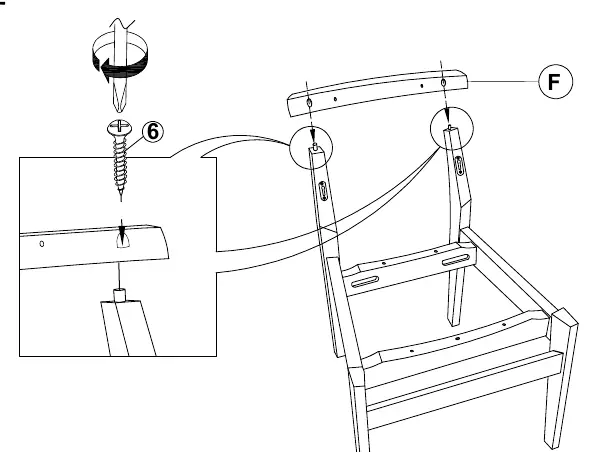

- Step 3: Attach the Backrest (F) to the leg frames using the Short Pan Head Screws (6).
- Step 4: Insert the Wood Dowel (8) into the designated hole on the frame.

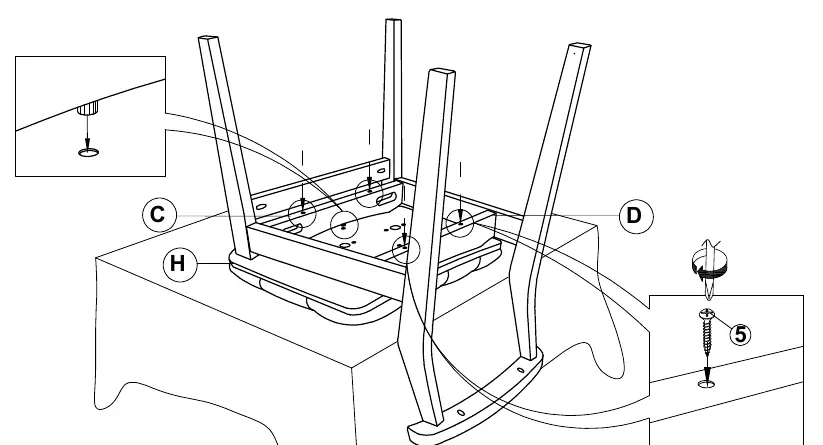

- Step 5: Place the Seat Cushion (H) onto the frame and secure it using the Medium Pan Head Screws (5).
- Step 6: Prepare the Back Cushion (G) by inserting the Cam Bolts (7).

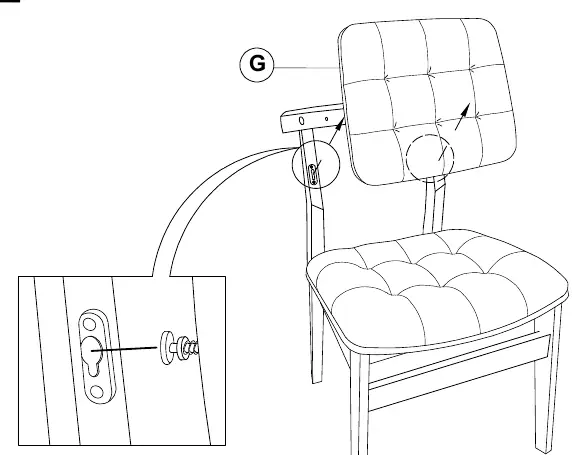

- Step 7: Attach the Back Cushion (G) to the chair frame, inserting the screws and pushing down to lock.
- Step 8: Secure the back cushion from the bottom using the Short Pan Head Screws (6).
- Step 9: Assembly is complete.
Dimensions
The chair has specific dimensions provided on page 9 of the manual, including a total height of 31.75 inches and various seat and frame measurements. Note that there is a dimension tolerance of ±5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Parts missing or damaged
Do not attempt to repair or modify the parts. Contact the store immediately.
Assembly takes too long
Estimated assembly time is 20 minutes. Ensure all hardware is sorted by size before starting to speed up the process.
Before use
- Sort all hardware by size
- Verify all parts (A-H) and hardware (1-8) are present
- Have a Phillips head screwdriver ready (not provided)
- Clear a space for assembly
Specs in practice
- Assembly Time
- Approximately 20 minutes
Images and diagrams
- Steps 1-9 provide visual guidance for connecting the leg frames, rails, backrest, and cushions.
- Page 9 provides detailed dimensions for the chair.
