Assembly Instructions for Coaster 105072 Side Chair and 115081 Dining Table
Quick assembly guide for the Coaster 105072 Side Chair and 115081 Dining Table. Includes parts lists, hardware identification, and step-by-step assembly instructions for both items.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides assembly instructions for the Coaster 105072 Side Chair and the 115081 Dining Table. Please ensure you have all parts and hardware before beginning assembly. The hardware packs are located in box 105072B2 for the chair and 115081B3 for the table.

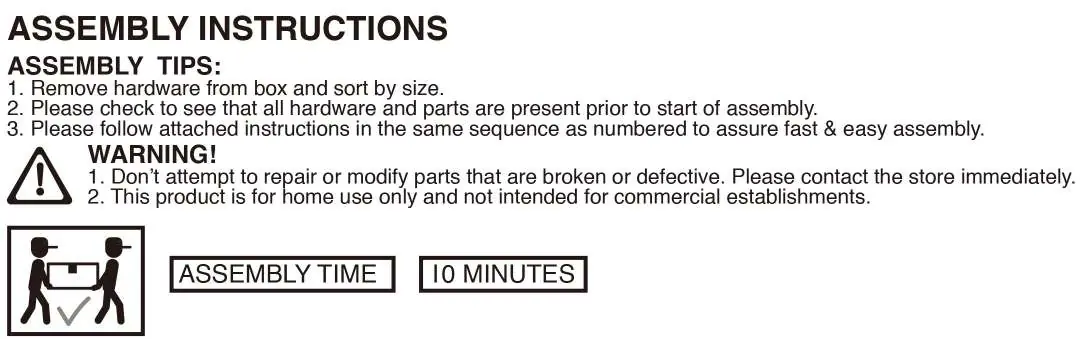

Safety and Assembly Tips
- Remove hardware from the box and sort by size before starting.
- Check that all hardware and parts are present prior to assembly.
- Follow the instructions in the numbered sequence to ensure fast and easy assembly.
- Do not attempt to repair or modify parts that are broken or defective; contact the store immediately.
- This product is for home use only and not intended for commercial establishments.
- Note: Dimension tolerance is ±5%.
Assembly Instructions for 105072 Side Chair
Estimated Assembly Time: 5 Minutes

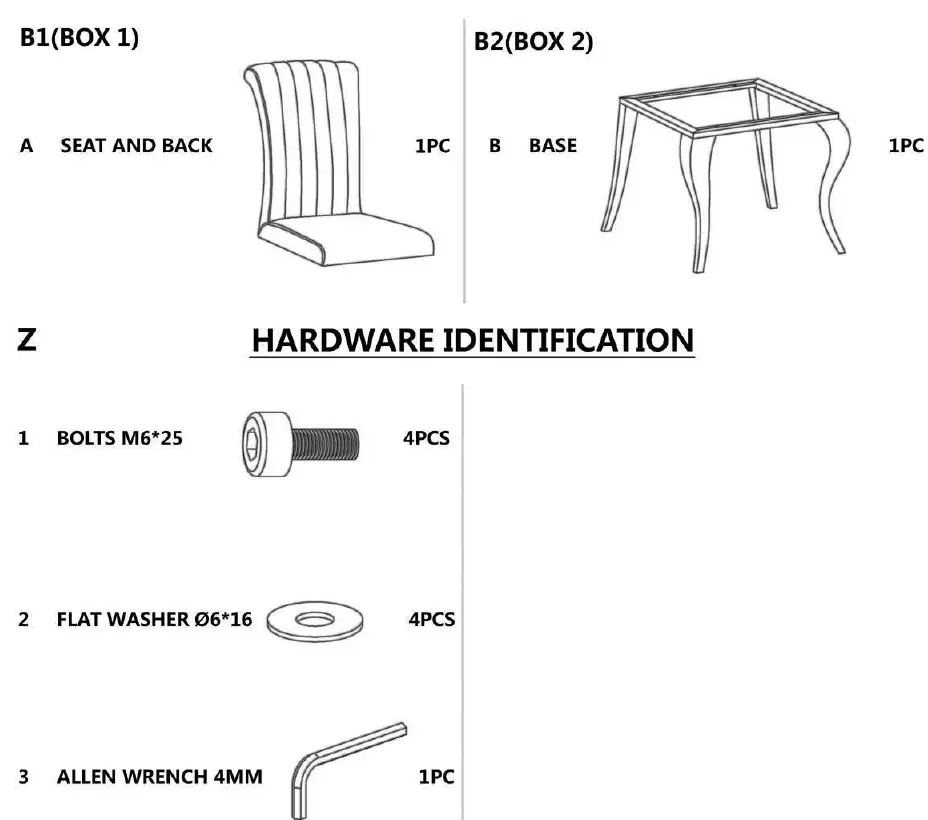

Parts:
- A: Seat and Back (1PC)
- B: Base (1PC)
Hardware:
- 1: Bolts M6*25 (4PCS)
- 2: Flat Washer Ø6*16 (4PCS)
- 3: Allen Wrench 4mm (1PC)

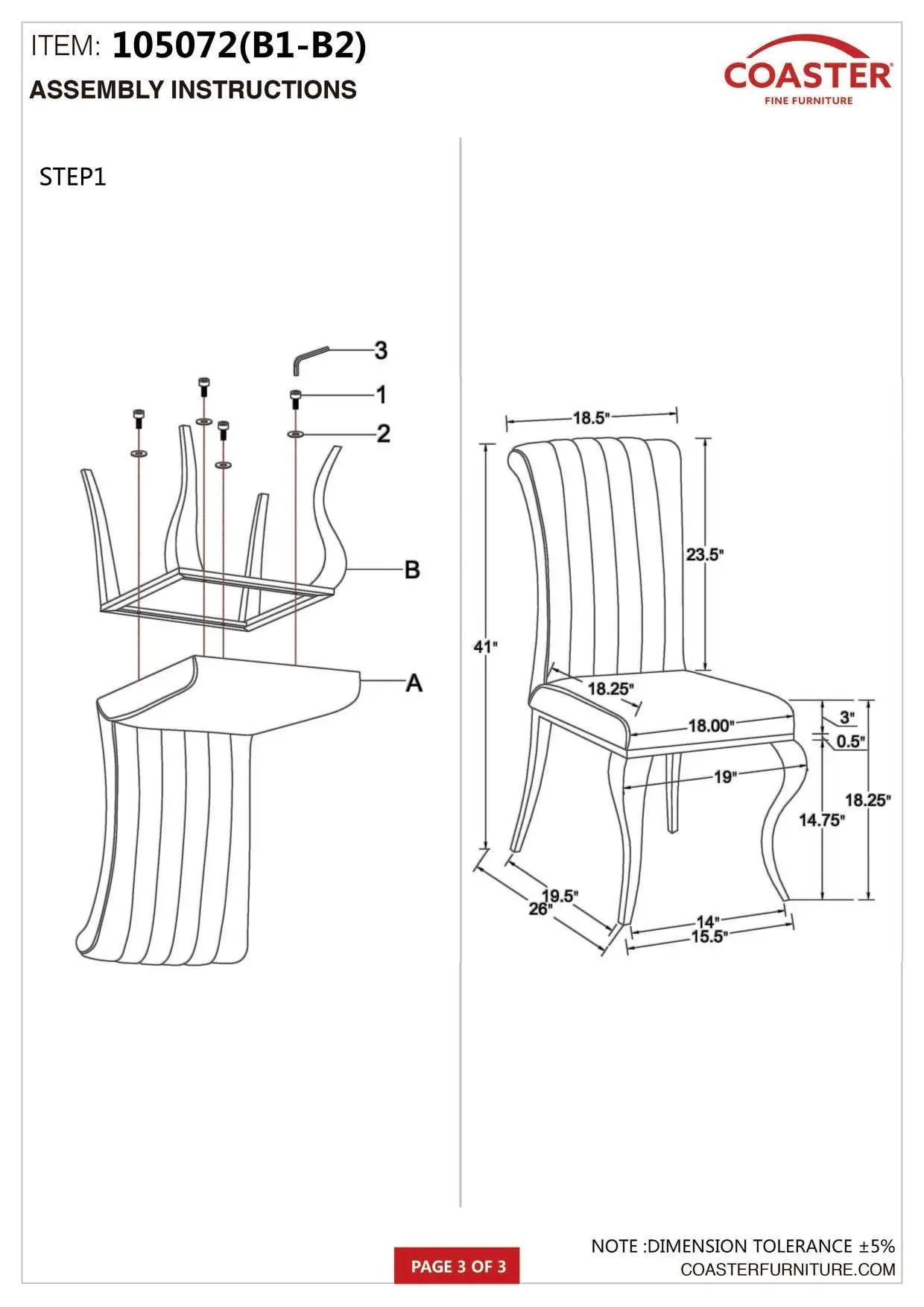

Steps:
- Place the Seat and Back (A) upside down on a clean surface.
- Align the Base (B) with the holes on the Seat and Back.
- Secure the base using the 4 Bolts (1) and 4 Flat Washers (2) with the provided Allen Wrench (3).
Assembly Instructions for 115081 Dining Table
Estimated Assembly Time: 10 Minutes
Parts:
- A: Glass (1PC)
- B: Top Frame (1PC)
- C: Leg and Hardware (4PCS)
Hardware:
- 1: Bolts M10*12 (12PCS)
- 2: Flat Washer Ø10*20 (12PCS)
- 3: Allen Wrench 8mm (1PC)
- 4: Glass Rest (8PCS)
Steps:
- Place the Top Frame (B) upside down on a clean surface.
- Attach the 4 Legs (C) to the Top Frame using the 12 Bolts (1) and 12 Flat Washers (2) with the provided Allen Wrench (3).
- Once the frame is assembled, turn it upright.
- Place the Glass Rests (4) onto the frame.
- Carefully place the Glass (A) onto the glass rests.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Wobbly chair or table
Ensure all bolts are tightened evenly. Check that the floor is level.
Missing hardware
Check all boxes (B1, B2, B3) thoroughly. Hardware packs are located in 105072B2 for the chair and 115081B3 for the table.
Before use
- Unpack all items and sort hardware by size.
- Verify all parts are present against the parts identification list.
- Ensure you have the correct Allen wrench (4mm for chair, 8mm for table).
- Clear a large, clean area for assembly.
Specs in practice
- M10*12 Bolts
- Bolts used for the table assembly.
- Dimension Tolerance ±5%
- Measurements may vary slightly due to manufacturing tolerances.
Images and diagrams
- The chair assembly involves attaching the base to the seat/back using 4 bolts.
- The table assembly involves attaching 4 legs to the top frame using 12 bolts, then placing the glass on the glass rests.
Model compatibility
- Hardware packs are specific to each item; do not mix them.
- Quantities shown in the manual are for one chair.
