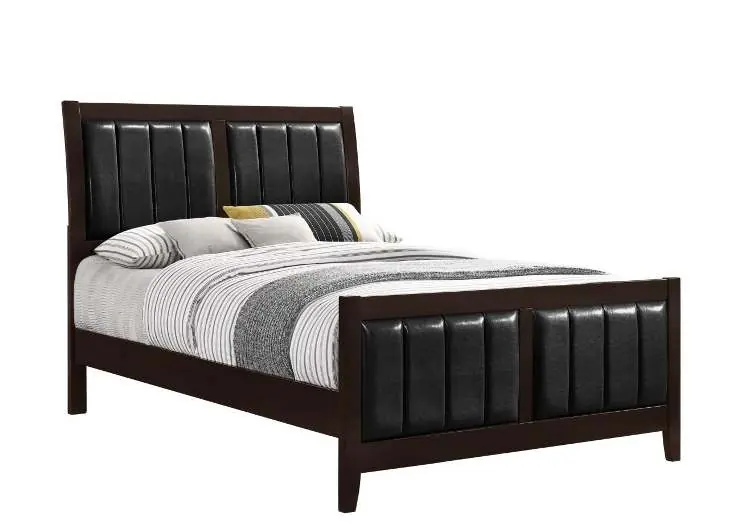

Assembly Instructions for Coaster 202091F Full Bed
Complete assembly guide for the Coaster 202091F Full Bed. Includes parts identification, hardware list, step-by-step assembly instructions, and product dimensions.
Quick answers from the manual
Quick answer
- The Coaster 202091F Full Bed requires approximately 20 minutes to assemble. You will need a Phillips head screwdriver (not included) and the provided Allen wrench. p. 2
Key actions
- Sort all hardware and parts by size before beginning assembly. p. 2
- Attach headboard legs (B & C) to the headboard panel (A) using bolts, lock washers, and flat washers. p. 3
Problems and fixes
Broken or defective parts
Do not attempt to repair or modify; contact the store immediately.
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Inner Size | 54.50"W x 76.00"D | Mattress area dimensions | p. 5 |
Where to find it in the PDF
- Assembly Instructions p. 2, 3, 4
- Dimensions p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for the Coaster 202091F Full Bed. The estimated assembly time is 20 minutes. Please ensure all parts and hardware are present before beginning. A Phillips head screwdriver is required but not included.
Parts Identification
The bed consists of the following components:
- Headboard Panel (A)
- Right Headboard Leg (B)
- Left Headboard Leg (C)
- Footboard (D)
- Bed Slat (E)
- Bed Slat Support with Leveler (F)
- Bed Rail (G)
Hardware Identification
The hardware pack (Z-B1) includes:
- Bolt (M6 x 35mm) - 6 pcs
- Lock Washer (1/4") - 6 pcs
- Flat Washer (1/4"ID x 13mm) - 6 pcs
- Allen Wrench (M4 x 60mm) - 1 pc
- Flat Head Screw (M4 x 32mm) - 8 pcs
Assembly Steps

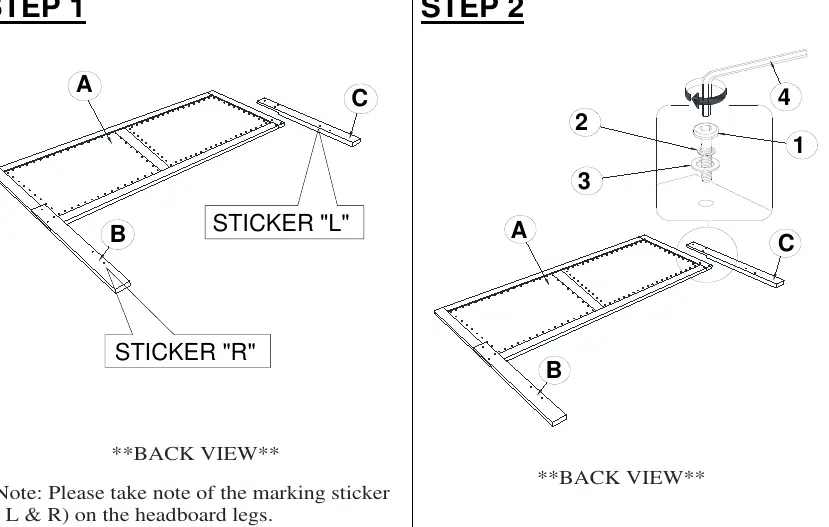

Step 1 & 2: Headboard Assembly
Attach the Right (B) and Left (C) Headboard Legs to the Headboard Panel (A). Note the "L" and "R" stickers on the legs. Secure using the provided bolts, lock washers, and flat washers with the Allen wrench.

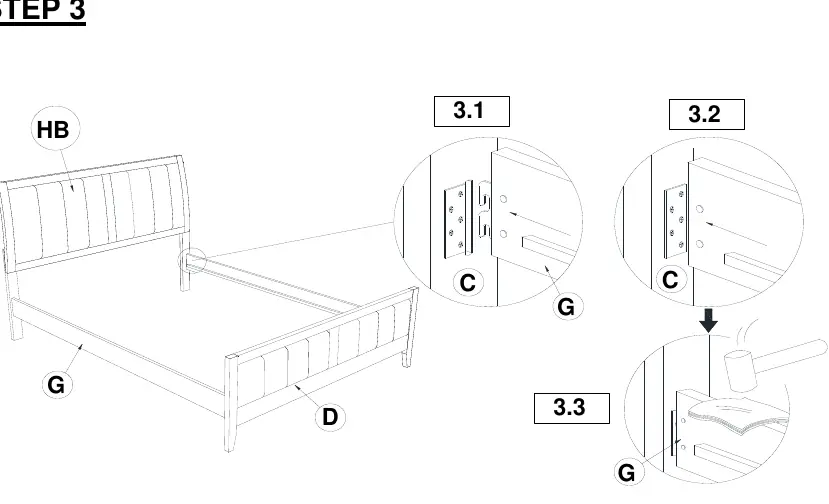

Step 3: Frame Assembly
Attach the Bed Rails (G) to the Headboard (HB) and Footboard (D). Ensure the arrow marks are aligned.
Step 4 & 5: Slat Installation
Attach the Bed Slat Supports (F) to the Bed Slats (E). Place the slats across the bed frame and secure them using the Flat Head Screws (5).
Dimensions
The inner size of the bed is 54.50"W x 76.00"D. Please note a dimension tolerance of ±5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Parts are broken or defective
Do not attempt to repair or modify. Contact the store immediately.
Difficulty aligning headboard legs
Check the marking stickers (L & R) on the headboard legs to ensure correct placement.
Before use
- Remove hardware from box and sort by size.
- Verify all hardware and parts are present before starting assembly.
- Ensure you have a Phillips head screwdriver (not provided).
- Follow the numbered sequence of instructions.
Specs in practice
- Dimension tolerance
- ±5% (Allowable variance in product dimensions).
Images and diagrams
- Step 1 & 2: Shows the attachment of legs to the headboard panel using bolts and washers.
- Step 3: Illustrates connecting the bed rails to the headboard and footboard.
- Step 4: Details the assembly of the bed slat supports.
- Step 5: Shows the final installation of slats onto the bed frame.
Model compatibility
- Product is for home use only.
- Not intended for commercial establishments.
