Assembly Instructions for Coaster 703500 2-Piece Coffee Table Set
Quick assembly guide for the Coaster 703500 2-Piece Coffee Table Set. Includes parts list, hardware identification, step-by-step assembly instructions, and product dimensions.
Quick answers from the manual
Quick answer
- The Coaster 703500 is a 2-piece coffee table set. Assembly involves attaching the bases to the tops using the provided bolts, washers, and Allen key. p. 1, 2, 3
Key actions
- Sort hardware by size p. 2
- Assemble in numbered sequence p. 2
First start
- Assemble the big table first, then the small table. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimensions | Various | See page 4 for detailed measurements | p. 4 |
Where to find it in the PDF
- Title Page p. 1
- Parts and Hardware p. 2
- Assembly Steps p. 3
- Dimensions p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for the Coaster 703500 2-Piece Coffee Table Set. The estimated assembly time is 20 minutes. Please ensure you have all parts and hardware before beginning. Follow the numbered sequence provided in the instructions to ensure a fast and easy assembly process.
Parts and Hardware Identification
Before starting, verify that all components are present:
- Big Table Top (A) - 1 piece
- Big Table Base (B) - 1 piece
- Small Table Top (C) - 1 piece
- Small Table Base (D) - 1 piece
- Bolt (1/4"x1") - 10 pieces
- Spring Washer (1/4") - 10 pieces
- Washer (1/4") - 10 pieces
- Allen Key (1/4") - 1 piece
Note: The hardware pack is located in box 703500B2.
Assembly Instructions
Follow these steps to assemble your coffee table set:

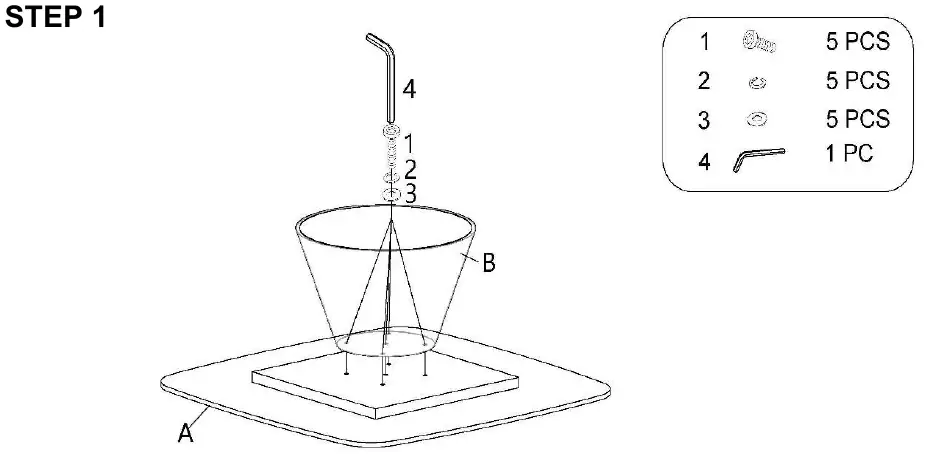

Step 1: Big Table Assembly
- Place the Big Table Top (A) on a flat surface.
- Align the Big Table Base (B) with the mounting holes on the underside of the top.
- Secure the base using the provided bolts, spring washers, and washers. Tighten using the Allen Key.

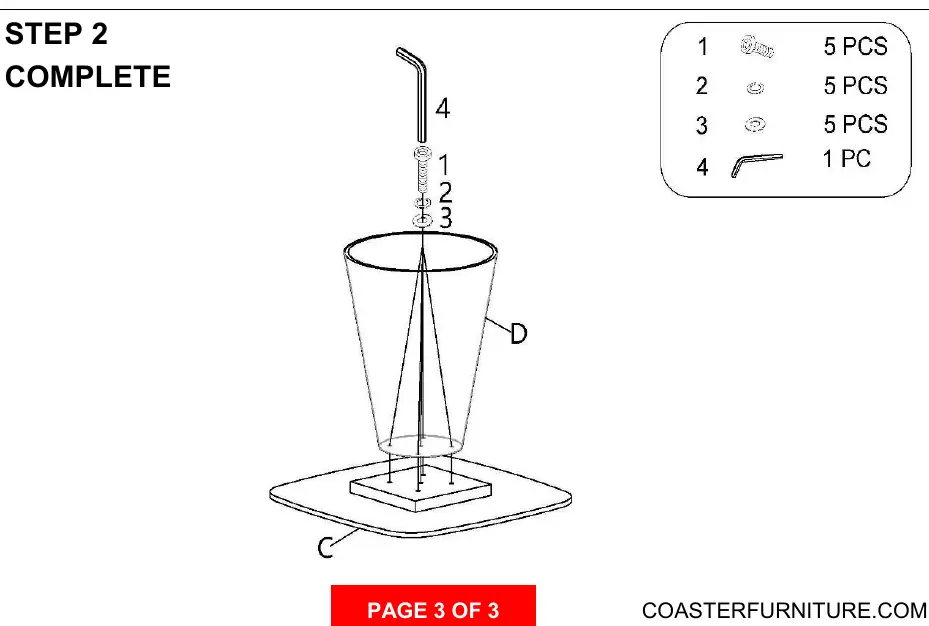

Step 2: Small Table Assembly
- Place the Small Table Top (C) on a flat surface.
- Align the Small Table Base (D) with the mounting holes on the underside of the top.
- Secure the base using the provided bolts, spring washers, and washers. Tighten using the Allen Key.
Safety Warnings
- Do not attempt to repair or modify parts that are broken or defective. Contact the store immediately if parts are damaged.
- This product is intended for home use only and is not suitable for commercial establishments.

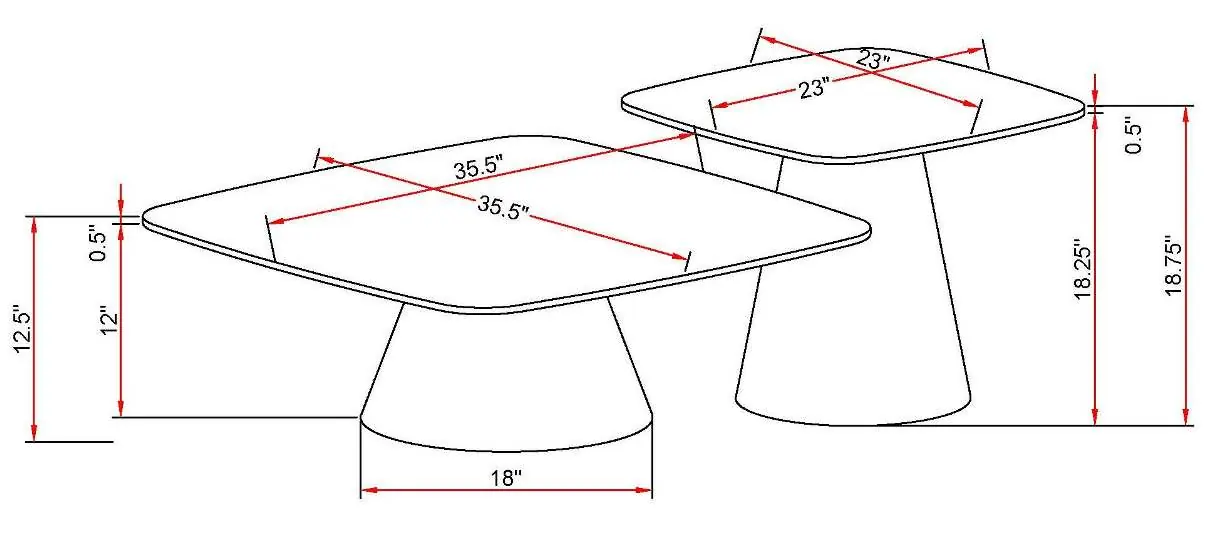

Dimensions
The product dimensions are provided on page 4 of the manual. Please note that there is a dimension tolerance of ±5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Hardware missing
Check all packaging carefully; the hardware pack is located inside box 703500B2.
Difficulty assembling
Ensure you follow the numbered sequence exactly as shown in the instructions to avoid misalignment.
Before use
- Sort hardware by size before starting
- Verify all parts (A, B, C, D) are present
- Clear a sufficient space for assembly
- Use the provided Allen key for all bolt tightening
Specs in practice
- Dimension tolerance ±5%
- Allows for minor variations in the manufactured size of the tables.
Images and diagrams
- Step 1: Shows the assembly of the larger table using the bolt, spring washer, and washer stack.
- Step 2: Shows the assembly of the smaller table using the same hardware configuration.
Model compatibility
- For home use only
- Not intended for commercial establishments
