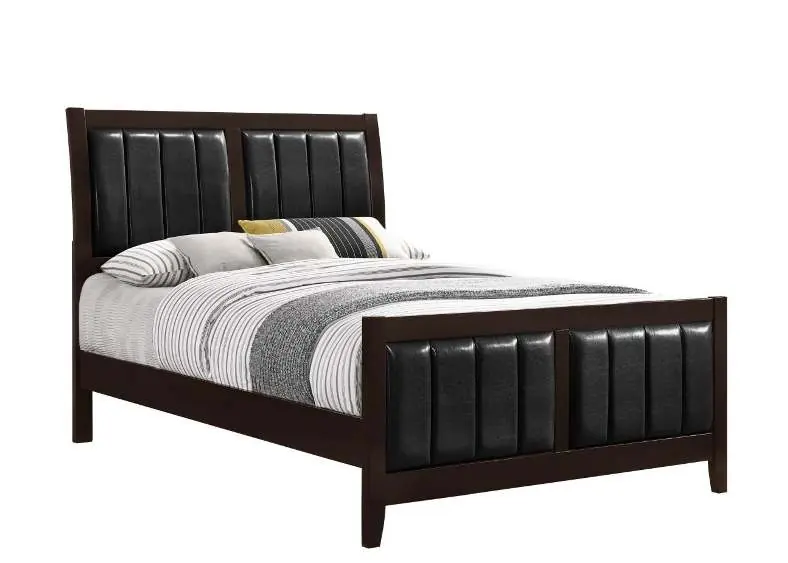

Assembly Instructions for Coaster 202091KE Eastern King Bed and 202094 Mirror
A comprehensive assembly guide for the Coaster 202091KE Eastern King Bed and 202094 Mirror. This manual provides detailed parts lists, hardware identification, step-by-step assembly instructions, and product dimensions to ensure correct...
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Coaster 202091KE Eastern King Bed and the 202094 Mirror. Assembly requires a Phillips head screwdriver (not included) and the provided Allen wrench. p. 2, 7
Key actions
- Assemble the headboard by attaching legs to the panel. p. 3
- Attach mirror supports to the dresser. p. 8
Problems and fixes
Broken or defective parts
Do not modify or repair; contact the store immediately.
p. 2, 7Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bed Inner Size | 76.75"W x 81.00"D | Dimensions for mattress placement. | p. 5 |
Where to find it in the PDF
- Bed Assembly p. 1, 2, 3, 4
- Mirror Assembly p. 6, 7, 8, 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document contains assembly instructions for two separate products: the Coaster 202091KE Eastern King Bed and the Coaster 202094 Mirror. Before beginning assembly, ensure all parts and hardware are present and sorted by size. A Phillips head screwdriver is required for assembly but is not provided by the manufacturer.
Assembly of Coaster 202091KE Eastern King Bed
Parts included: Headboard panel, right/left headboard legs, footboard, bed rails, bed slats, and slat supports with levelers.
Assembly steps:
- Attach the right and left headboard legs to the headboard panel using the provided bolts, lock washers, and flat washers. Ensure the marking stickers (L & R) are correctly positioned.
- Attach the bed rails to the headboard and footboard.
- Install the bed slat supports with levelers onto the bed slats.
- Secure the bed slats to the bed rails using the provided flat head screws.
Assembly of Coaster 202094 Mirror
Parts included: Dresser (from box 202093), mirror, and mirror supports.
Assembly steps:
- Attach the mirror supports to the back of the dresser using the provided screws.
- Align the mirror with the supports and secure it using the provided screws. Ensure the arrow marks are in line during installation.
Safety and Maintenance
This product is intended for home use only and is not suitable for commercial establishments. Do not attempt to repair or modify parts that are broken or defective; contact the store immediately for assistance. Follow the assembly steps in the numbered sequence provided to ensure a fast and easy setup.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Parts missing or damaged
Do not attempt to repair or modify. Contact the store immediately.
Difficulty aligning mirror
Ensure the arrow marks on the mirror supports and dresser are in line.
Before use
- Remove all hardware from the box and sort by size.
- Verify that all parts listed in the parts identification section are present.
- Ensure you have a Phillips head screwdriver available (not included).
- Follow the assembly steps in the exact sequence provided.
Specs in practice
- Inner Size (Bed)
- 76.75 inches wide by 81.00 inches deep.
- Dimension tolerance
- All dimensions are subject to a ±5% tolerance.
Images and diagrams
- The manual provides exploded views of the bed and mirror assembly.
- Stickers labeled 'L' and 'R' on headboard legs indicate correct placement.
- Arrow marks on mirror supports indicate alignment direction.
