Assembly Instructions for Coaster 205131Q Queen Bed
Complete assembly guide for the Coaster 205131Q Queen Bed. Includes parts list, hardware identification, step-by-step assembly instructions, and dimensions.
Quick answers from the manual
Quick answer
- This document provides assembly instructions for the Coaster 205131Q Queen Bed, including a parts list, hardware identification, and step-by-step assembly procedures. p. 1, 2, 3, 4
Key actions
- Assemble headboard p. 5
- Attach side rails p. 6
- Install center support p. 7
- Attach slats p. 8
First start
- Sort all hardware by size and verify all parts are present before starting. p. 2, 4
Problems and fixes
Damaged or defective parts
Do not modify or repair; contact the store immediately.
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Assembly Time | 35 minutes | Estimated time for assembly | p. 2 |
Where to find it in the PDF
- Parts Identification p. 2, 3
- Hardware Identification p. 4
- Assembly Steps p. 5, 6, 7, 8
- Dimensions p. 10
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The assembly of the Coaster 205131Q Queen Bed is estimated to take approximately 35 minutes. Before beginning, ensure you have a Phillips head screwdriver, as it is required but not provided. Sort all hardware by size and verify that all parts listed in the manual are present before starting assembly.
Parts Identification
The bed components are divided into three boxes:
- B1 (Box 1): Headboard Panel (AM), Left Headboard Leg (BM), Right Headboard Leg (CM), Headboard Bottom Rail (DM).
- B2 (Box 2): Footboard Panel (EM), Footboard Leg (FM).
- B3 (Box 3): Bed Rail (GM), Center Rail (HM), Center Rail Support with Leveler (IM), Roll Slat (JM).
Hardware Identification
The hardware pack is located in Box 3 (Z-B3) and includes:
- Allen Wrench (M4 x 110mm)
- Various bolts (Short, Medium, Long) with washers
- Short and Long Flat Head Screws
- Hex Nuts and U Brackets
- Wrench (2 x 24.5 x 85mm)
Assembly Instructions
Follow these steps in the sequence provided to ensure proper assembly:

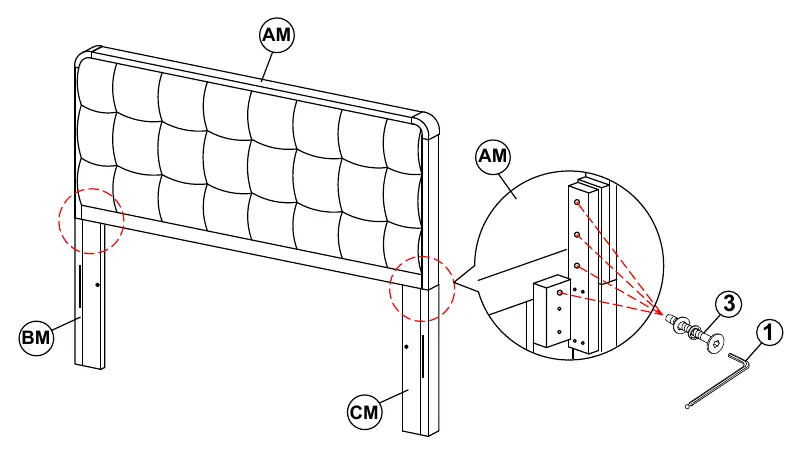

- Step 1-2: Attach the headboard legs (BM, CM) to the headboard panel (AM) using medium bolts. Then, attach the headboard bottom rail (DM) to the legs.

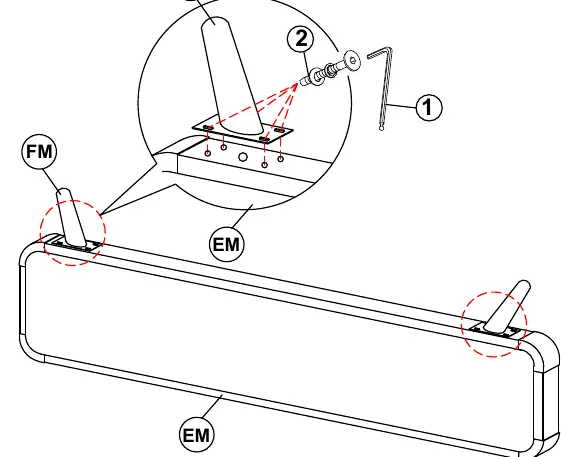

- Step 3: Attach the footboard legs (FM) to the footboard panel (EM) using short bolts.
- Step 4: Connect the bed rails (GM) to the headboard and footboard assemblies.

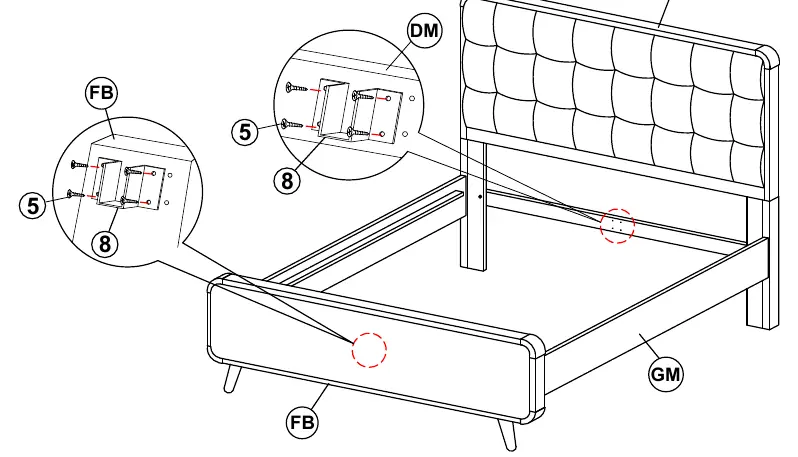

- Step 5: Secure the bed rails to the headboard and footboard using U brackets and long flat head screws.
- Step 6: Install the center rail (HM) and center rail supports (IM) with levelers. Ensure the "THIS WAY UP" label is oriented correctly.

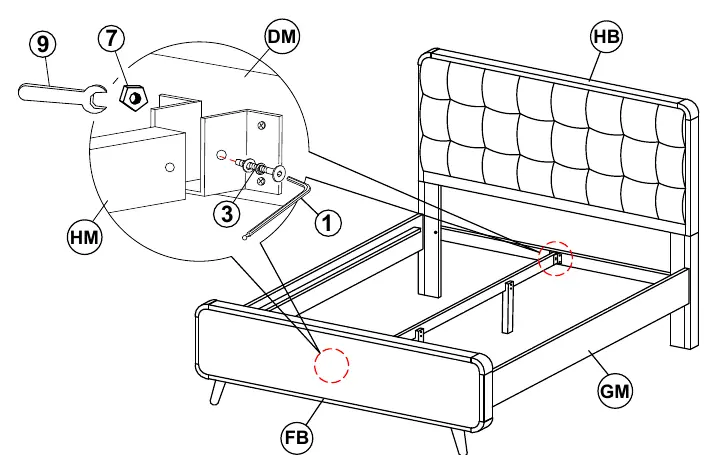

- Step 7: Secure the center rail to the headboard and footboard using bolts and hex nuts.
- Step 8: Place the roll slats (JM) onto the bed frame and secure them using long flat head screws.
Dimensions
The inner size of the bed is 61.00 inches wide by 81.00 inches deep. Please note a dimension tolerance of ±5%.
Safety and Maintenance
This product is intended for home use only and is not suitable for commercial establishments. Do not attempt to repair or modify parts that are broken or defective; contact the store immediately.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Parts are broken or defective
Do not attempt to repair or modify the parts. Contact the store immediately.
Before use
- Remove hardware from box and sort by size
- Verify all hardware and parts are present
- Ensure you have a Phillips head screwdriver (not provided)
- Follow the assembly sequence as numbered
Specs in practice
- Assembly Time
- Estimated 35 minutes
Images and diagrams
- Steps 1-2: Headboard assembly
- Step 3: Footboard leg attachment
- Step 4: Connecting side rails
- Step 5-7: Securing rails and center support
- Step 8: Attaching slats
Model compatibility
- For home use only
- Not intended for commercial establishments
