Assembly Instructions for Coaster 504955 Sofa and 504956 Loveseat
Quick assembly guide for Coaster 504955 Sofa and 504956 Loveseat. Includes parts identification, step-by-step assembly instructions, and product dimensions.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Coaster 504955 Sofa and 504956 Loveseat, including parts lists, step-by-step assembly procedures, and product dimensions. p. 1, 5
Key actions
- Attach legs to the base p. 3, 7
- Install backrests and pillows p. 3, 7
First start
- Unpack and sort hardware p. 2, 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Assembly Time | 8 minutes (Sofa) / 5 minutes (Loveseat) | Estimated assembly duration | p. 2, 6 |
Where to find it in the PDF
- Sofa (504955) Assembly p. 1, 2, 3, 4
- Loveseat (504956) Assembly p. 5, 6, 7, 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for the Coaster 504955 Sofa and 504956 Loveseat. The assembly process is straightforward and estimated to take 8 minutes for the sofa and 5 minutes for the loveseat. Ensure all parts are accounted for before beginning.
Assembly Tips
- Remove all hardware from the box and sort by size.
- Check that all hardware and parts are present prior to starting assembly.
- Follow the attached instructions in the numbered sequence to ensure fast and easy assembly.
- Warning: Do not attempt to repair or modify parts that are broken or defective. Contact the store immediately. This product is for home use only and not intended for commercial establishments.
Parts Identification
The following parts are included for both models:
- A: Sofa/Loveseat Base
- B: Leg (5 pieces)
- C: Backrest (2 pieces)
- D: Pillow (2 pieces)
Assembly Instructions

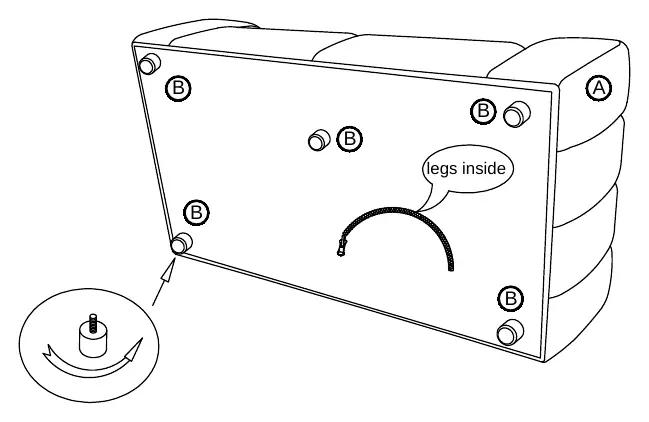

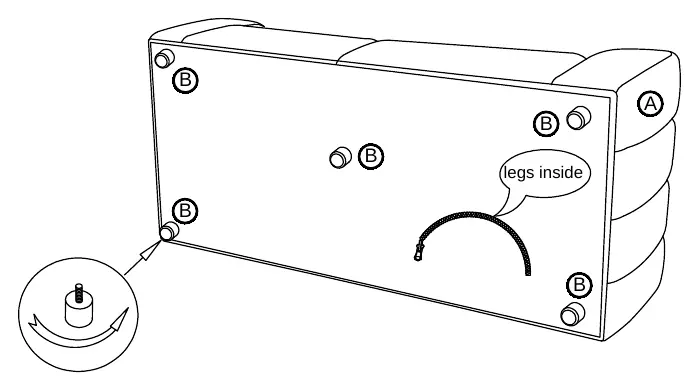

Step 1: Attaching Legs
Locate the legs (B) inside the base (A). Turn the base over and screw the legs (B) into the designated holes on the bottom of the base.

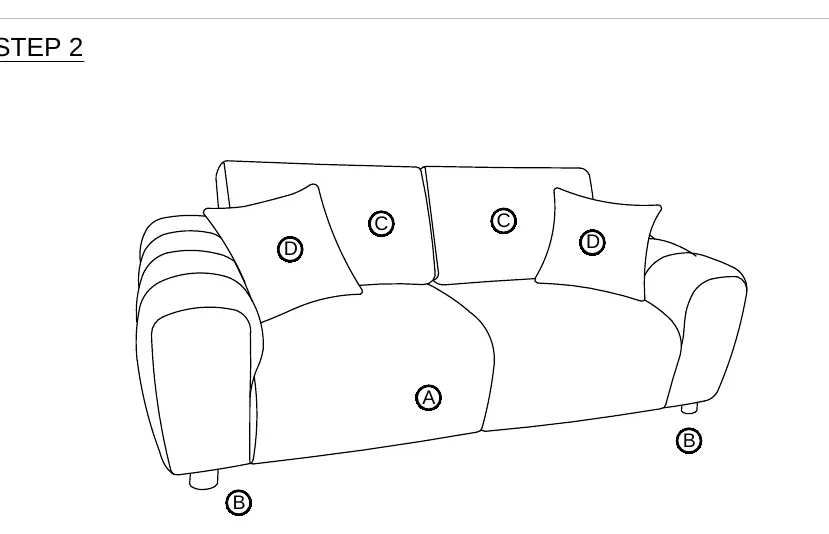

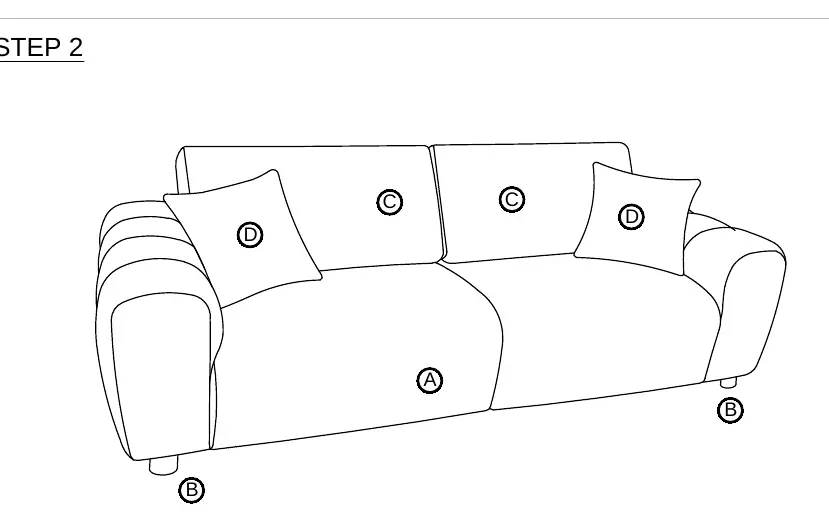

Step 2: Installing Backrests and Pillows
Turn the base (A) upright. Attach the backrests (C) to the base. Place the pillows (D) onto the sofa/loveseat.
Dimensions
Detailed dimensions for the 504955 Sofa are provided on page 4, and for the 504956 Loveseat on page 8. Note that there is a dimension tolerance of ±5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing parts or legs
Check the underside of the sofa/loveseat base, as the legs are often stored inside the base compartment.
Difficulty with assembly
Ensure you are following the numbered sequence provided in the manual. The estimated assembly time is 8 minutes for the sofa and 5 minutes for the loveseat.
Before use
- Remove all hardware from the box
- Sort hardware by size
- Verify all parts (Base, Legs, Backrest, Pillows) are present
- Ensure you have adequate space for assembly
Specs in practice
- Assembly Time
- Estimated time to complete assembly (8 mins for sofa, 5 mins for loveseat)
- Dimension Tolerance
- Manufacturing tolerance of ±5% for all listed dimensions
Images and diagrams
- Step 1 shows the underside of the base with leg attachment points.
- Step 2 shows the final assembly with backrests and pillows in place.
Model compatibility
- Product is for home use only; not intended for commercial establishments.
