User Manual for Costway TY283250 Pedal Go Kart
Quick guide for the Costway TY283250 Pedal Go Kart. Includes assembly instructions, safety warnings, maintenance tips, and technical specifications for safe operation.
Table of contents
Quick Guide
This document provides essential instructions for the assembly and safe operation of the Costway TY283250 Pedal Go Kart. Please read all instructions carefully before use and retain them for future reference.
- Age Restriction: Not suitable for children under 3 years of age.
- Weight Limit: Maximum capacity is 30 kg.
- Supervision: Adult supervision is required at all times.
- Safety: Do not use in traffic, on public roads, highways, or bicycle paths. Always wear protective equipment (helmet, gloves, knee pads, elbow pads).
Assembly Instructions
Ensure all parts are present before beginning assembly. Assemble the product on a flat, stable surface.
- Steering Support: Attach the steering support to the frame of the go-kart using M5*45mm bolts and washers.
- Seat: Fix the seat to the frame using M5*40mm bolts and washers.
- Steering Shaft: Insert the steering shaft through the turning pole. Place the front panel over the steering shaft.

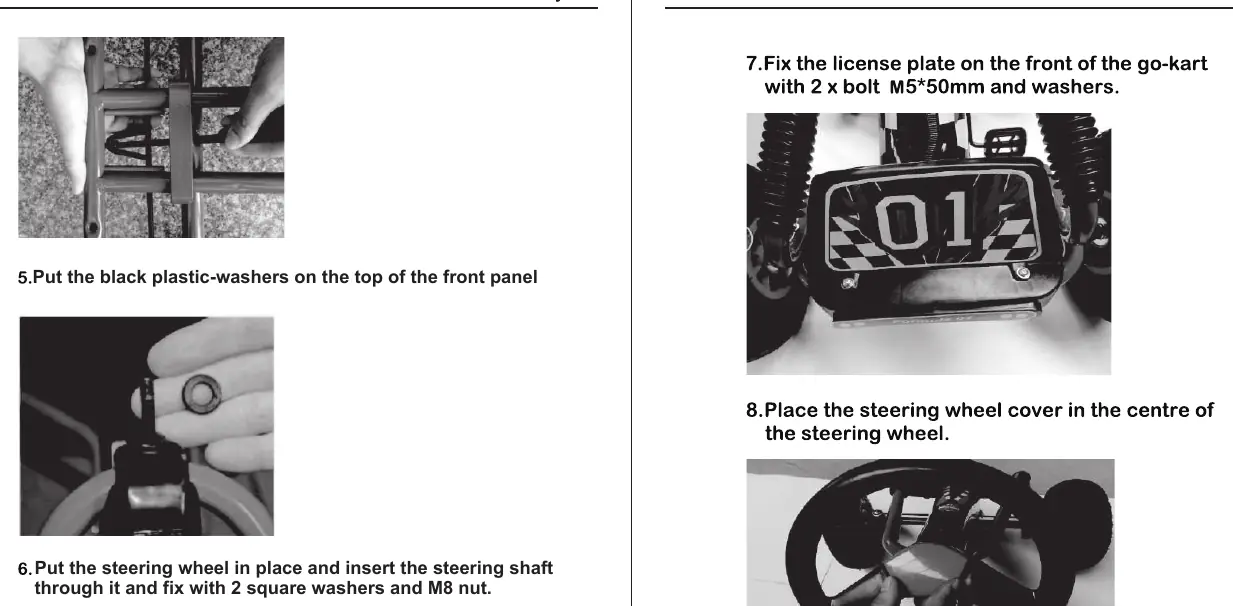

- Front Panel: Place the black plastic washers on the top of the front panel.
- Steering Wheel: Position the steering wheel, insert the steering shaft through it, and secure it with 2 square washers and an M8 nut.
- License Plate: Fix the license plate to the front of the go-kart using 2 M5*50mm bolts and washers.
- Final Touches: Place the steering wheel cover in the center of the steering wheel. Ensure all nuts and bolts are securely tightened before use.
Safety and Maintenance
Regular maintenance is required to ensure the product remains safe to use.
- Tires: Ensure tires are properly inflated before use. Use a hand pump only (maximum 30 PSI).
- Brakes: Perform a brake test before every use. Instruct children on how to apply the brakes.
- Chain: Lubricate the chain frequently.
- Storage: Do not store the product in direct sunlight.
- Inspection: Always inspect the product for loose nuts or bolts before use.
Manufacturer information
Costway
Practical help
Common problems
Missing or damaged parts
Contact the customer service department for assistance; replacements will be shipped.
Tires are flat or soft
Inflate the tires using a hand pump to a maximum of 30 PSI.
Loose steering or seat
Check and tighten all nuts and bolts before every use.
Before use
- Verify all parts are present and accounted for
- Ensure assembly is performed and checked by an adult
- Check that all nuts and bolts are securely tightened
- Inflate tires to the correct pressure (max 30 PSI)
- Perform a brake test
- Ensure the child wears appropriate protective equipment
Specs in practice
- Maximum Weight Capacity
- 30 kg
- Age Recommendation
- 3 years and older
- Tire Pressure
- Maximum 30 PSI
Images and diagrams
- The assembly process involves attaching the steering support, seat, steering shaft, front panel, steering wheel, and license plate in a specific sequence.
- Ensure washers are used with bolts as indicated in the assembly steps.
Model compatibility
- Not for use on public roads, highways, or bicycle paths.
