User Manual for Vevor E01-1 Pedal Kart

Quick guide from the manual

This document provides essential assembly and safety information for the Vevor E01-1 pedal kart. It is intended for adult assembly and supervision. The product is designed for children aged 3-8 years with a maximum load capacity of 66 lbs (approx. 30 kg).

Safety warnings

• Adult assembly required: This product must be assembled by an adult.
• Supervision: Children must be accompanied by an adult while using the kart.
• Usage environment: Use only on flat surfaces. Do not use on stairs, thresholds, steps, or similar uneven areas.
• Load limits: Do not exceed the 66 lbs weight limit. Do not place additional loads on the product as it affects stability.
• Safety precautions: No brakes or seat belts are included. Pushing the kart by other children while a child is riding is strictly prohibited. Keep plastic packaging away from children to avoid suffocation.

Assembly process

Ensure all parts are present before starting assembly. The process involves attaching wheels to the frame, installing the steering system, mounting the headstock, and securing the seat.

Assembly steps

• P1: Fit a 10 cm meson into each side of the front axle, then attach the front and rear wheels.
• P2: Insert the steering rod into the steering pipe from bottom to top. Attach the steering elongation tube and steering wheel. Lock the steering rod using an M5*25 screw and a 5 cm self-locking nut.

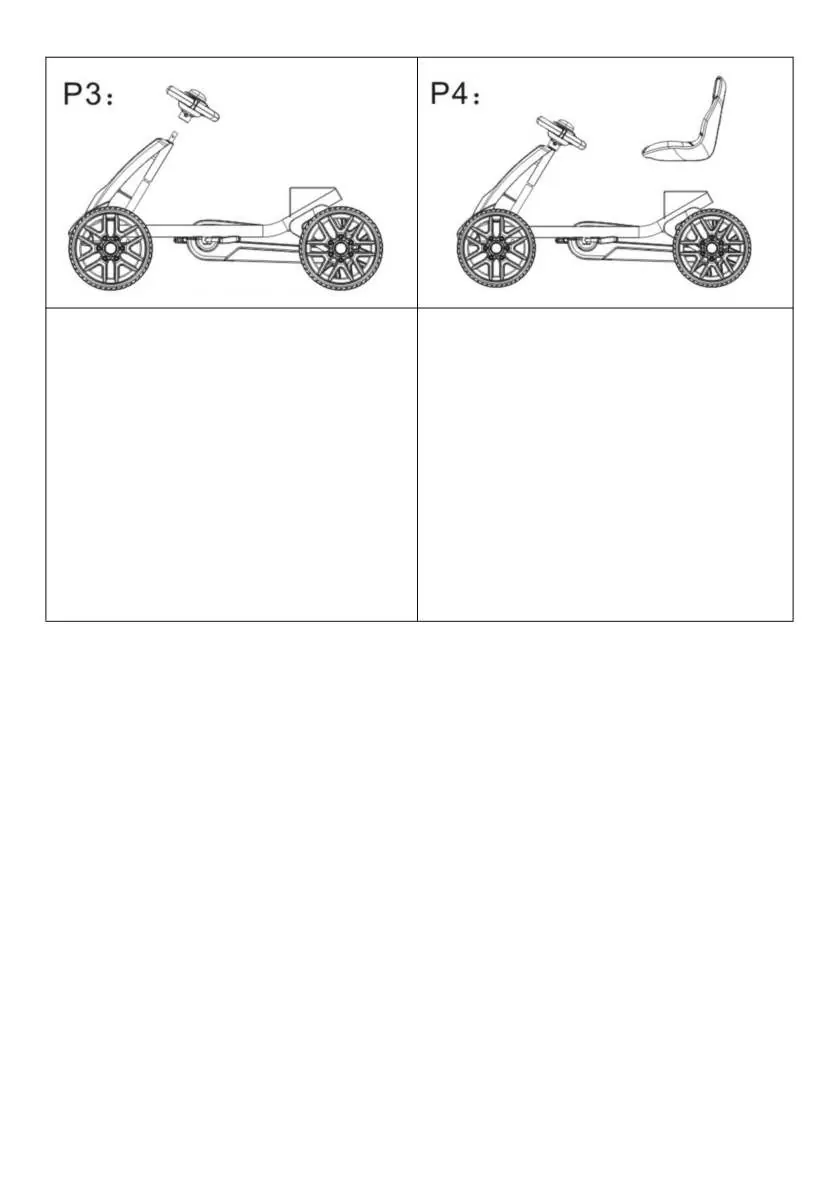

• P3: Install the headstock and secure it with two M4*12 flat tapping screws. Place the iron plate from the parts package into position and secure it with four 4*12 flat tapping screws. Attach the backrest to the frame and lock it with two M24*12 fasteners.
• P4: Install the seat and secure it using two M6*30 flat machine thread screws and two M6 self-locking nuts.

Maintenance

• Regularly apply lubricating oil to all rotating parts and bearings to extend the product's lifespan.
• Avoid long-term storage or use in moist, cold, or hot environments.
• Store the product in a safe, dry place when not in use.

Technical specifications

• Model: E01-1
• Load limit: 66 lbs
• Age range: 3-8 years
• Features: Adjustable seat (forward/backward), no brakes, no seat belts.
