User Manual for Kidzone Licensed Lamborghini SIAN Ride On (12V)

Quick guide from the manual

This document provides essential safety, assembly, and operating instructions for the Kidzone Licensed Lamborghini SIAN Ride On (12V). Important: The vehicle is shipped with the battery disconnected. You must connect the battery before the first use. Adult assembly and supervision are required at all times.

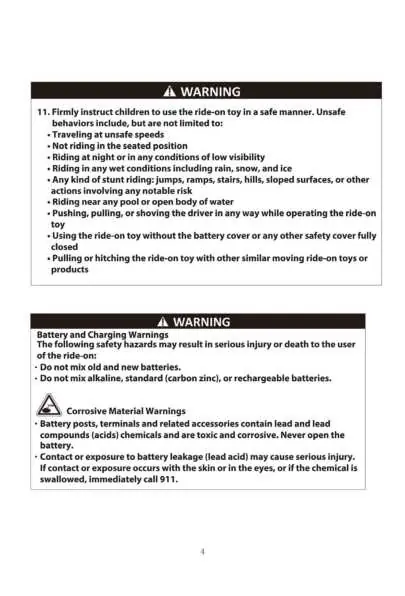

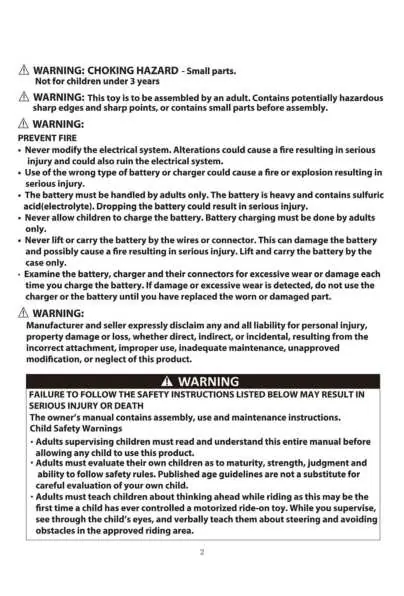

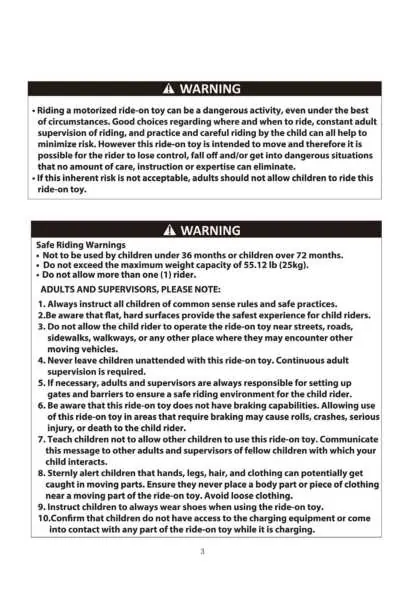

Safety instructions

• Not intended for children under 36 months or over 72 months.
• Maximum user weight is 55.12 lb (25 kg).
• Only one rider allowed at a time.
• Always wear shoes and use protective equipment like a helmet.
• Do not operate near roadways, motor vehicles, steep inclines, steps, or swimming pools.
• Do not use in the dark or in wet conditions.
• Keep hands, hair, and clothing away from moving parts.

Assembly

The vehicle requires adult assembly. Ensure all protective materials and plastic bags are removed and disposed of safely before starting.

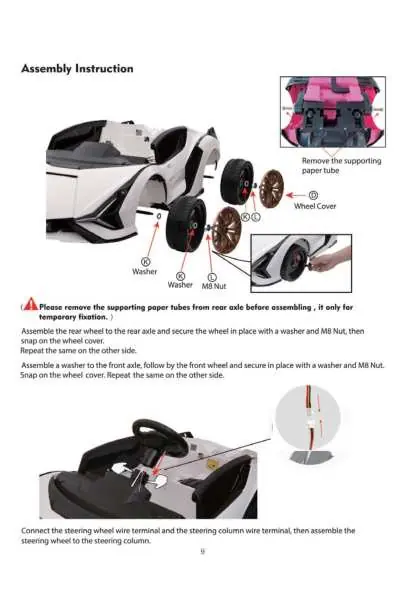

• Wheels: Remove supporting paper tubes from the rear axle. Secure wheels using washers and M8 nuts, then snap on the wheel covers.
• Steering Wheel: Connect the steering wheel wire terminal to the steering column terminal, then attach the steering wheel.

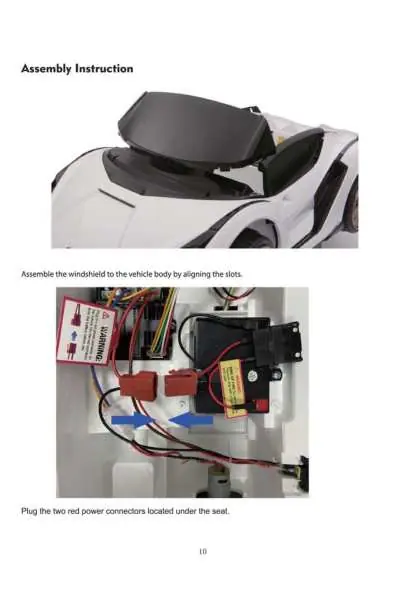

• Windshield: Align and snap the windshield into the vehicle body slots.
• Power: Plug the two red power connectors located under the seat.
• Seat: Align the seat and secure it with screws.
• Mirrors: Insert the rear-view mirrors into the sides of the vehicle body.

Battery and charging

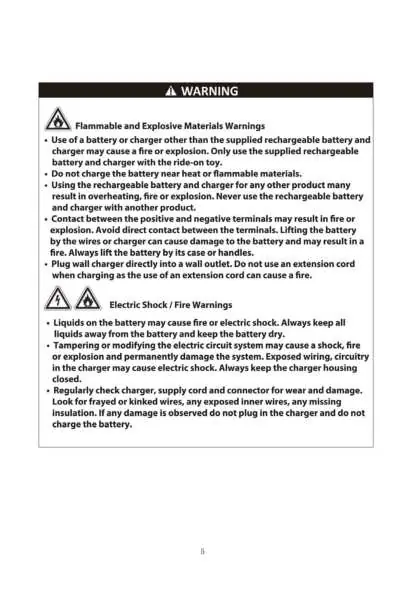

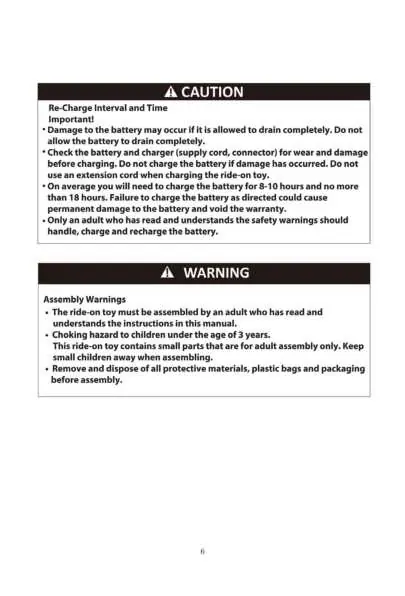

Warning: Only adults should handle, charge, or recharge the battery. Never allow the battery to drain completely.

• Charging port is located below the vehicle seat.
• The vehicle must be turned OFF during charging.
• Initial charge time is 12 hours. Subsequent charges take 8-10 hours.
• Do not charge for more than 18 hours.
• Charge at least once a month even if the vehicle is not in use.
• The charger indicator is red during charging and turns blue when complete.

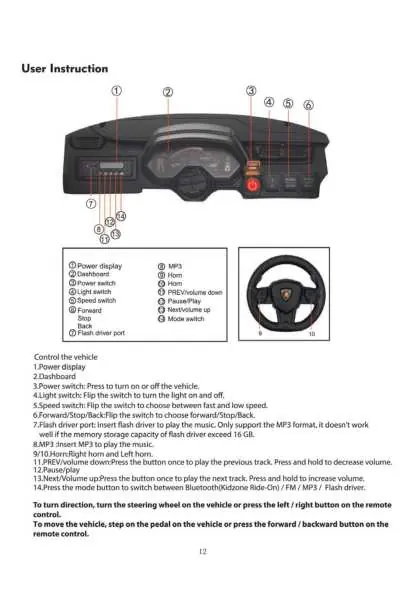

Operation

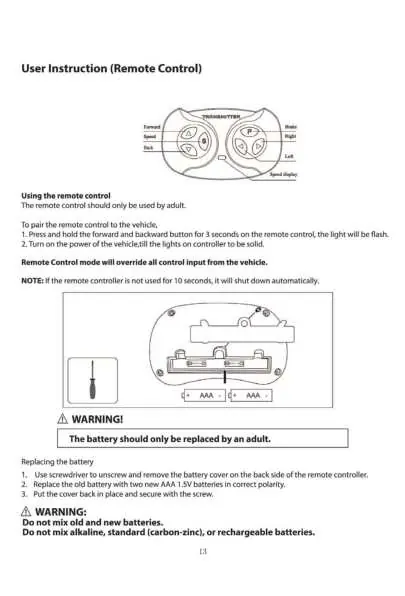

The vehicle can be controlled via the dashboard or the included remote control. The remote control overrides all manual inputs from the vehicle. To pair the remote, press and hold the forward and backward buttons for 3 seconds until the light flashes, then turn on the vehicle power.

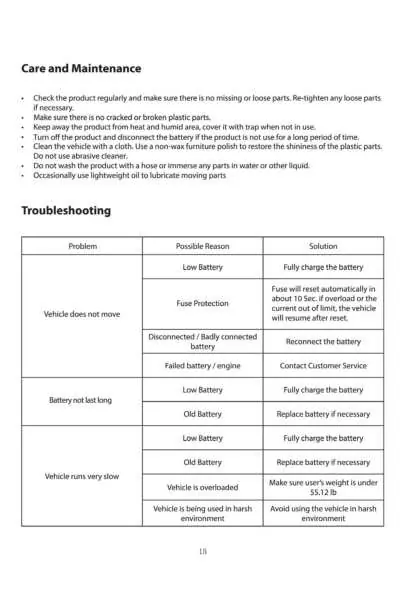

Troubleshooting

• Vehicle does not move: Check for low battery, ensure battery is connected, or wait for the automatic fuse reset (approx. 10 seconds).
• Vehicle runs slowly: Check for low battery, overload (over 55.12 lb), or harsh terrain.
• Battery does not charge: Ensure charger is firmly plugged in and connections are secure.
