Installation Guide for Costway 23755CK Wooden Round Table
Quick installation guide for the Costway 23755CK Wooden Round Table. Includes assembly steps, parts list, and essential tips for stable setup.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Costway 23755CK Wooden Round Table, emphasizing the '50% tighten' rule for proper alignment. p. 2, 3, 4
Key actions
- Assemble on a flat surface p. 2
- Use the 50% tightening rule p. 2, 3, 4
First start
- Follow the 50% tightening rule p. 2, 3, 4
Show 2 more answers Show less
Problems and fixes
Unstable table
Loosen all screws, adjust on flat ground, and re-tighten.
p. 2Where to find it in the PDF
- Safety and Before You Start p. 2
- Parts and Hardware List p. 3
- Assembly Steps p. 3, 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides assembly instructions for the Costway 23755CK Wooden Round Table. The most critical instruction is the 50% tightening rule: do not fully tighten any screws until all screws are in place. This ensures that all holes align correctly during the assembly process. Always assemble the product on a flat, stable surface to ensure the final result is level.

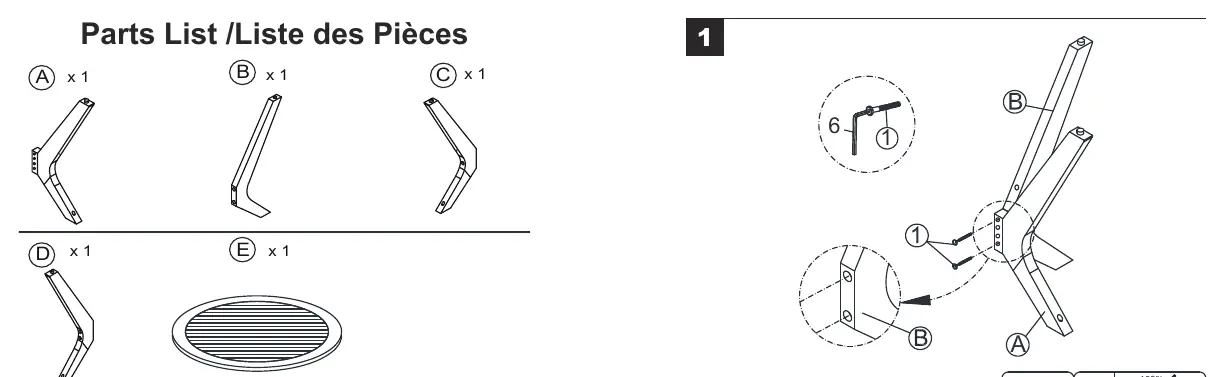

Parts and Hardware
Before beginning assembly, verify you have all components:
- Parts: Legs (A, B, C, D) and Tabletop (E).
- Hardware: Bolts (M6x40mm, M6x80mm, M6x20mm), Steel Washers, Metal Connector, and Allen Key.
Assembly Instructions
Follow these steps in order:

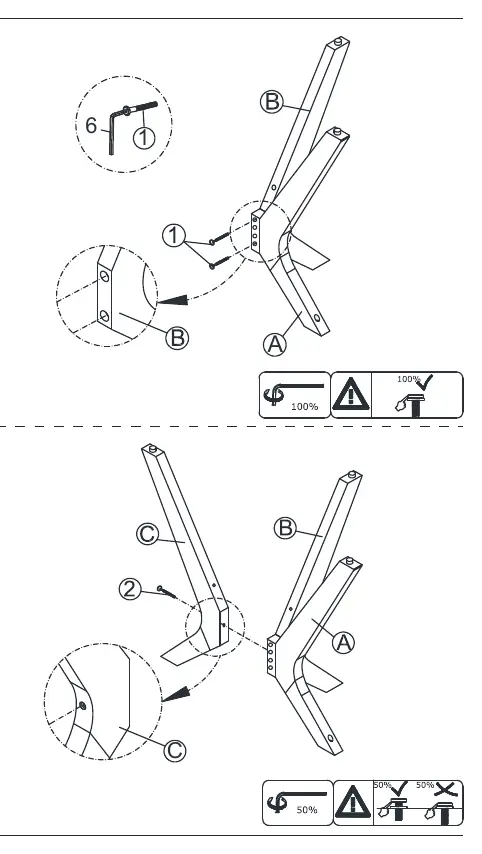

- Leg Assembly: Connect legs B and A using bolt 1.
- Leg Assembly: Connect leg C to the existing assembly using bolt 2.
- Leg Assembly: Connect leg D to the assembly using bolt 2.
- Connector Attachment: Attach the metal connector 5 to the legs using bolts 3 and washers 4.

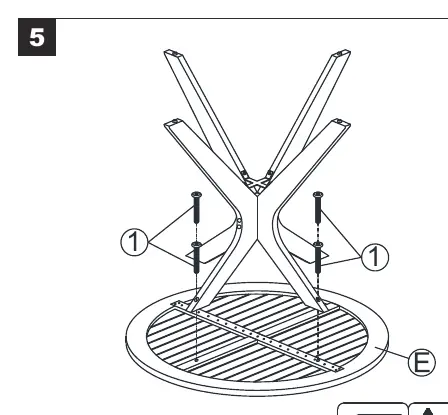

- Tabletop Attachment: Attach the tabletop E to the leg assembly using bolts 1.
- Final Adjustment: Once assembled, place the table on a flat surface. If the table is unstable, loosen all screws, adjust the position on the flat ground, and re-tighten all screws gradually.
Maintenance and Stability
If you encounter issues with alignment or stability, do not force the screws. Loosen all screws to 50% to provide more space for adjustment. The holes are designed to be slightly larger to facilitate this process. An Allen key is recommended for assembly; using an electric drill is not advised as it may cause over-tightening or damage.
Manufacturer information
Costway
Practical help
Common problems
Table is unstable
Loosen all screws, place the table on a flat surface to adjust, and then re-tighten all screws gradually.
Screws are not aligning with holes
Loosen all other screws to 50% to provide more space for adjustment.
Before use
- Count all parts and hardware against the list
- Assemble near the final location to avoid moving the finished product
- Ensure you have the included Allen key
- Clear a flat, stable workspace
Show more Show less
Images and diagrams
- The manual uses a 50% tightening rule to ensure all holes align correctly before final tightening.
Model compatibility
- Designed for indoor use on flat, stable surfaces.
