Operator's Manual for Craftsman 19-inch Rechargeable Rotary Mower 247.370480
Comprehensive operator's manual for the Craftsman 19-inch Rechargeable Rotary Mower (Model 247.370480). Includes assembly, operation, charging, maintenance, and troubleshooting guides.
Quick answers from the manual
Quick answer
- The Craftsman 19-inch Rechargeable Rotary Mower (247.370480) is a battery-powered mower. Key operations include charging the battery for 14 hours before first use, using the motor/blade control handle to operate, and performing regular maintenance like blade sharpening and deck cleaning. p. 1, 11
Key actions

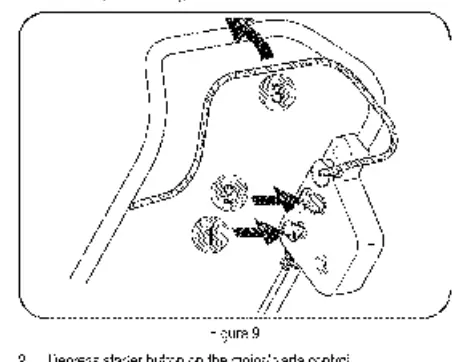

- Starting the mower: Insert key, depress starter button, and pull motor/blade control handle up against the upper handle. p. 11
- Charging the battery: Plug the battery charger into the mower first, then into a standard 110/120 volt electrical outlet. p. 11
First start
- Charge the battery for at least 14 hours before operating the mower. p. 8, 11
Problems and fixes
Motor fails to start
Insert ignition key, engage motor/blade control, charge battery, or unclog mower deck.
p. 17Maintenance and reset
- If the circuit breaker reset button pops out, release the control handle, wait at least one minute (or 15 minutes if it trips repeatedly), and press the button inward to reset. p. 15
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery | 12 Volt | Power source | p. 2 |
| Motor | 48 Volt DC | Drive motor | p. 2 |
Where to find it in the PDF
- Assembly p. 8, 9
- Operation p. 10, 11, 12
- Service and Maintenance p. 13, 14, 15
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe operation and maintenance of the Craftsman 19-inch Rechargeable Rotary Mower (Model 247.370480). Before first use, the battery must be charged for at least 14 hours. Always wear safety glasses, keep children and bystanders at least 75 feet away, and never operate the mower in the rain or on wet grass.
Assembly
The mower is packaged with the handle and grass catcher loose. To assemble:
- Handle: Remove packing material, loosen hand knobs, pivot the upper handle into the operating position, and secure the lower handle to the brackets using the star knobs.
- Grass Catcher: Lift the rear discharge door and remove the mulching baffle. Place the grass catcher on the pivot rod.
- Side Discharge: To convert, ensure the grass catcher is removed, replace the rear mulching baffle, and attach the side discharge chute under the hinge pin on the mulching plug assembly.
Operation
The mower features a motor/blade control handle that acts as a safety device. To start, insert the key, depress the starter button, and pull the control handle up against the upper handle. Releasing the handle stops the motor and blade. The cutting height can be adjusted using the lever located above the rear left wheel.
Charging and Battery Care
Always charge the mower indoors in a dry area. Use only the provided battery charger (Part number 725-04387). Plug the charger into the mower first, then into a standard 110/120V outlet. A full 14-hour charge is recommended. During storage, charge the mower once every two months.
Maintenance
Regular maintenance is required for safe operation:
- Lubrication: Lubricate wheels and the rear discharge door/side mulch plug pivot points at least once a season with light oil.
- Deck Care: Clean the underside of the deck after each use to prevent rust. Do not use water.
- Blade Care: Periodically inspect the blade for damage. If sharpening is needed, remove equal amounts of metal from both ends to maintain balance. Torque the blade bolt to 170-220 in. lbs.
- Circuit Breaker: If the mower stops due to overload, the circuit breaker reset button may pop out. Wait at least one minute before pressing it back in to reset.
Manufacturer information
CRAFTSMAN
Practical help
Common problems
Motor fails to start
Check if the key is inserted, the motor/blade control is engaged, the battery is charged, or if the deck is clogged.
Mower stops while mowing
Check for a discharged battery, excessive grass load, clogged deck, or tripped circuit breaker.
Excessive vibration
Check for a loose, unbalanced, or bent blade, or a bent motor shaft.
Uneven cut
Sharpen or replace the blade.
Before use
- Charge battery for at least 14 hours before initial use.
- Clear the lawn of stones, sticks, wires, and other debris.
- Ensure the grass catcher or discharge cover is properly installed.
- Wear safety glasses and sturdy, closed-toe footwear.
- Check that all fasteners are tight.
- Inspect the blade for damage or cracks.
Images and diagrams
- Figure 1: Handle assembly and pivot positioning.

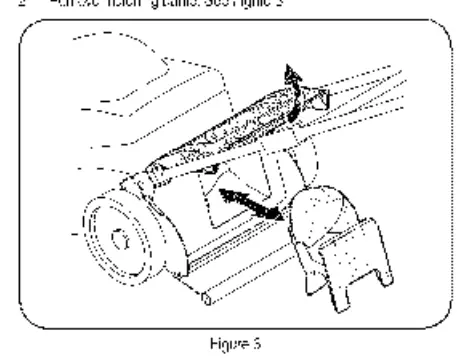

- Figure 3: Attaching the grass catcher after removing the mulching baffle.
- Figure 5: Converting to side discharge using the chute hooks.
- Figure 6: Cutting height adjustment lever location.
- Figure 12: Blade removal using a block of wood as a stabilizer.
Model compatibility
- Use only original equipment manufacturer (OEM) parts listed in the manual.
- Replacement fuse must be UL listed, 40 amp, 58 volt.
