Parts List for Craftsman 205cc Rear Tine Tiller 247.29933
Comprehensive parts list and exploded view diagrams for the Craftsman 205cc Rear Tine Tiller (Model 247.29933). This guide includes detailed component breakdowns for the tiller chassis and the Briggs & Stratton 12T102 engine to assist with...
Table of contents
Manual images
Click an image to enlargeQuick Guide to this Parts List
This document serves as a comprehensive parts catalog for the Craftsman 205cc Rear Tine Tiller, model 247.29933. It is designed to help users and technicians identify, locate, and order replacement parts for both the tiller chassis and the integrated Briggs & Stratton engine.
Using the Parts Diagrams
The manual is organized into exploded view diagrams followed by corresponding tables. To find a part:
- Locate the component in the exploded view diagram.
- Identify the reference number (Ref. No.) pointing to that part.
- Find the corresponding Ref. No. in the table on the adjacent page to get the specific Part No. and description.
Tiller Assembly

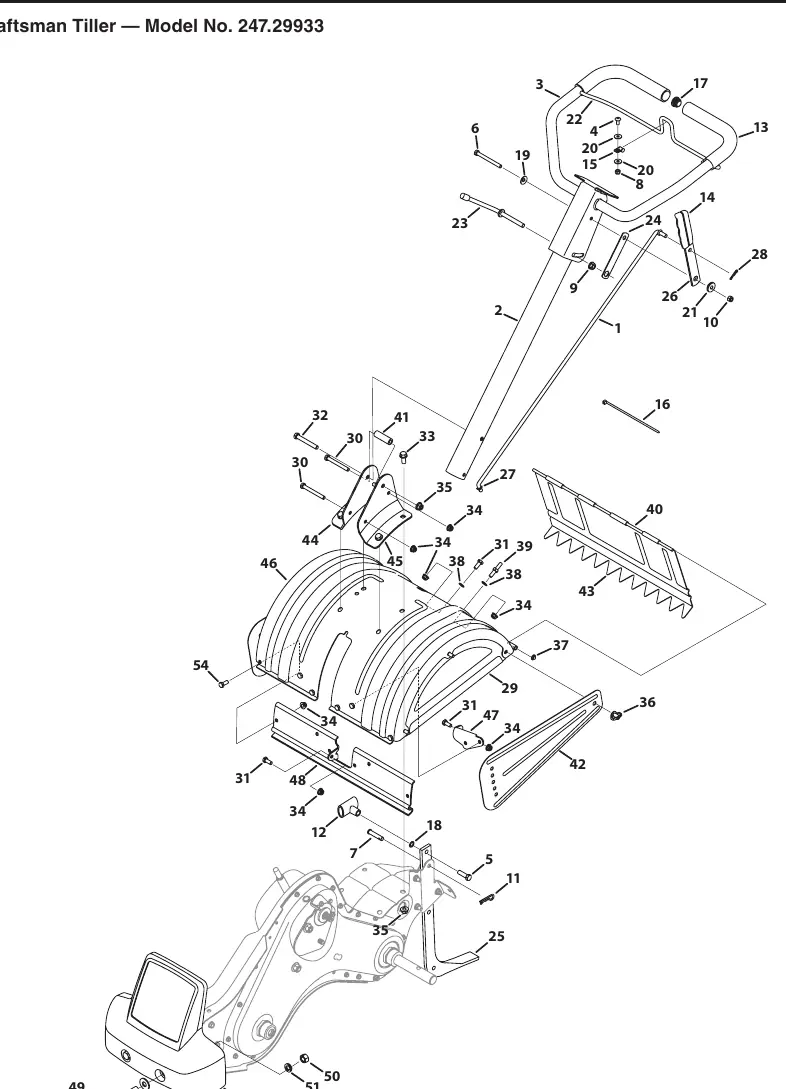

Pages 2 through 7 cover the main tiller assembly, including the handle, tine shield, gear case, and transmission components. These diagrams are essential for repairs involving the drive system, tines, and frame.
Engine Components
Pages 8 through 16 detail the Briggs & Stratton engine, model 12T102. This section includes the cylinder, carburetor, fuel system, and starter components. Always verify the engine model number when ordering engine-specific parts.
Decals and Safety Labels
Page 17 provides a reference for the safety and operational decals used on the unit. Ensure these labels are legible and replace them if they become damaged or unreadable.
