Installation Manual for CURT 11475 Class I Trailer Hitch
Step-by-step installation guide for the CURT 11475 Class I Trailer Hitch on a Volkswagen Golf R. Includes tool requirements, exhaust lowering, fishwiring procedures, and torque specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides installation instructions for the CURT 11475 Class I Trailer Hitch, designed for the 2017-Present Volkswagen Golf R. The installation requires basic mechanical skills and specific tools, including a die grinder to enlarge access holes. Always wear safety glasses during installation and ensure the vehicle's towing capacity is never exceeded.
Tools Required
- Ratchet
- 9-inch socket extension
- 13mm socket
- 3/4-inch socket
- Torque wrench
- Die grinder
Installation Steps
- Lower Exhaust: Remove the M8 bolts from the two rear exhaust hangers using a 13mm socket. Save the hardware for reinstallation. Removing an additional exhaust hanger may ease the process.
- Prepare Frame Rails: Use a die grinder to enlarge the access slot on each side of the frame rail to 1.125 inches.
- Fishwire Hardware: Fishwire the 1/2-inch carriage bolts and SP10 spacers through the access holes in the driver and passenger side frame rails.
- Reverse Fishwire: Reverse fishwire the 1/2-inch carriage bolts and SP10 spacers into position. Leave the fishwires attached. Disconnecting the active exhaust connector may ease installation.
- Mount Hitch: Raise the hitch into position, remove the fishwires, and loosely secure the hitch using the 1/2-inch flange nuts.
- Torque Hardware: Torque all 1/2-inch hardware to 110 ft-lbs.
- Reinstall Exhaust: Raise the exhaust back into position by reversing steps 1-3.

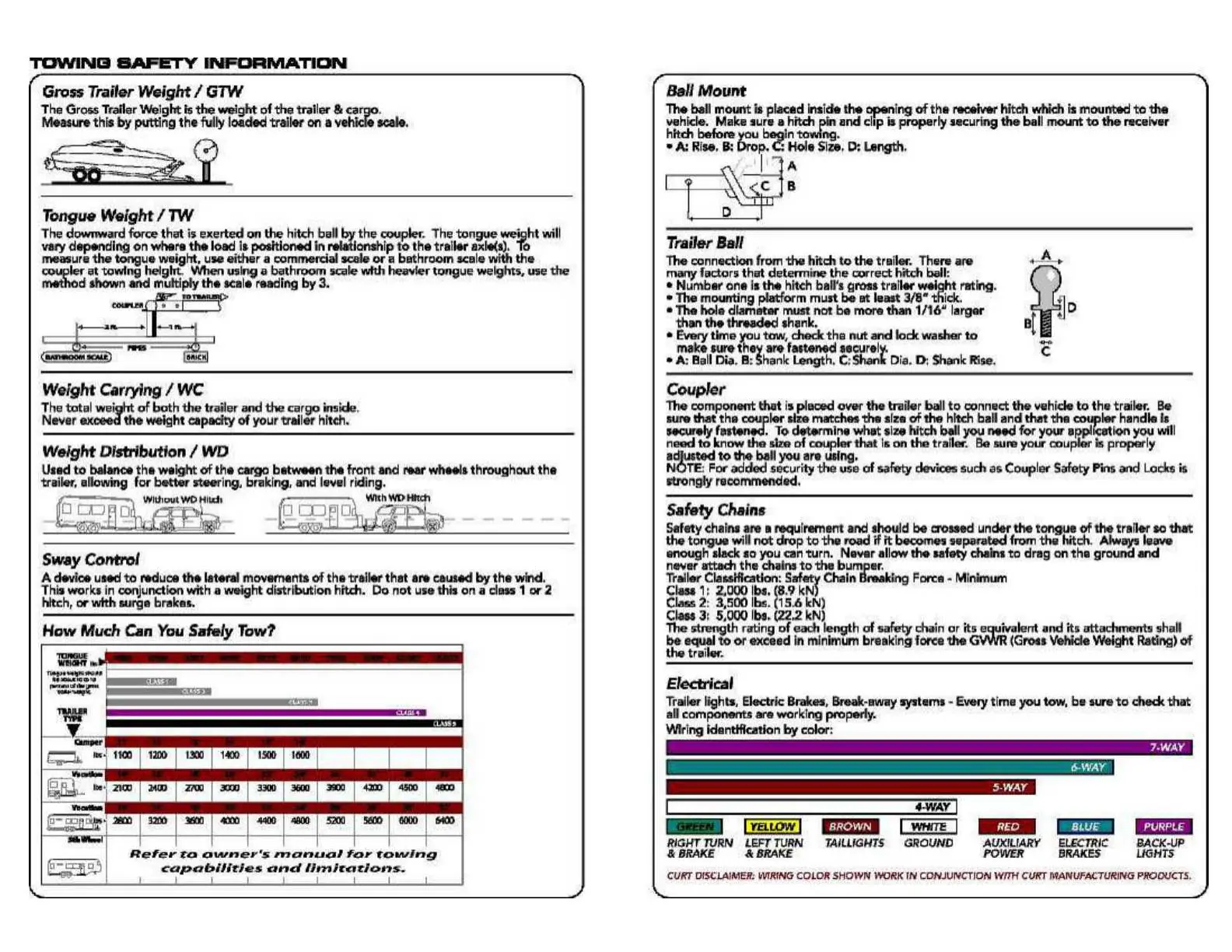

Towing Safety Information
Weight Ratings: The hitch is rated for a trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch.
Important Warnings:
- Never exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads (wheel-less loads) must be supported by 18050 stabilizing straps. Failure to do so will void the product warranty.
- Periodically check the receiver hitch to ensure all fasteners are tight and structural components are sound.
