Danfoss 027F3156 Repair Kit Installation Guide for PM, PML/X Size 80
A comprehensive guide for the Danfoss 027F3156 repair kit, designed for PM, PML, and PMLX valves (size 80). Includes component identification, assembly diagrams, and a detailed list of spare parts.
Table of contents
Quick guide from the manual
This document provides the necessary information for using the Danfoss 027F3156 repair kit on PM, PML, and PMLX valves of size 80. It contains exploded-view diagrams for each valve type and a detailed inventory of the included spare parts, specifying material types (Aluminium or Fibre) and quantities.

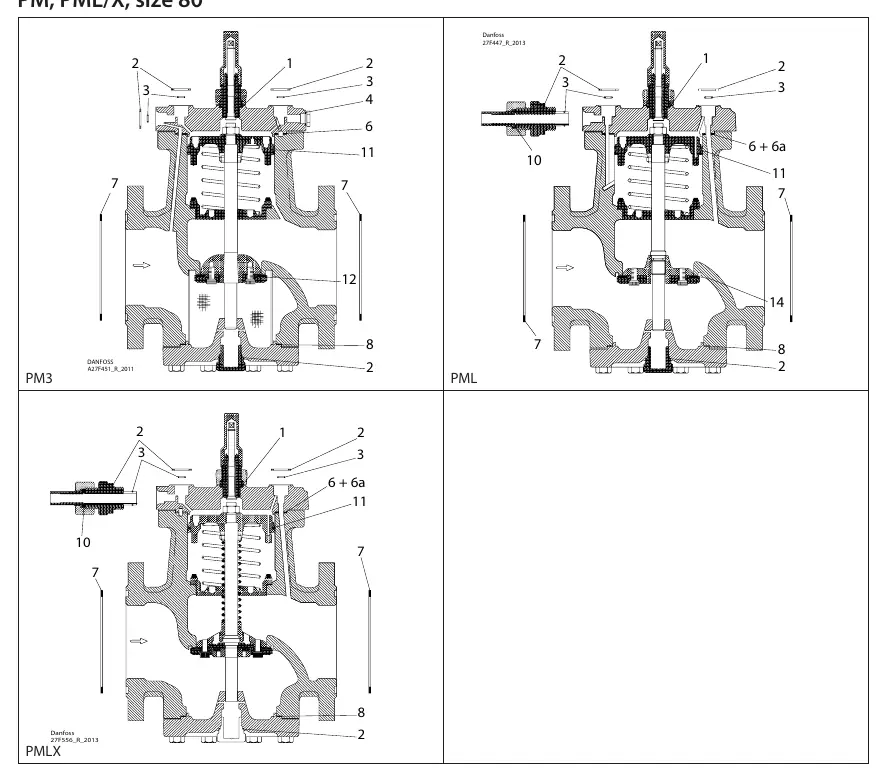

Valve assembly diagrams
The manual provides specific cross-sectional diagrams for the following valve configurations:
- PM3: Shows the placement of components 1, 2, 3, 4, 6, 7, 8, 11, and 12.
- PML: Shows the placement of components 1, 2, 3, 6, 6a, 7, 8, 10, 11, and 14.
- PMLX: Shows the placement of components 1, 2, 3, 6, 6a, 7, 8, 10, 11, and 12.
Spare parts inventory
The kit includes various gaskets and seals. Note that some parts are included in the package but are not used for the PM, PML/X 80 models. Ensure you identify the correct part number and material (Alu. or Fibre) before installation. Key components include:
- Gaskets ranging from 9mm to 154mm in diameter.
- Specific quantities for each part number (e.g., 4 units of 26mm Alu. gaskets, 2 units of 154mm Fibre gaskets).
- Parts marked with an asterisk (*) are included in the kit but are not applicable to the PM, PML/X 80 series.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Unsure which parts are used for the PM, PML/X 80 model.
Refer to the diagrams on page 1 and the parts list on page 2. Parts marked with an asterisk (*) are included in the kit but are not used for this specific valve size.
Before use
- Verify the valve model (PM, PML, or PMLX) and size (80).
- Cross-reference the parts in the kit with the exploded-view diagram for your specific valve model.
- Check the material type (Aluminium vs. Fibre) for each seal to ensure correct application.
- Ensure all old seals are removed before installing new ones from the kit.
Specs in practice
- Alu. (Aluminium)
- Material type for specific gaskets/seals in the kit.
Images and diagrams
- The diagrams show the internal assembly sequence of the valve components.
- Numbers in the diagrams correspond to the specific spare parts listed on page 2.
Model compatibility
- This kit is specifically designed for PM, PML, and PMLX valves of size 80.
- Some components in the package are not compatible with the PM, PML/X 80 series.
