Danfoss Repair Kit Orifice Installation Guide for TEA, TEAT, TEVA, TEAQ
Installation guide for Danfoss orifice repair kits (068G2050-068G2059). Includes assembly diagrams, torque specifications, and component identification for TEA, TEAT, TEVA, and TEAQ valves.
Table of contents
Manual images
Jump to the sectionQuick Guide
This document provides assembly instructions for Danfoss orifice repair kits used with TEA, TEAT, TEVA, and TEAQ valves. The repair kits are compatible with valve sizes 20 and 85. Ensure you have the correct kit code number (068G2050 through 068G2059) before beginning the installation. Proper torque application is critical for valve performance.
Assembly and Torque Specifications
The installation requires precise torque application to ensure the valve functions correctly and remains sealed. Refer to the specific diagram for your valve model (TEA, TEAT, TEVA, or TEAQ) to identify the correct assembly sequence.
- Upper Torque Requirement: 90 Nm (66 lbf-ft)
- Lower Torque Requirement: 50 Nm (36 lbf-ft)
Follow the numbered sequence (1-7) shown in the diagrams to assemble the components correctly.
Components
The repair kit includes various seals and components. Note that specific parts are made of different materials (Aluminium or Fibre) and have specific dimensions:
- Part 1: Aluminium seal (Ø36 mm / Ø1.42")
- Part 2: Aluminium seal (Ø17.5 mm / Ø0.69")
- Part 3: Seal (Ø8 mm / Ø0.32" for size 20; Ø9 mm / Ø0.35" for size 85)
- Part 4: Fibre seal (Ø32 mm / Ø1.26" for size 20; Ø39 mm / Ø1.54" for size 85)
- Part 5: Aluminium seal (Ø26 mm / Ø1.02")
- Part 6: Valve component
- Part 7: Included in repair kit 068G2050 only
Compatibility
This repair kit is designed for the following Danfoss valve series:
- TEA
- TEAT
- TEVA
- TEAQ
The kits are applicable to valve sizes 20 and 85.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Incorrect torque application
Ensure torque is applied exactly as specified (90 Nm or 50 Nm) to prevent leaks or mechanical failure.
Part identification confusion
Verify the valve size (20 or 85) and material type (Aluminium or Fibre) against the component list before installation.
Missing part 7
Part 7 is only included in repair kit 068G2050. If you are using a different kit code, this part is not required.
Before use
- Verify the valve model (TEA, TEAT, TEVA, or TEAQ).
- Confirm the valve size (20 or 85).
- Check the repair kit code number (068G2050-068G2059) against the valve requirements.
- Ensure a calibrated torque wrench is available for 90 Nm and 50 Nm settings.
Specs in practice
- 90 Nm (66 lbf-ft)
- Required torque for the upper assembly section.
- 50 Nm (36 lbf-ft)
- Required torque for the lower assembly section.
Images and diagrams

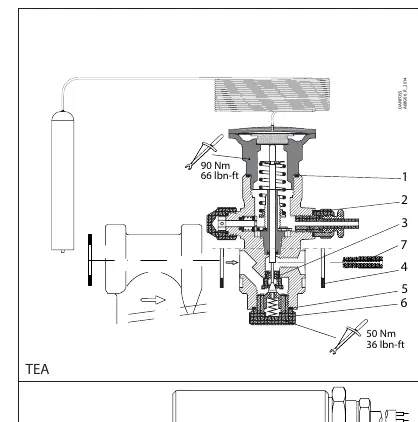

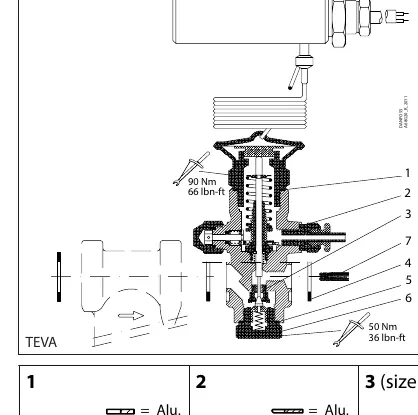

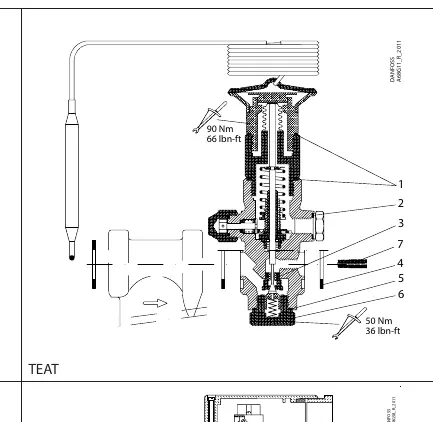

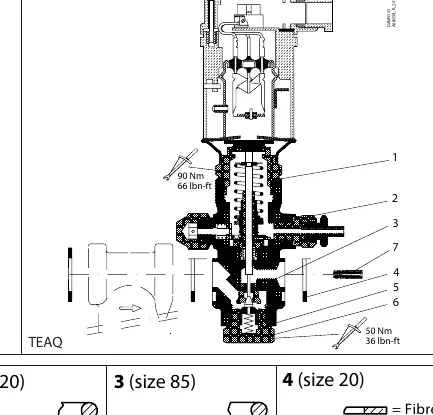

- The diagrams provide an exploded view of the valve assembly, numbered 1 through 7, indicating the correct placement of seals and components.
- Arrows indicate the specific points where torque must be applied.
Model compatibility
- Compatible with TEA, TEAT, TEVA, and TEAQ valve series.
- Applicable to valve sizes 20 and 85.
