Installation Guide for Danfoss 032F2337 Overhaul Kit

A comprehensive installation and parts identification guide for the Danfoss 032F2337 Overhaul Kit, compatible with EVRA and EVRS size 10 valves. Includes detailed component breakdown and assembly diagrams.

Table of contents

Manual images

Jump to the section
EVRA valve assembly diagram Page 1 EVRS valve assembly diagram Page 1 Parts list and specifications Page 1

Quick guide from the manual

This document serves as the official parts identification and assembly reference for the Danfoss 032F2337 Overhaul Kit. This kit is specifically designed for maintenance and repair of EVRA and EVRS valves (size 10). Use the provided diagrams to ensure correct placement of all components during the overhaul process.

Component Identification

The kit contains 11 distinct components. Ensure all parts are accounted for before beginning the assembly:

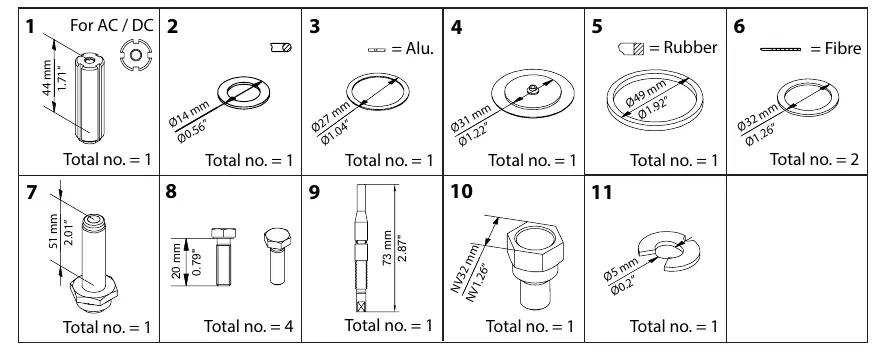

Parts list and specifications
Parts list and specifications
  • 1: Plunger assembly (For AC/DC) - Total: 1
  • 2: O-ring (14mm / 0.56") - Total: 1
  • 3: Aluminium gasket (27mm / 1.04") - Total: 1
  • 4: Gasket (31mm / 1.22") - Total: 1
  • 5: Rubber gasket (49mm / 1.92") - Total: 1
  • 6: Fibre gasket (32mm / 1.26") - Total: 2
  • 7: Valve component (51mm / 2.01") - Total: 1
  • 8: Bolts (20mm / 0.79") - Total: 4
  • 9: Valve stem (73mm / 2.87") - Total: 1
  • 10: Nut (NV32mm / 1.26") - Total: 1
  • 11: Washer (5mm / 0.2") - Total: 1

Assembly Reference

The manual provides two distinct exploded-view diagrams to assist with the installation:

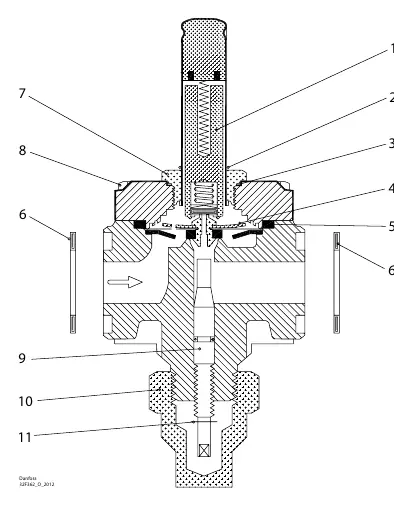

EVRA valve assembly diagram
EVRA valve assembly diagram

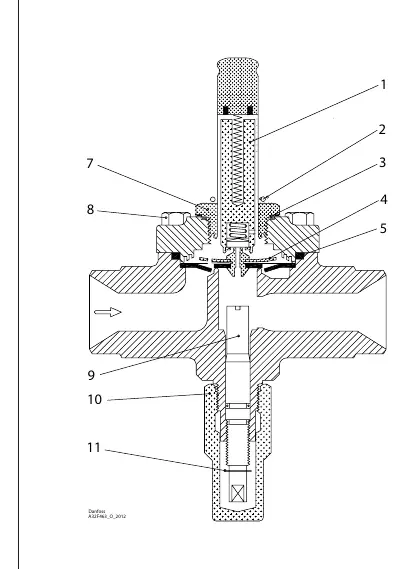

EVRS valve assembly diagram
EVRS valve assembly diagram
  • EVRA Valve Assembly: Refer to the left-hand diagram to map the numbered components (1-11) to their specific locations within the EVRA valve body.
  • EVRS Valve Assembly: Refer to the right-hand diagram to map the numbered components (1-11) to their specific locations within the EVRS valve body.

Ensure that gaskets (Alu, Rubber, Fibre) are placed in their designated positions as shown in the diagrams to maintain proper valve sealing.

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Incorrect gasket placement

Ensure the specific material (Alu, Rubber, or Fibre) is placed in the exact location indicated by the exploded view diagram.

Missing components

Verify the kit contents against the list of 11 items provided in the manual before starting the assembly.

Before use

  • Confirm the valve model is EVRA or EVRS size 10.
  • Verify all 11 components are present in the kit.
  • Identify the correct gasket material (Alu, Rubber, Fibre) for each specific seal location.
  • Ensure the valve is depressurized and safe to work on before disassembly.

Specs in practice

EVRA / EVRS Size 10
The specific valve series compatible with this overhaul kit.
Fibre / Alu / Rubber
Material types for gaskets; ensure the correct material is used for the corresponding seal point.

Images and diagrams

  • The diagrams provide an exploded view of the valve assembly.
  • Numbers 1 through 11 correspond to the parts list provided in the manual.
  • The diagrams distinguish between EVRA and EVRS valve configurations.

Model compatibility

  • Kit is specifically for EVRA and EVRS valves, size 10.
  • Plunger assembly (Item 1) is suitable for both AC and DC configurations.
