Danfoss 087R9071 DH-SM ECL Clip Mounting Kit

Product Overview

The Danfoss 087R9071 DH-SM ECL Clip is a specialized mounting accessory designed to facilitate the wall installation of compatible ECL controllers. This mounting kit provides a secure and stable interface between the controller unit and the mounting surface, ensuring that the device remains firmly in place during operation. The design focuses on ease of installation, allowing for quick attachment without the need for complex tools or extensive modifications to the mounting area.

Installation Procedure

The installation process is straightforward and relies on a clip-based mechanism that locks the controller into the mounting bracket. Users should follow these steps to ensure a proper fit:

• Preparation: Ensure the mounting surface is flat and capable of supporting the weight of the ECL controller.

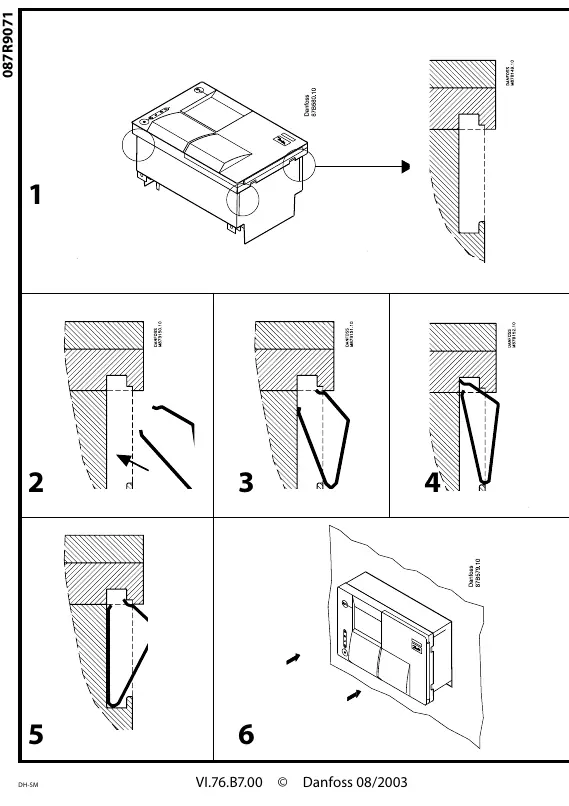

• Alignment: Position the ECL controller in alignment with the mounting clip mechanism as indicated in the provided diagrams.
• Engagement: Insert the controller into the clip interface. The design utilizes a spring-loaded or tension-based clip that snaps into the designated slot on the controller housing.
• Securing: Apply gentle pressure until the clip fully engages with the controller, ensuring an audible or tactile click that confirms the device is locked in position.
• Verification: Once installed, verify that the controller is stable and does not wobble or shift when touched.

Safety and Maintenance

While the DH-SM ECL Clip is a passive mechanical component, proper installation is critical for the safety and longevity of the electronic controller. Always ensure that the controller is disconnected from power sources before attempting any installation or maintenance work. Regularly inspect the mounting clip for signs of wear or damage, especially in environments subject to vibration or temperature fluctuations. If the clip appears loose or damaged, it should be replaced immediately to prevent the controller from becoming detached. The mounting kit is designed for indoor use and should be kept away from excessive moisture or corrosive environments to maintain the integrity of the plastic components. By following these simple guidelines, users can ensure a reliable and long-lasting installation for their Danfoss ECL control systems.
