Della 048-GM-48220 Ice Maker
Quick guide for the Della 048-GM-48220 Ice Maker. Includes setup instructions, operation panel explanation, maintenance tips, and troubleshooting for common issues like water shortage or ice full indicators.
Table of contents
Quick guide from the manual
To ensure optimal performance, place the ice maker on a flat, stable surface with at least 20cm of clearance around the air inlets and outlets. After moving the unit, wait 30 minutes before turning it on to allow the refrigerant to settle. Always clean the interior and water tank before the first use.
Components
The unit consists of the following main parts: transparent window, cover, operation panel, air outlet, air inlet, power cord, water outlet, ice storage box, evaporator, and ice making box.
Safety and Environment
Do not use the appliance if the power cord is damaged. Ensure the power source matches the requirements on the rating label. Keep the unit away from heat sources and direct sunlight. Do not use the ice maker with coal gas or other flammable gas leakage. The ambient temperature should not be lower than 5°C.
Operation
To start, fill the water tank with water. Press the power button to begin the ice-making cycle. The operation panel features indicators for 'Work', 'Ice Full', and 'Add Water'. Use the 'Select' button to choose the ice cube size (Large, Medium, Small). The 'Default' setting is usually Medium.
Cleaning and Maintenance
Unplug the appliance before cleaning. Use a damp cloth to clean both the interior and exterior. Drain the water tank by removing the water plug. Do not use organic solvents, boiling water, cleaning agents, strong acids, or strong alkalis. If the unit will not be used for a long time, drain the water tank completely and store it in a clean, dry place.
Troubleshooting
If the 'Water Shortage' light is on, add water to the tank. If the 'Ice Full' light is on, remove ice from the basket. If ice making is poor, check if the ambient temperature is too high or if the fan is blocked. If the power light is off, check the power connection.
Technical Parameters
The unit has an ice-making capacity of 12-15kg per 24 hours. The water tank capacity is 1.8L, and the ice storage capacity is 2.8kg. The unit operates on standard voltage as specified on the rating label.
Manufacturer information
Della
Practical help
Common problems
Ice making is not good
Check if the ambient temperature is too high or if the fan is blocked.
Water shortage light is on
Add water to the tank.
Ice full light is on
Remove ice from the storage basket.
Power light is off
Check if the power plug is connected correctly.
Before use
- Place on a flat, stable surface.
- Ensure at least 20cm of ventilation space around air inlets and outlets.
- Clean the interior and water tank.
- Wait 30 minutes after moving the unit before turning it on.
- Ensure the ambient temperature is above 5°C.
Specs in practice
- Ice making capacity
- 12-15kg per 24 hours.
- Water tank capacity
- 1.8L.
- Ice storage capacity
- 2.8kg.
Images and diagrams

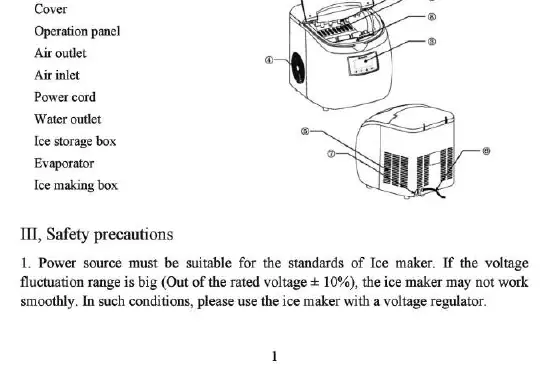

- The components diagram identifies the transparent window, cover, operation panel, air inlet/outlet, and internal ice-making components.
- The operation panel diagram shows the location of the Select button, Work indicator, Ice Full indicator, and Add Water indicator.
Model compatibility
- Requires standard power supply as indicated on the rating label.
- Not suitable for use in environments below 5°C.
