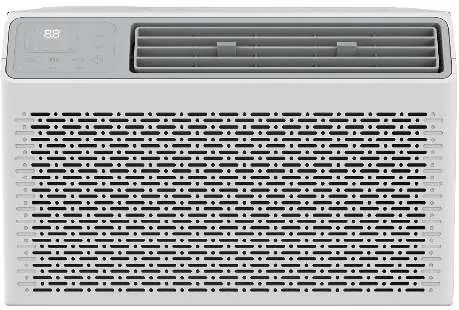

User Guide for Della 048-TL-W8KWD Window Air Conditioner

Quick guide from the manual

This air conditioner is designed for installation in standard double-hung windows. It uses R32 refrigerant, which is combustible; ensure the installation site is well-ventilated and free from open flames or heat sources. Always use a grounded 3-prong outlet and do not use extension cords. The unit must be tilted slightly backward (about 3 degrees) to ensure proper drainage of condensate.

Installation

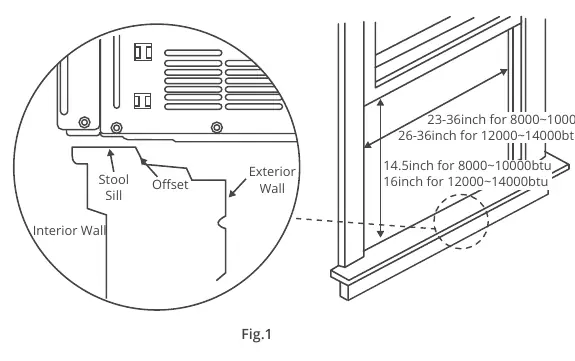

Before installing, ensure your window width is between 23" and 36" (for 8000-10000btu models) or 26" and 36" (for 12000-14000btu models). The lower sash must allow for sufficient vertical clearance.

• Top Rail Assembly: Attach the top rail to the unit using the provided 3/8" screws before placing the unit in the window.
• Side Panels: Slide the accordion panels into the cabinet rails. Ensure they are secure.
• Placement: Place the unit in the window opening. Close the window behind the top rail.
• Securing: Extend side panels to the window frame. Use the frame lock and 3/4" screws to secure the unit to the sill.
• Sealing: Use the provided foam seal between the upper and lower sashes to prevent air leaks.

Operation

The control panel allows you to manage cooling, fan speed, and modes. The digital display shows the room temperature or set temperature.

• Modes: Cycle through Cool, Dry, Fan, and Auto modes using the Mode button.
• Timer: Use the Timer button to program automatic start or stop times (0.5-24 hours).
• Eco Mode: The unit turns off once the room reaches the set temperature and turns back on when the temperature rises.
• Sleep Mode: Automatically adjusts temperature and fan speed for comfort during the night.
• Fan Speed: Choose between High, Med, Low, or Auto (in Cool mode).

Maintenance

Regular maintenance ensures efficient operation.

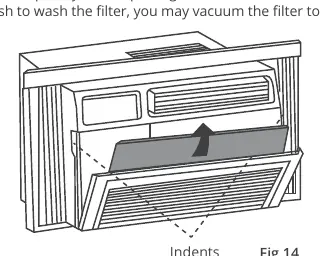

• Air Filter: Check at least once a month. Slide the filter out from the front right side, wash with warm water and mild soap, or vacuum. Let it dry completely before reinstalling.
• Cabinet Cleaning: Unplug the unit. Wipe the cabinet and front panel with a damp cloth using mild soap. Do not use harsh cleaners or wax.
• Winter Storage: Remove the unit from the window, drain any remaining water, and store it in the original box or cover with plastic.

Troubleshooting

If the unit does not start, check if it is plugged in, if the fuse is blown, or if the circuit breaker is tripped. If the unit is not cooling, ensure the filter is clean, airflow is not blocked by curtains or furniture, and the thermostat is set correctly. If water is dripping inside, ensure the unit is tilted slightly downward toward the rear.
