User Manual for Della 048-TL-W8KW Mini Compact Air Conditioner

Quick guide from the manual

This air conditioner is designed for window installation. Before use, ensure you have a grounded 3-prong outlet. Do not use extension cords or plug adapters. The unit uses R32 refrigerant, which requires specific handling and safety precautions. Always ensure the unit is tilted slightly (about 3 degrees) toward the outside to allow for proper condensate drainage.

Installation and assembly

Before installing, ensure your window meets the width requirements: 23-36 inches for the 8K model, or 26-36 inches for the 10K/12K models. Ensure the lower sash allows for at least 14.5-16 inches of vertical clearance.

1. Assemble the top mounting rail to the unit using the provided screws.
2. Place the unit into the window opening, ensuring the frame is against the window sill.
3. Extend the side accordion panels to fit the window frame.
4. Secure the frame lock between the frame extensions and the window sill using the provided screws.
5. Drive locking screws through the frame holes into the window sash to secure the unit.
6. Install the sash lock to secure the lower window sash in place.
7. Insert the foam seal into the space between the upper and lower sashes.

Using your air conditioner

The unit can be controlled via the electronic control panel or the remote control. The digital display shows the set temperature or timer settings.

• Cool Mode: Cools the room and reduces humidity.
• Dry Mode: Reduces air humidity.
• Fan Mode: Operates as a fan only; speed can be adjusted (Hi, Med, Lo).
• Auto Mode: Automatically selects fan speed and operation mode based on room temperature.
• Eco Mode: Turns the unit off once the room reaches the set temperature and cycles the fan to save energy.
• Sleep Mode: Adjusts temperature and fan speed for comfort during the night.
• Timer: Allows for automatic start or stop within 0.5 to 24 hours.

Care and cleaning

Regular maintenance is essential for efficient operation.

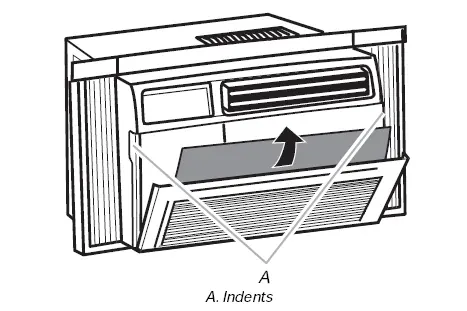

• Air Filter: Check at least once a month. Slide the filter out from the front right side of the unit. Wash with warm water and mild liquid soap, or vacuum to remove dust. Ensure it is completely dry before reinstalling.
• Cabinet Cleaning: Unplug the unit before cleaning. Wipe the cabinet with a damp cloth and mild soap. Never use harsh cleaners, wax, or polish.
• Winter Storage: Remove the unit from the window, clean it, and store it in the original box or cover with plastic.

Troubleshooting

If you encounter issues, check the following:

• Unit won't start: Ensure it is plugged in, the circuit breaker is not tripped, or the LCDI plug needs to be reset.
• Not cooling: Check for airflow obstructions (curtains, blinds), ensure the filter is clean, and verify the thermostat is set correctly.
• Water dripping inside: Ensure the unit is tilted slightly toward the outside for drainage.
• Remote not working: Check battery orientation or replace the batteries.
