User Manual for Dimplex ZWU 06E Central Control Unit
Comprehensive user guide for the Dimplex ZWU 06E central control unit. Includes installation instructions for technicians, commissioning steps, wiring diagrams, and user operation details for heating control.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The ZWU 06E is a central control unit designed to manage the charging of underfloor storage heating systems and electric storage heaters. This document provides essential information for both technicians and end-users. Key procedures include professional installation, system commissioning, and daily operation via the touchscreen interface. Please note that installation and repairs must be performed by a qualified technician to ensure safety and compliance with local regulations.
Device description
The ZWU 06E controls heating charging based on outdoor temperature, adjusters, and control signals. It features a timer function for forward, backward, and spread control, and supports various external sensors. The unit is designed for series mounting in distribution boards.
Installation
Installation must be carried out by an authorized technician in accordance with local utility and VDE regulations. The unit requires 3 modular spaces in a distribution board. The external NTC sensor should be installed at least 2 meters above the floor, preferably in the main zone of use, avoiding direct sunlight and heat sources. Cables for SELV signals (external sensor, DC control signal) must be routed separately from mains power cables.
Commissioning
Initial commissioning is performed via the Menu -> Installer -> Startup path. Technicians must configure the application range (CCU or ACU), charging model (Classic or Intelligent), and system parameters. Factory settings are provided for quick setup, but adjustments should be made to match the specific heating system configuration. A commissioning certificate is included in the manual to document settings.
Operation
Users can manage the heating system through the Operation menu. Available operating modes include Standby (frost protection only), Manual (heat level 1.0 to 5.0), and Automatic (timer-based control). Users can also configure week programs and holiday programs to optimize heating performance and energy consumption.
User interface
The device features a touchscreen interface. After pressing the menu key, users can navigate using the four function keys displayed at the bottom of the screen. Common functions include changing entries, saving settings, and navigating menu levels. If the menu does not receive a response to a data query, the display will show '~~~'.
Manufacturer information
Dimplex
Practical help
Common problems
Display shows '~~~'
The menu is not receiving a response to a data query.
System not heating correctly
Verify the external sensor connection and ensure settings match the system type.
Power cut
The device has a power reserve of approximately 6 hours for the runtime and clock.
Before use
- Ensure installation is performed by an authorized technician.
- Verify external sensor is installed at least 2m above the floor.
- Check that the sensor is not exposed to direct sunlight or heat sources.
- Confirm wiring complies with local utility company requirements.
- Set correct date and time upon first startup.
Specs in practice
- Connection voltage
- AC 230V ~ 50/60 Hz.
- Power reserve
- Approx. 6 hours for runtime and clock.
- External sensor
- NTC sensor, cable extendable up to 100m.
- Protection class
- IP 20.
Images and diagrams

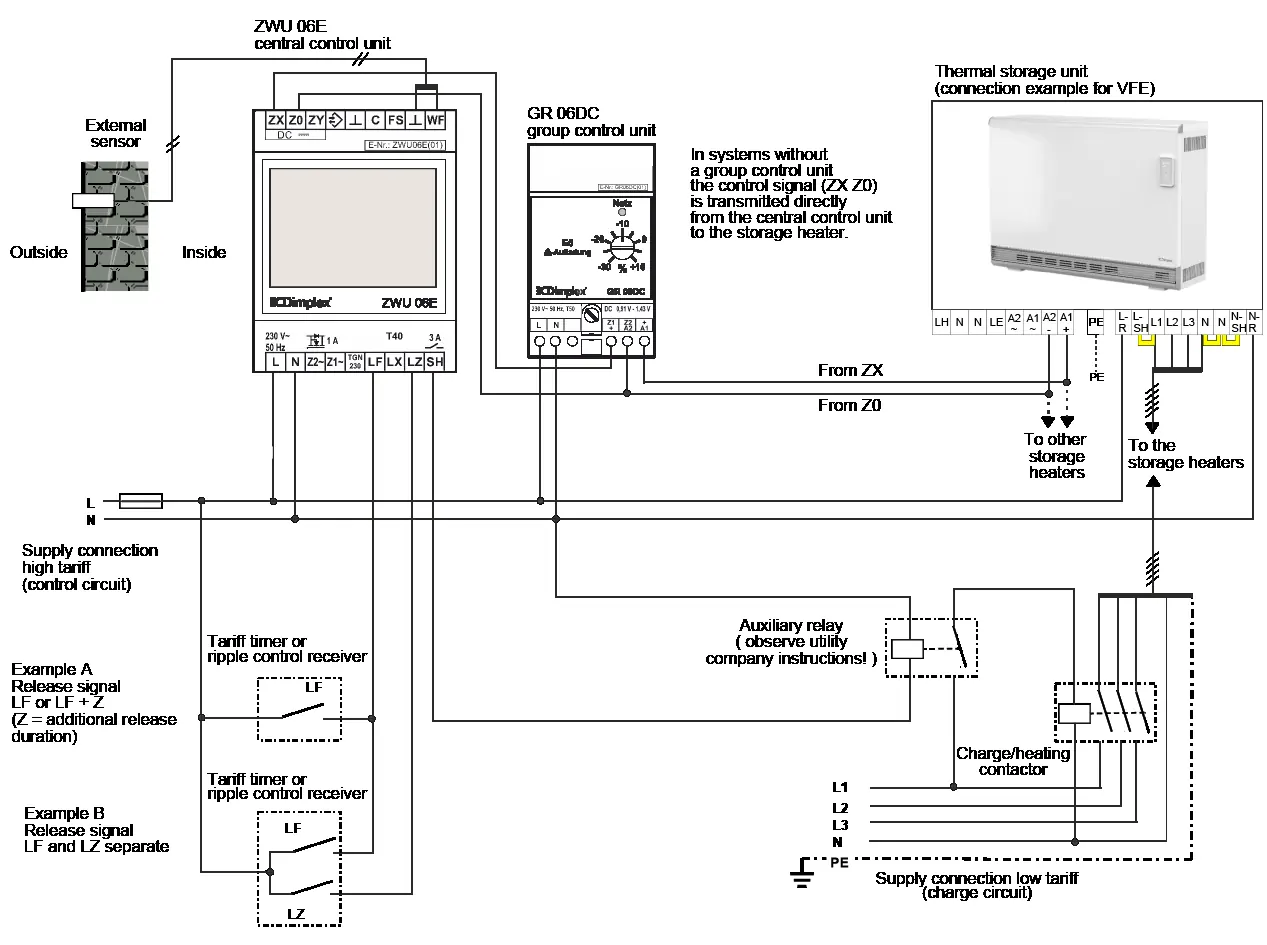

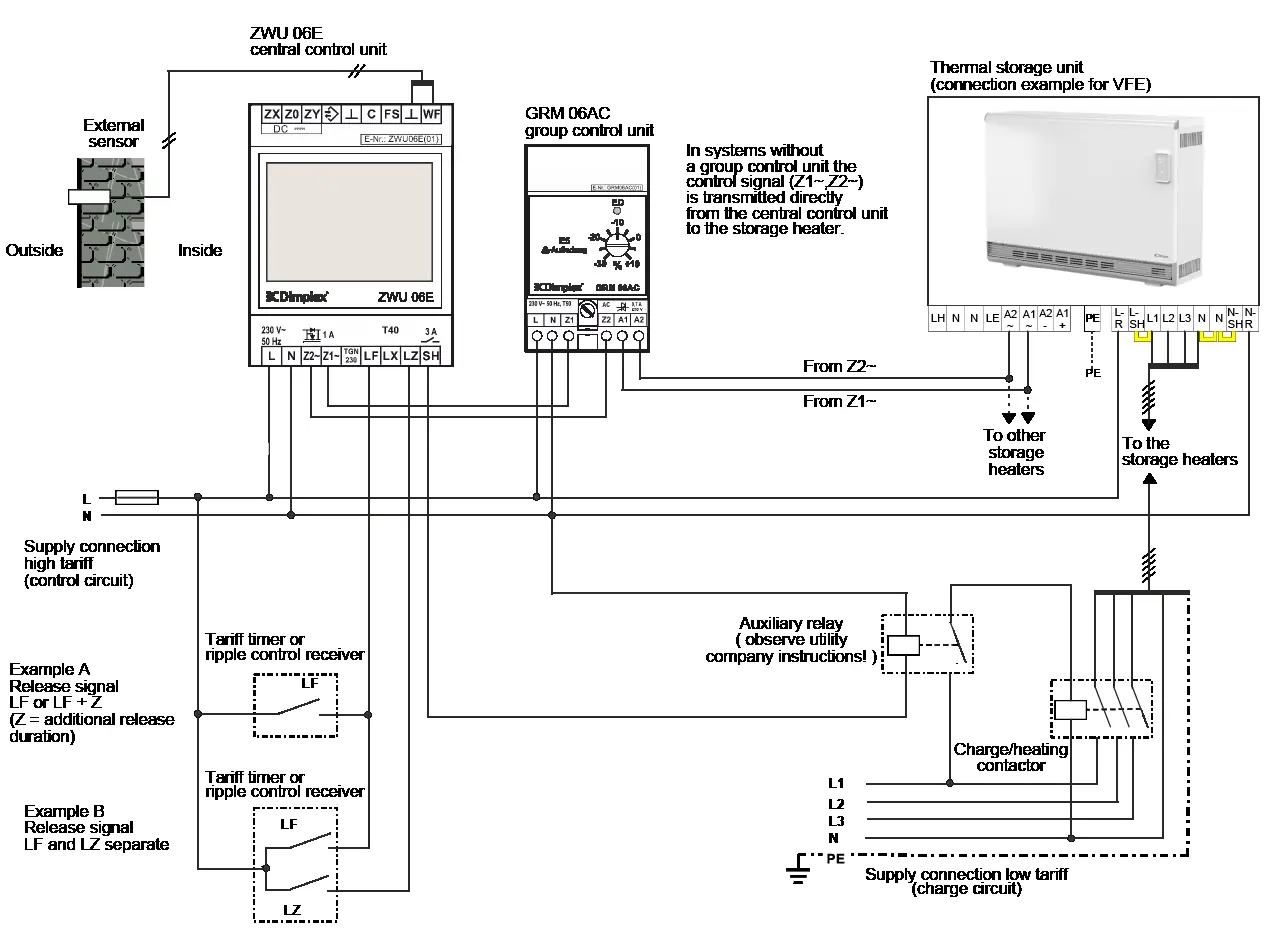

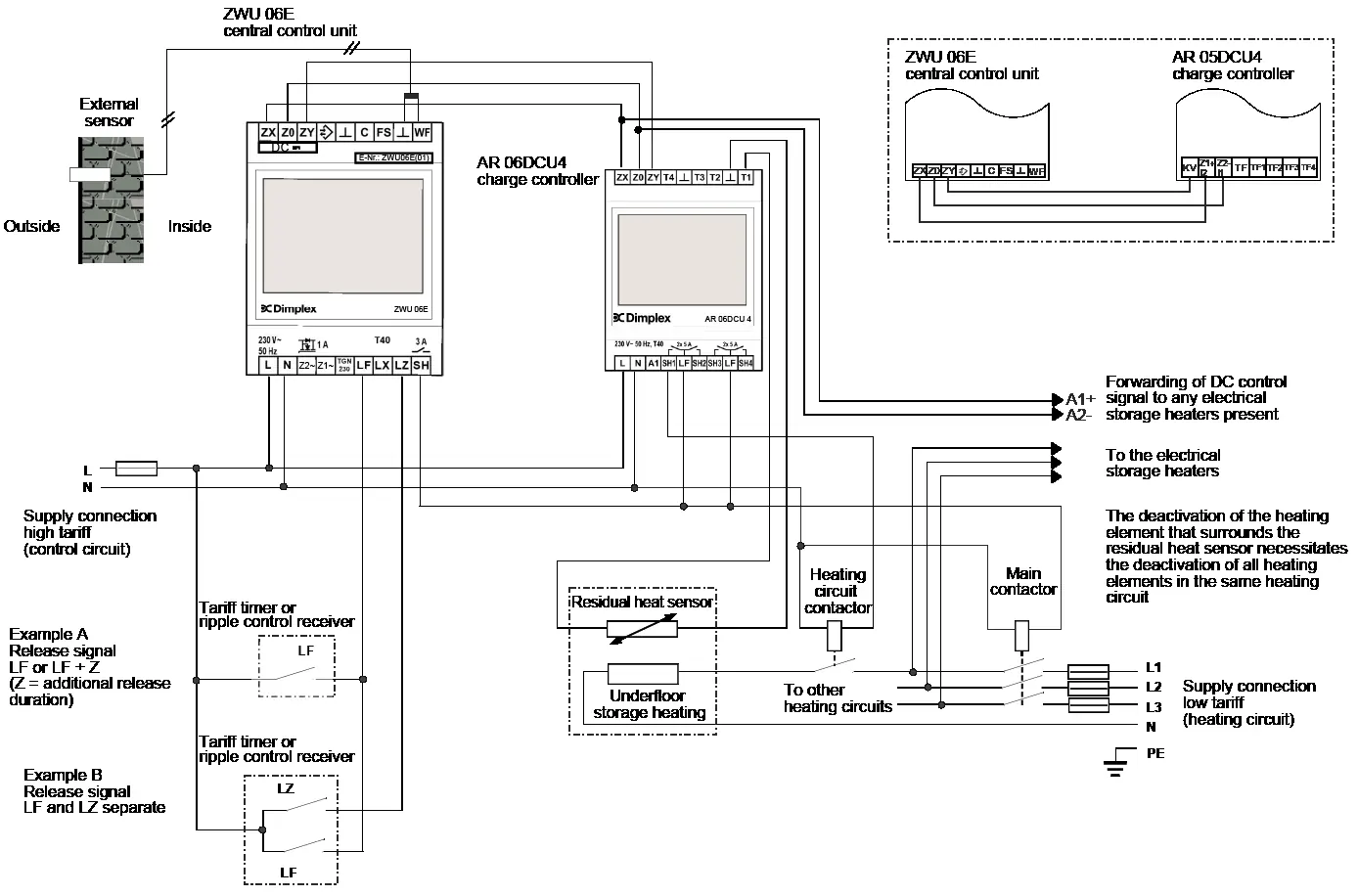

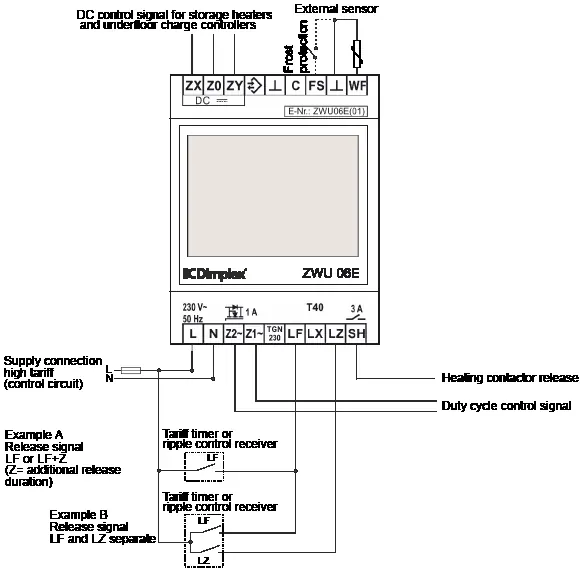

- Wiring diagrams show connections for storage heaters and underfloor heating systems.
- Sensor installation diagrams illustrate correct placement in various wall types.
Model compatibility
- Supports various external sensors (DIN EN 50350 standard, tekmar, etc.).
- Compatible with up to 20 charge controllers.
