User Manual for Draper 6" Clip-On Fan 08710

Quick guide from the manual

This document provides instructions for the Draper 6" Clip-On Fan (Stock No. 08710). The fan is designed for air circulation in home or office environments. Before use, ensure the fan is placed on a firm, stable surface and that the power supply matches the 230V rating. Always disconnect the power before performing any adjustments or cleaning.

Safety Information

Warning: Failure to follow these instructions could lead to serious personal injury.

• Keep out of the reach of children.
• Ensure the fan is used in an area free from loose furnishings, clothing, or curtains that could be sucked into the fan inlet.
• Do not leave the fan running unattended.
• Never insert fingers, pencils, or any other object through the protective grille while the fan is running.
• Disconnect the fan from the power supply when moving it to another location.
• Do not use the fan near an open window, as rain can create an electrical hazard.
• If the power supply cable becomes damaged, it must be replaced immediately by the manufacturer or an authorized agent.

Technical Description

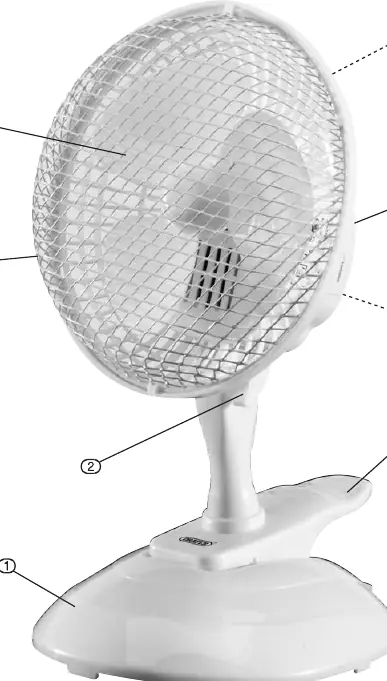

The fan consists of the following main components:

• Clip-on base: The primary stand for the fan.
• Tilt adjustment knob: Allows for vertical angle adjustment.
• Front and Rear grilles: Protective covers for the blades.
• Speed control knob: Located on the rear of the fan.
• Spring clip: Used for attaching the fan to surfaces.

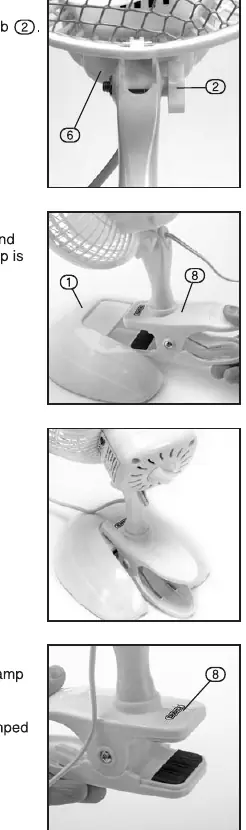

Assembly

1. Joining fan with clip: Attach the spring assembly to the fan body using the tilt adjustment knob.
2. Using clip-on base: Firmly press the rear of the clip and engage it in the slot of the base. Ensure the clip is correctly positioned.
3. Using spring clip: Firmly press the rear of the clip and clamp it to a firm, stable surface. Ensure the fan is secure to prevent it from falling.

Operation

Speed Control

The speed is controlled by rotating the knob located on the rear of the fan:

• 0: OFF
• 1: LOW
• 2: HIGH

Tilting Fan

The air flow can be adjusted upward or downward by loosening the tilt adjustment knob, adjusting the vertical angle as desired, and re-tightening the knob securely.

Cleaning and Maintenance

Warning: Ensure the fan is switched off and disconnected from the mains before removing the grille.

1. Disassemble the fan by carefully removing the front protective grille to access the fan blade.
2. Clean components with a dry or damp soft cloth. Do not use detergents or sprays, as these will damage the motor/switch assembly.
3. Ensure the protective grille is securely in place before using the fan after cleaning.

Technical Specifications

• Rated voltage: 230V
• Rated frequency: 50Hz
• Rated input: 15W
• No. of speeds: 2
• Dimensions (WxHxD): approx. 170 x 320 x 205mm
• Weight (fan only): 750g

Disposal

Do not dispose of this product with domestic waste. Contact your local authority for details of collection schemes in your area. Do not incinerate or abandon the product in the environment.

Contact Information

For aftersales servicing or warranty repairs, contact the Draper Tools help line at +44 (0) 23 8049 4344. General enquiries can be made at (023) 8026 6355. Website: drapertools.com. E-mail: [email protected].
